Before VIN 343314

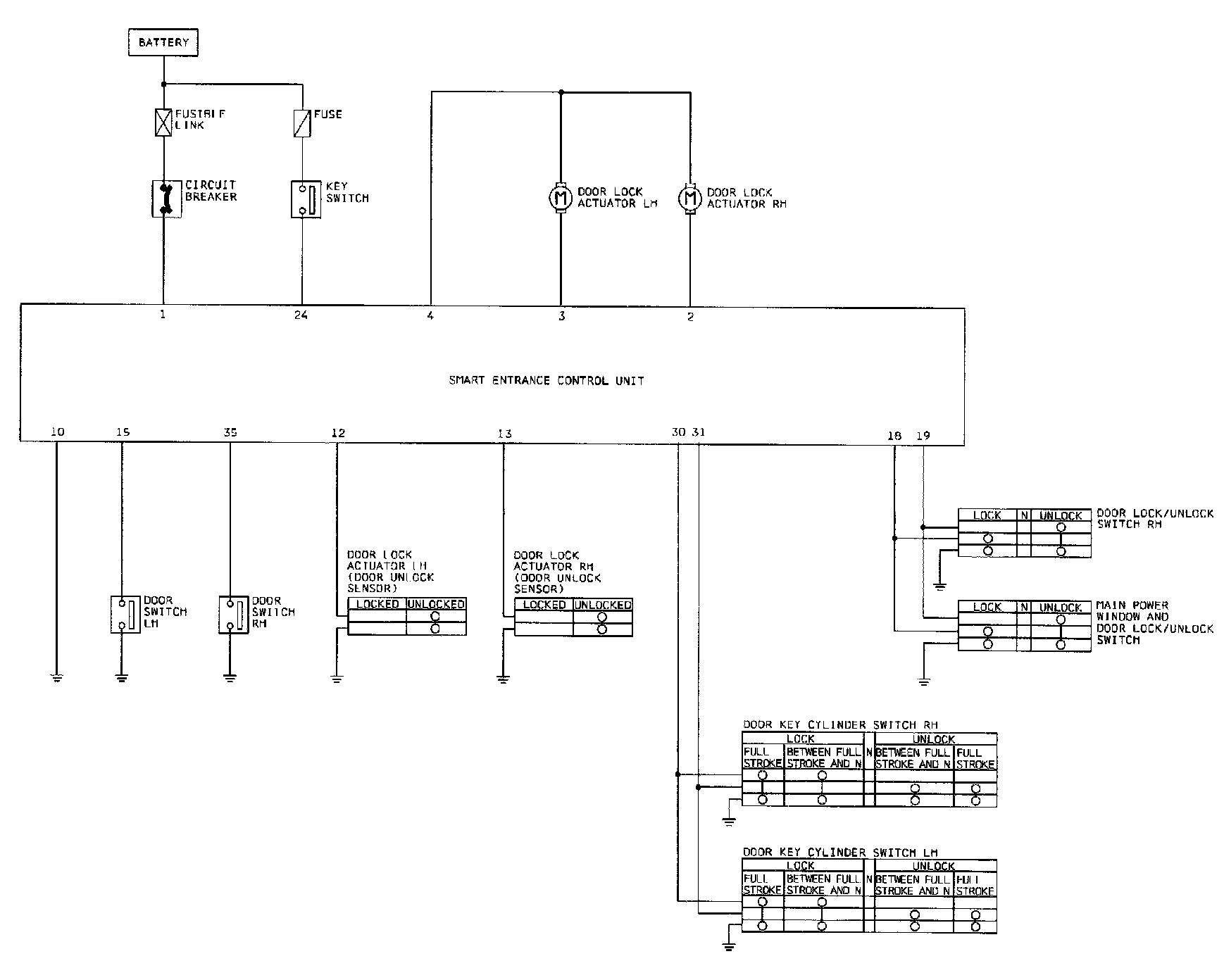

Schematic

Circuit Diagrams

EL-D/LOCK-01:

(Part 1 of 3)
Fuse Block (J/B)
Key Switch
Circuit Breaker
Smart Entrance Control Unit
Door Switch (LH & RH)
Main Power Window and Door Lock/Unlock Switch
Door Lock And Unlock Switch RH

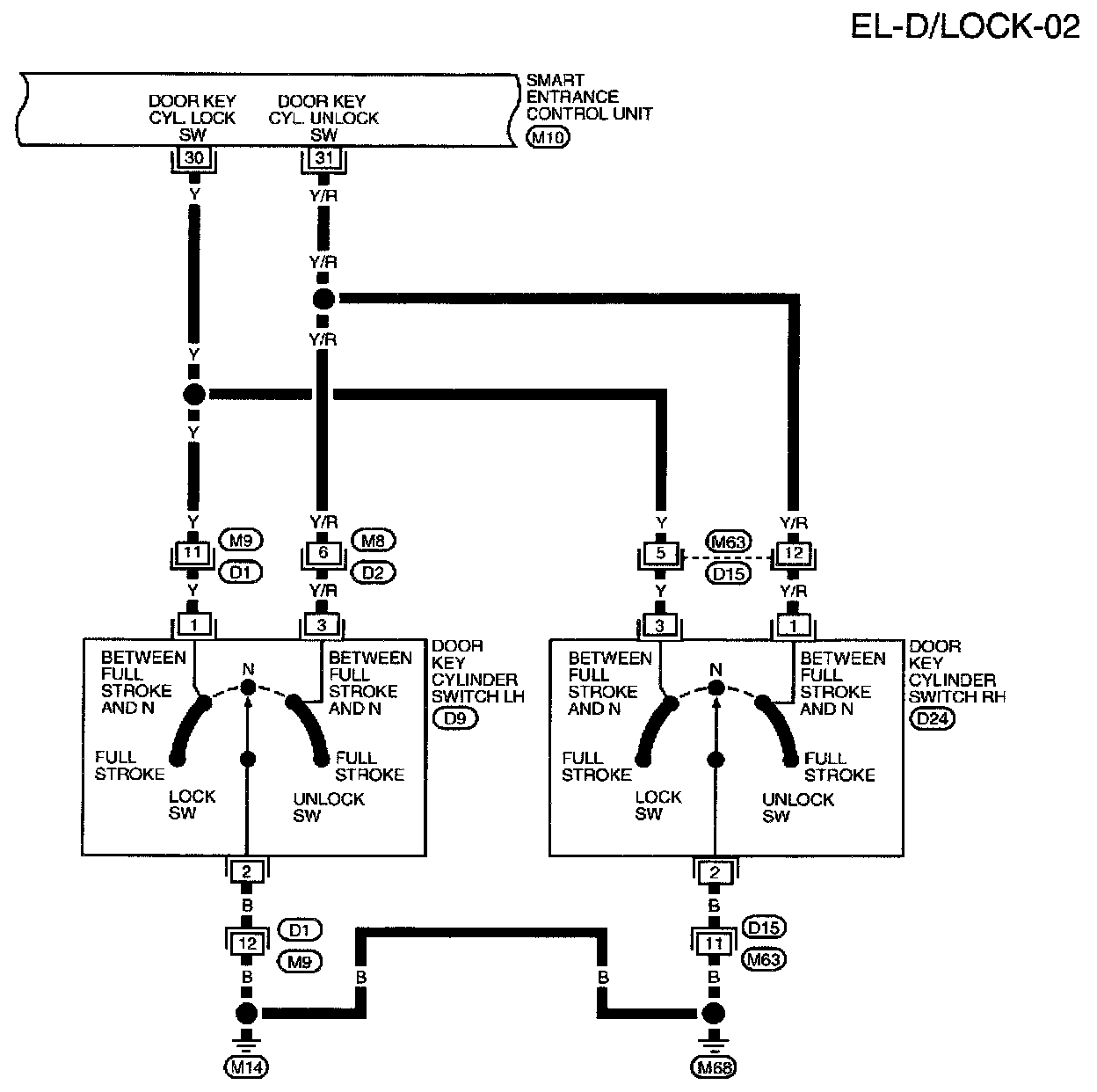

EL-D/LOCK-02:

(Part 2 of 3)
Smart Entrance Control Unit
Door Key Cylinder Switch (LH & RH)

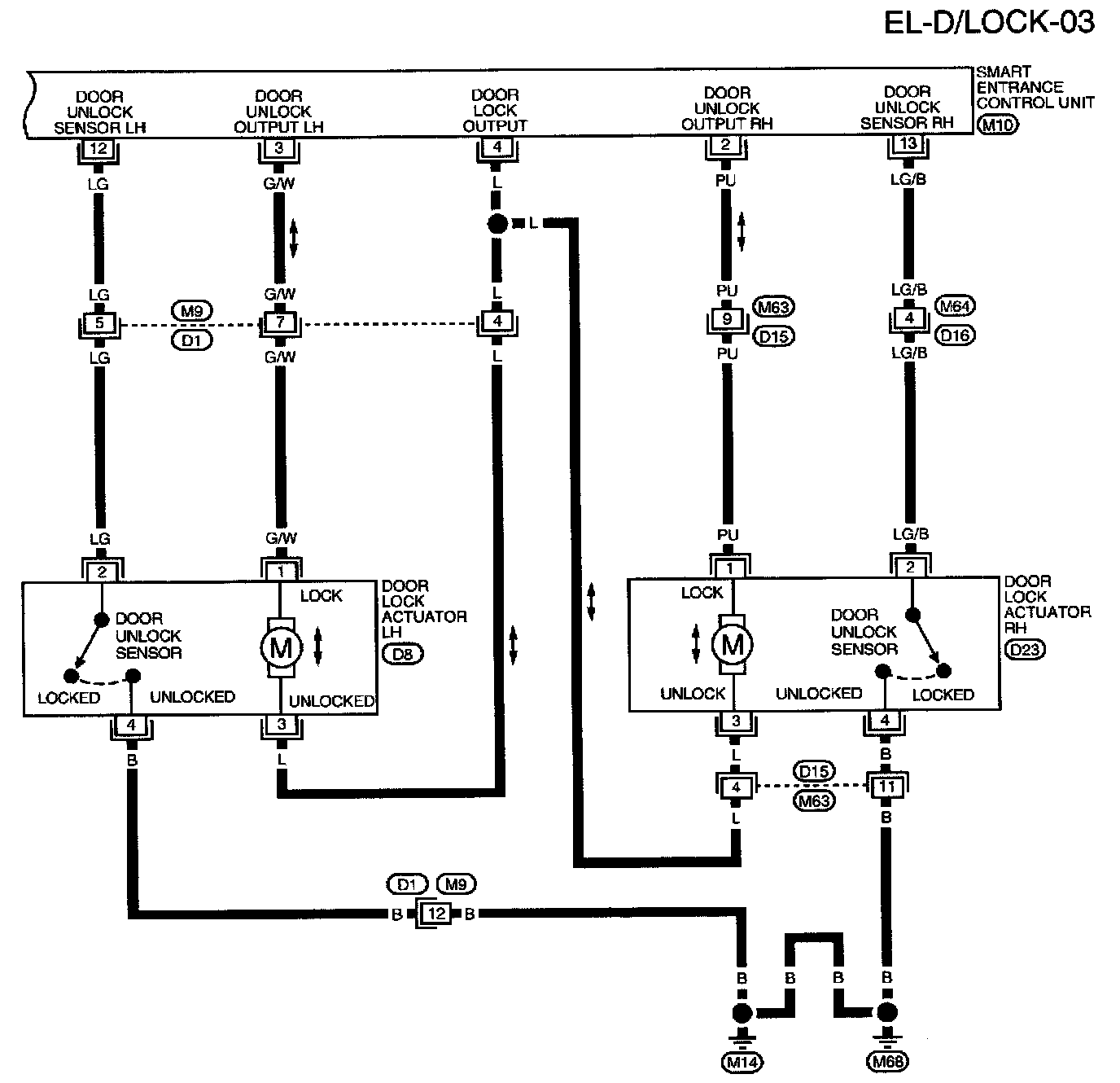

EL-D/LOCK-03:

(Part 3 of 3)
Smart Entrance Control Unit
Door Lock Actuator (LH & RH)

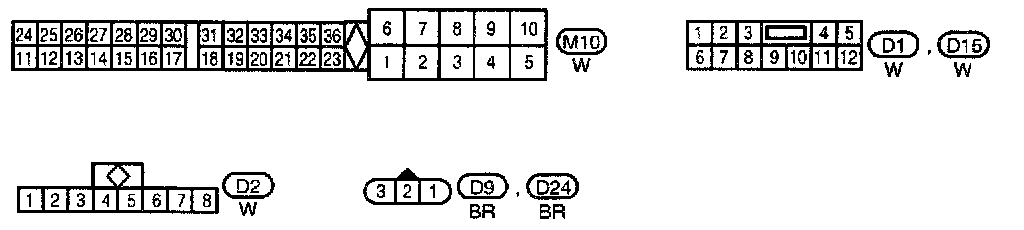

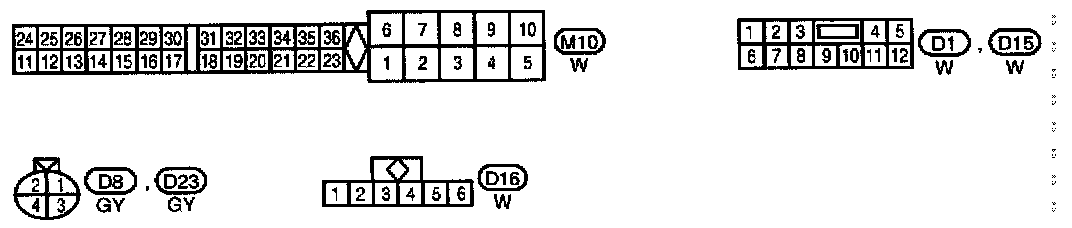

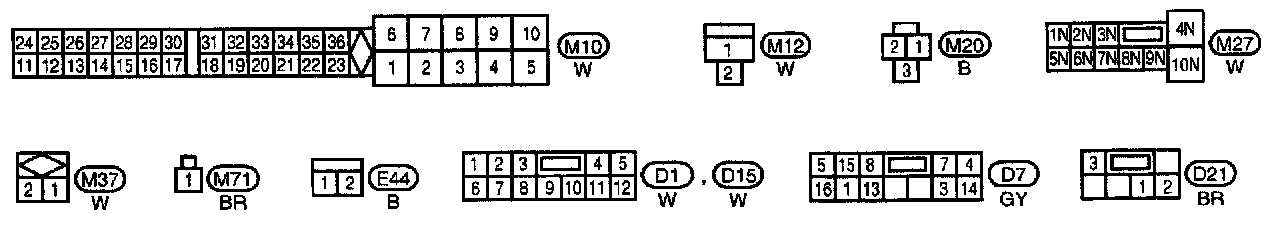

Circuit Connectors
