Pinout Values and Diagnostic Parameters
AUDIO UNITAll voltage inspections are made with:
- Ignition switch ON or ACC
- Audio unit ON
- Audio unit connected (if removed for inspection, supply a ground to the case using a jumper wire).

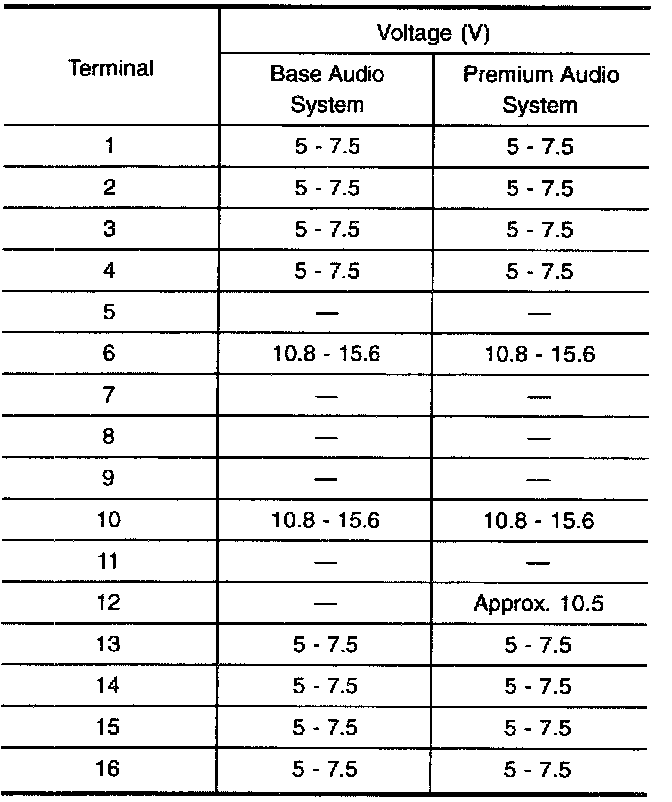

AUDIO UNIT VOLTAGES
SUBWOOFER AMPLIFIER VOLTAGES
