Before VIN 343314

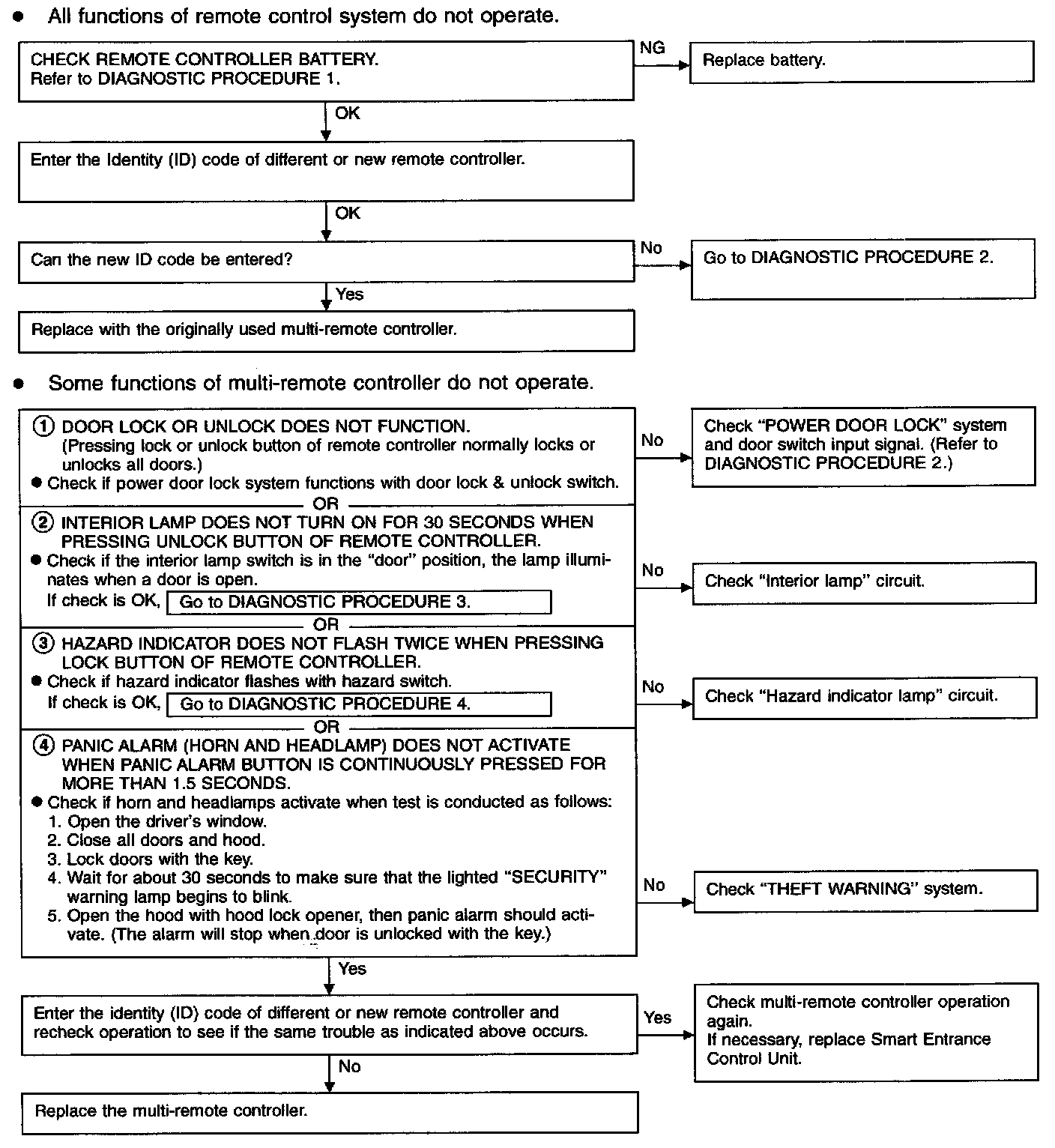

TROUBLE SYMPTOM

NOTE:
- The unlock and panic alarm operation of the multi-remote control system does not activate with the ignition key inserted in the ignition key cylinder.
- The lock operation of the multi-remote control system does not activate with the key inserted in the ignition key cylinder or if one of the doors is opened.

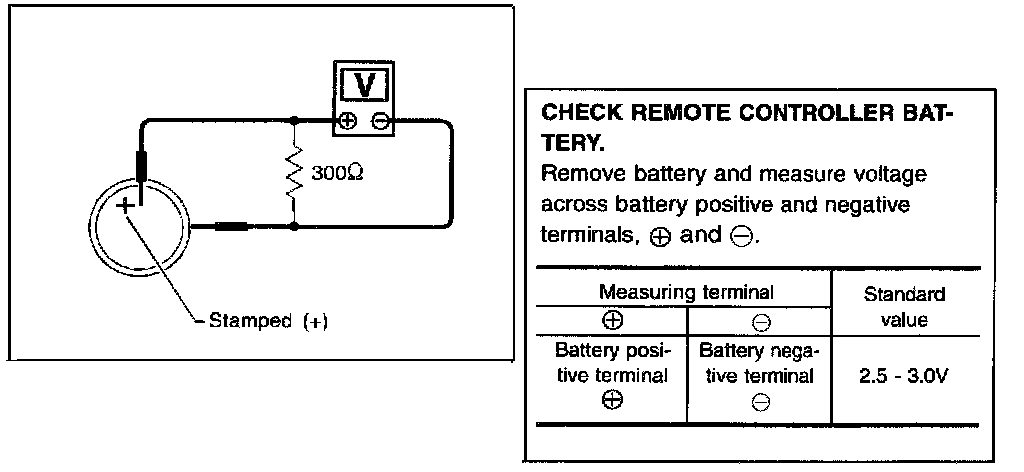

Diagnostic Procedure 1
Check remote controller battery.
NOTE: Remote controller does not function if battery is not set correctly.

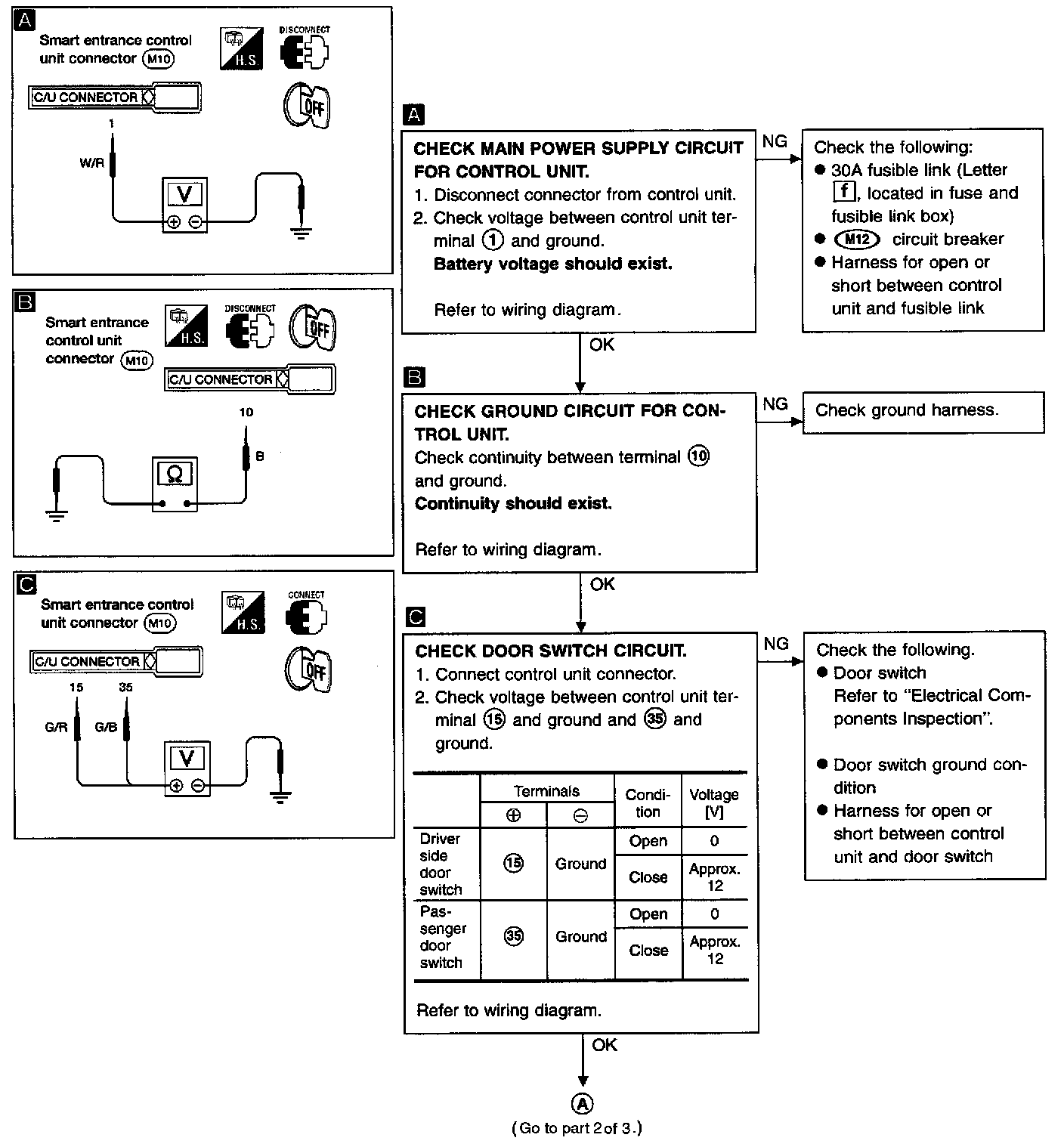

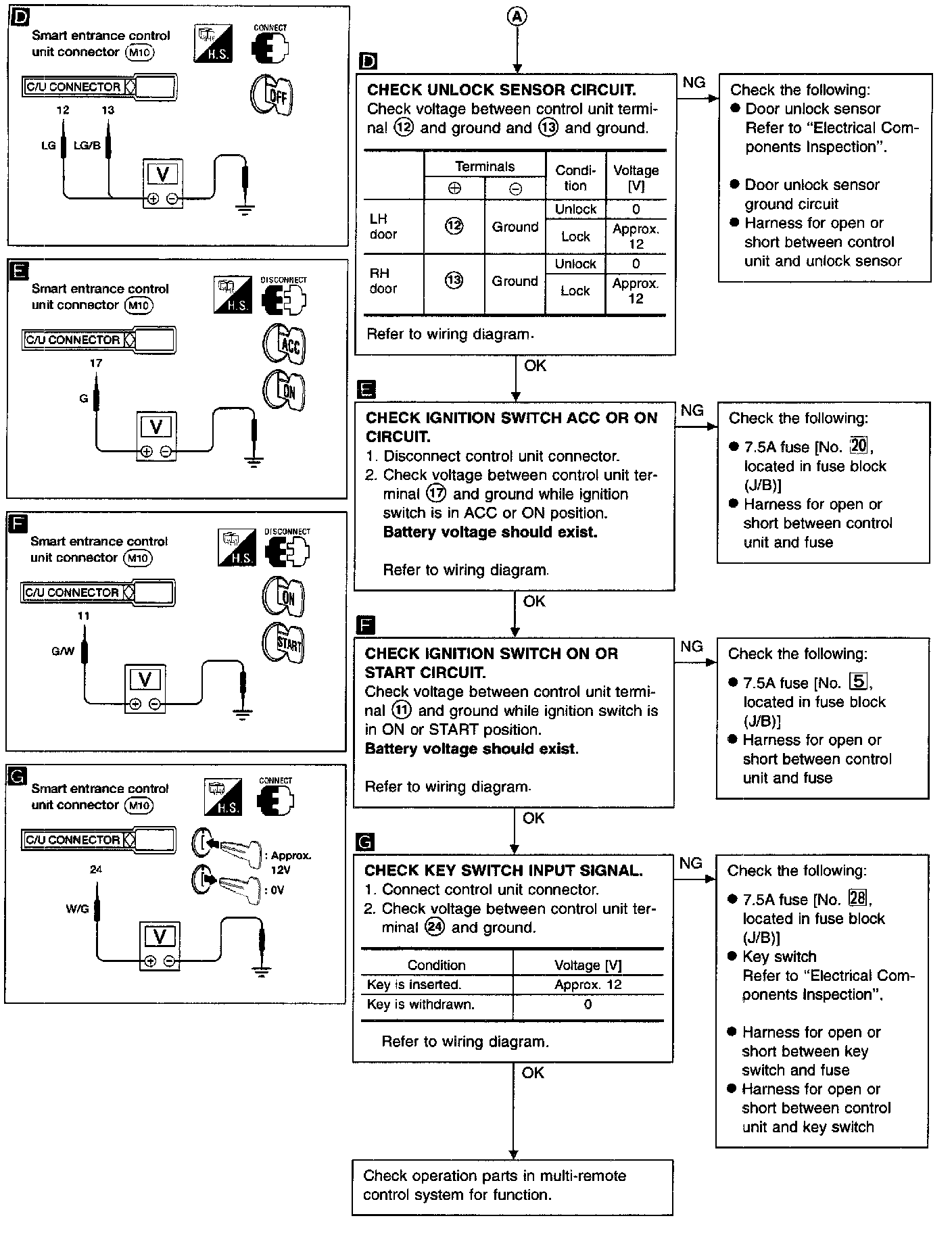

Diagnostic Procedure 2
All remote controls do not function even if remote controller is operated properly.

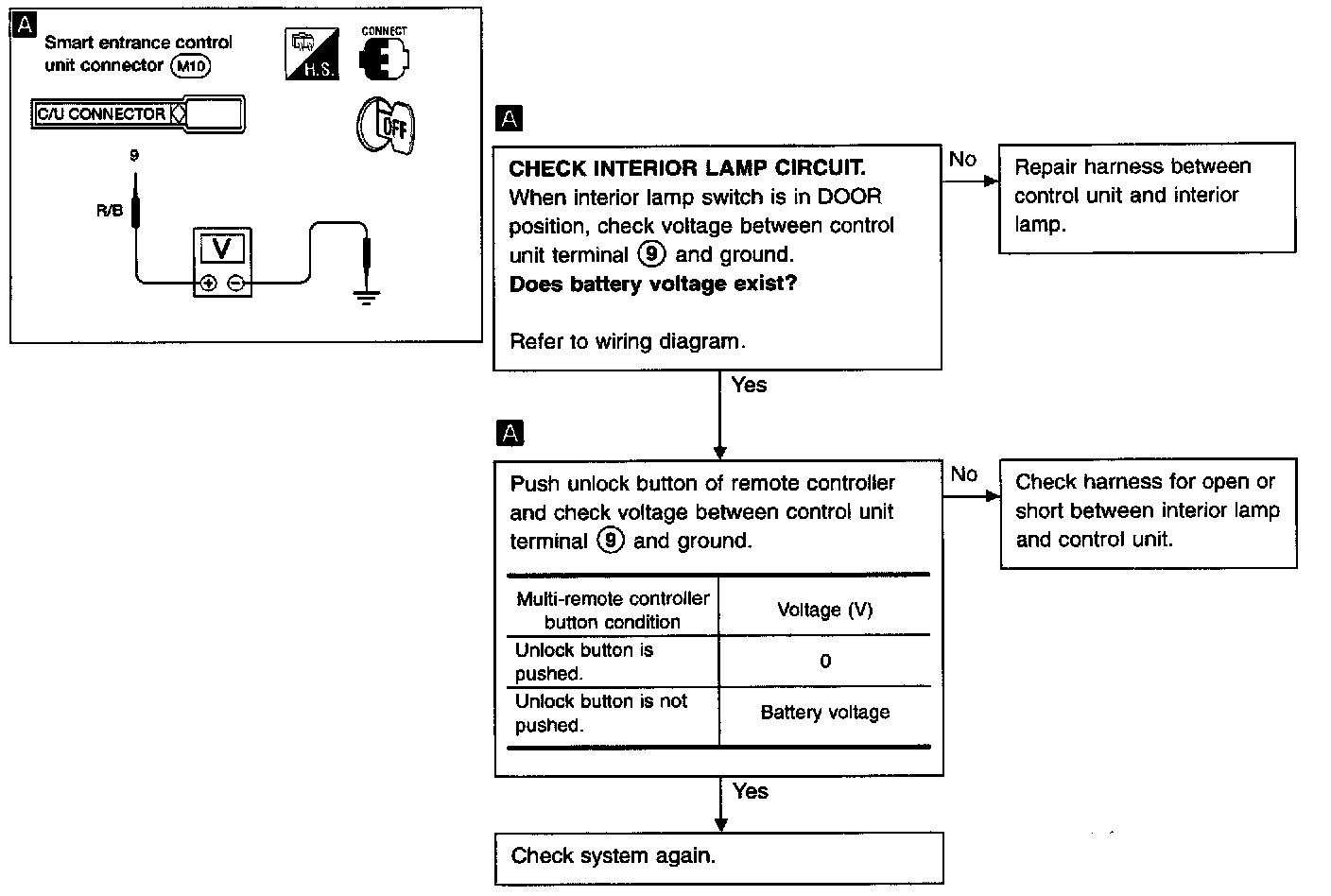

Diagnostic Procedure 3
Interior lamp does not turn on for 30 seconds when pressing unlock button of remote controller. Everything else functions.

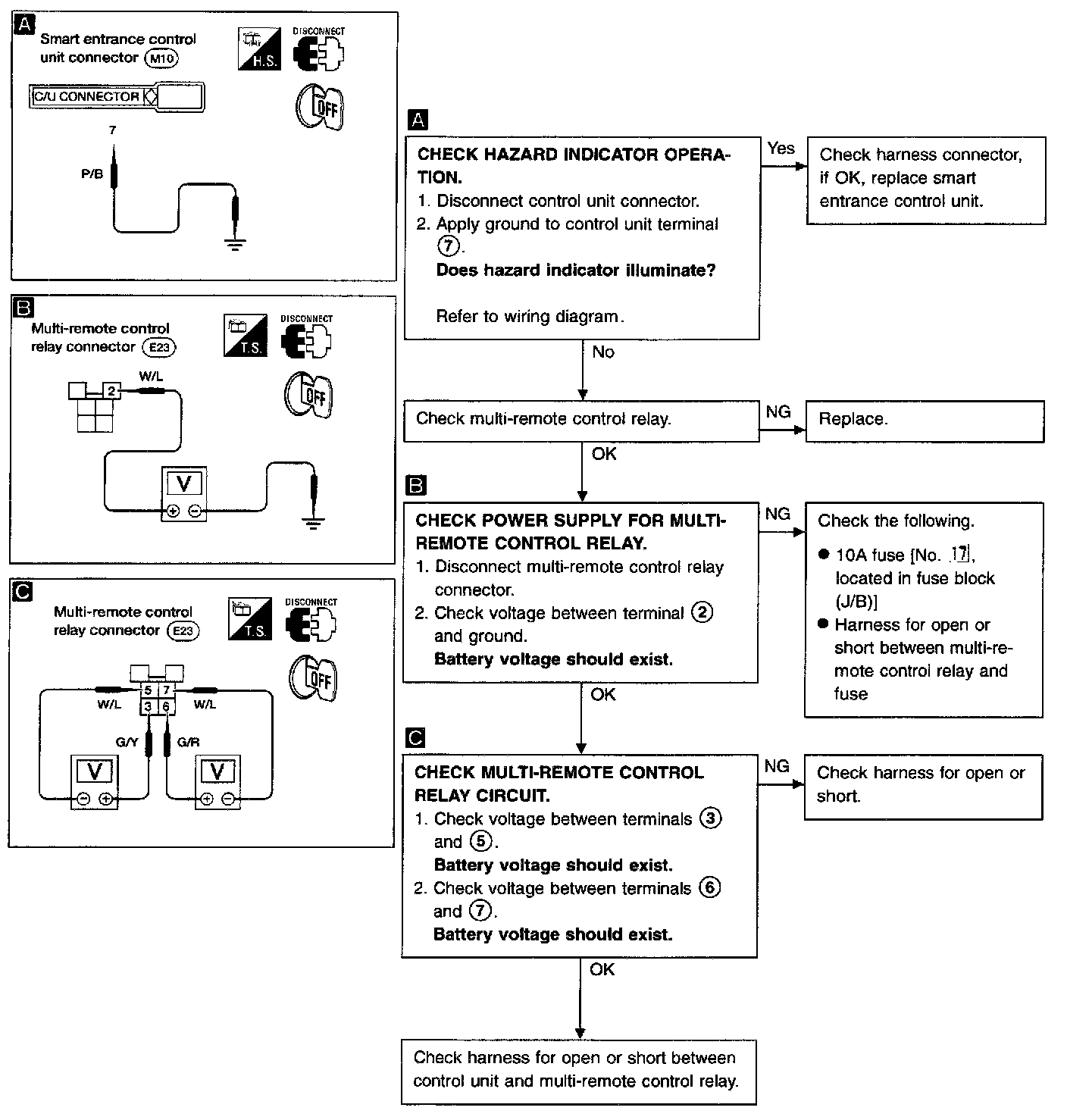

Diagnostic Procedure 4
Hazard indicator does not flash twice when pressing lock button of remote controller. Everything else functions.
