Except Models Beginning With Serial # 343314

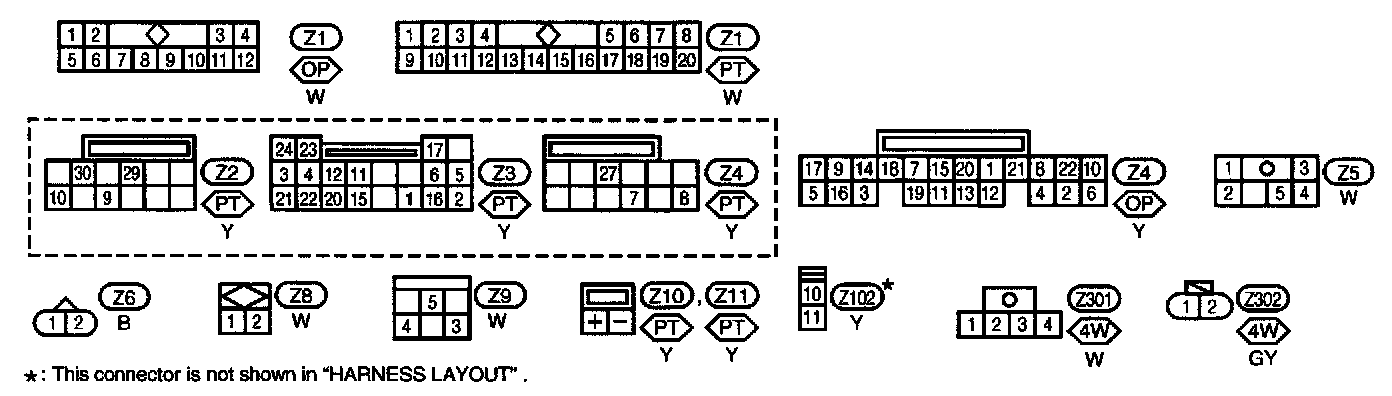

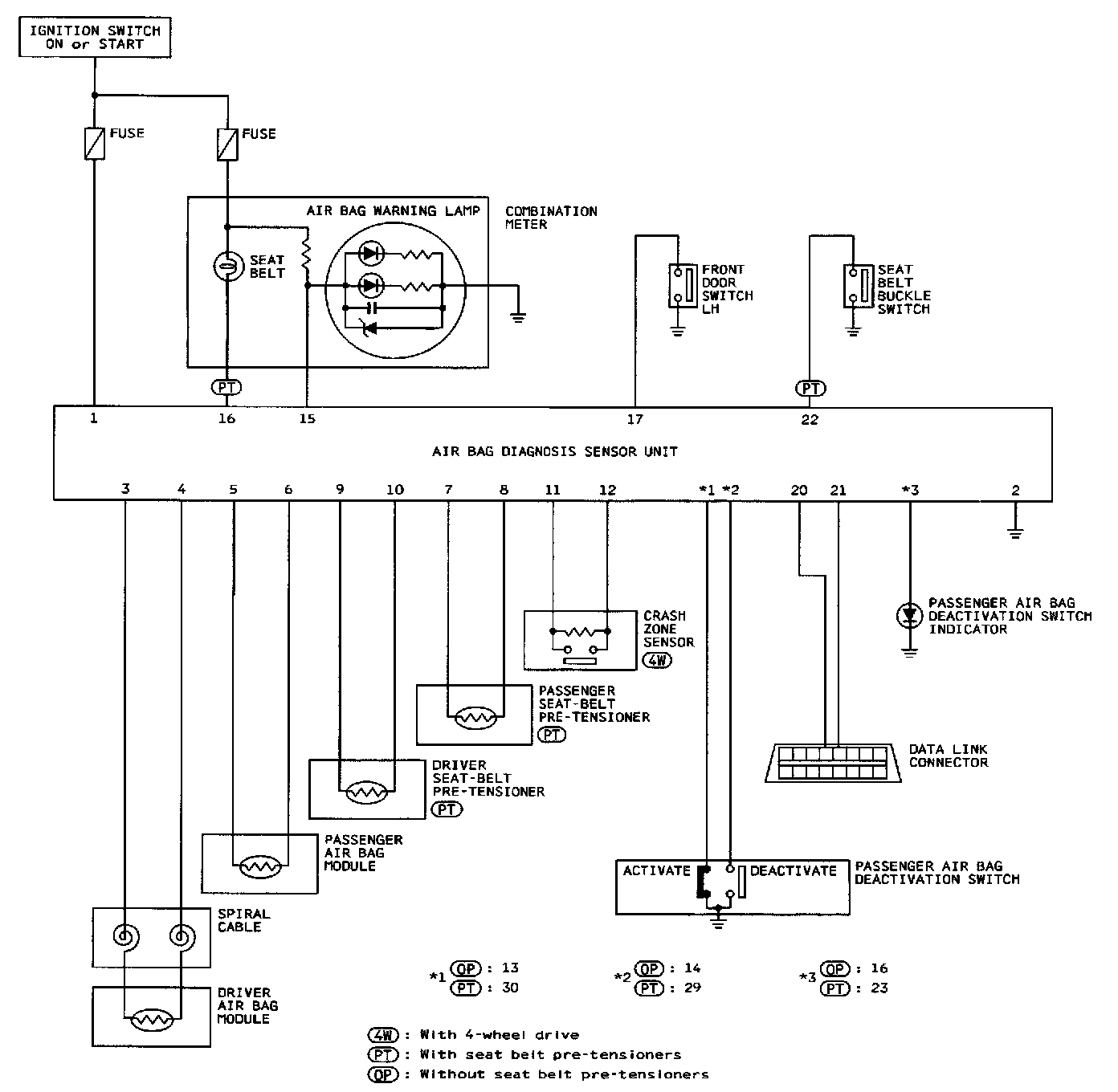

Schematic

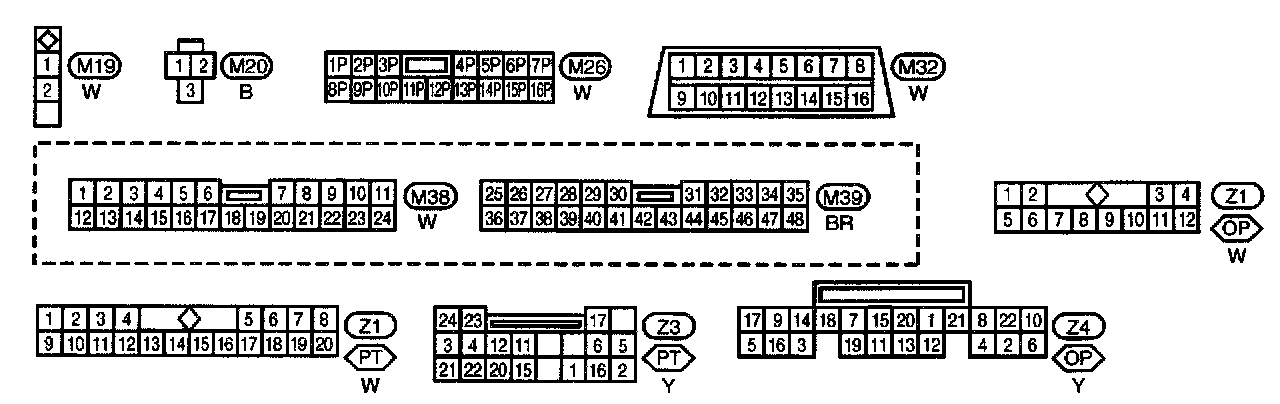

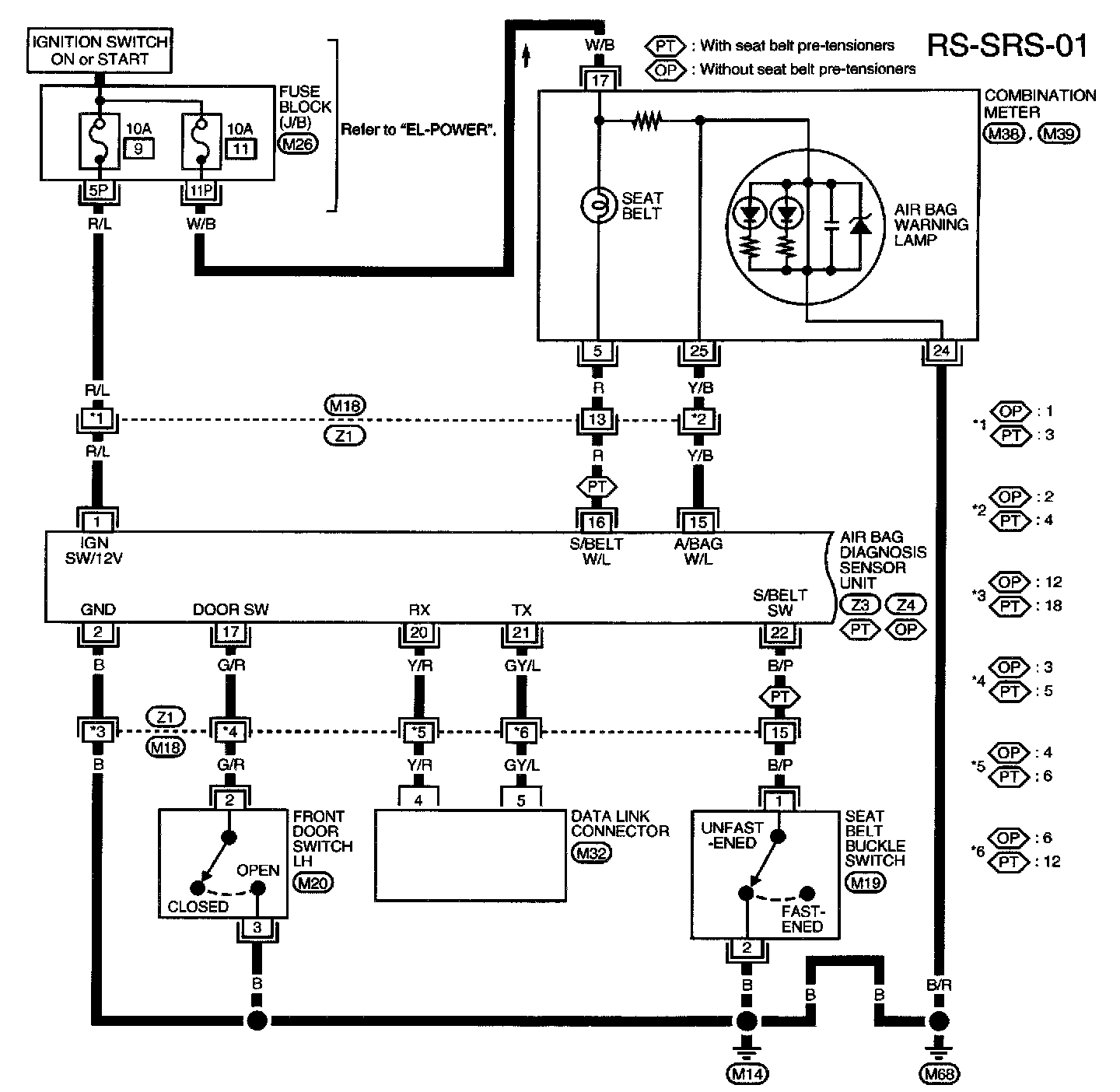

(Part 1 of 2)
Air Bag Diagnosis Sensor Unit
Combination Meter
Data Link Connector
Fuse Block (J/B)
Front Door Switch LH
Ignition Switch ON or START
Seat Belt Buckle Switch




(Part 2 of 2)
Air Bag Diagnosis Sensor Unit
Crash Zone Sensor
Driver Seat Belt Pre-Tensioner
Driver Air Bag Module
Passenger Air Bag Module
Passenger Seat Belt Pre-Tensioner
Passenger Air Bag Deactivation Switch
Passenger Air Bag Deactivation Switch Indicator
Spiral Cable

Circuit Diagrams
