Nissan-Datsun Truck
>>
2000
>>
Frontier XE Crew Cab 4WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Models With Intermittent Wiper
Models With Intermittent Wiper

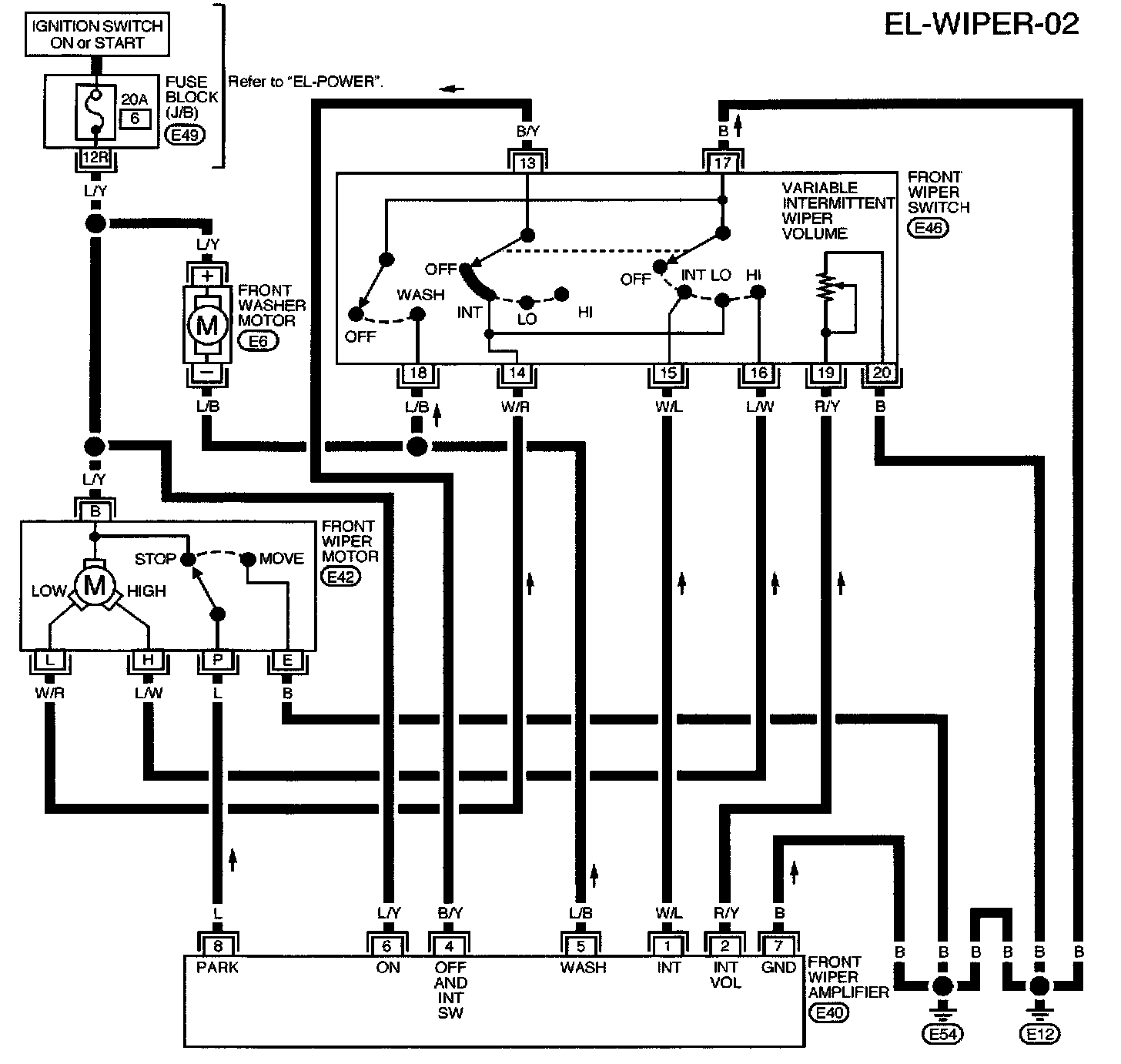

EL-WIPER-02:
Circuit Diagram

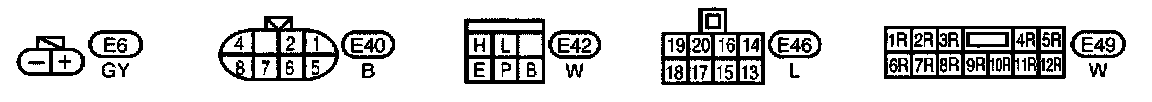

Circuit Connectors
