Beginning With VIN 343314











WASHER NOZZLE ADJUSTMENT

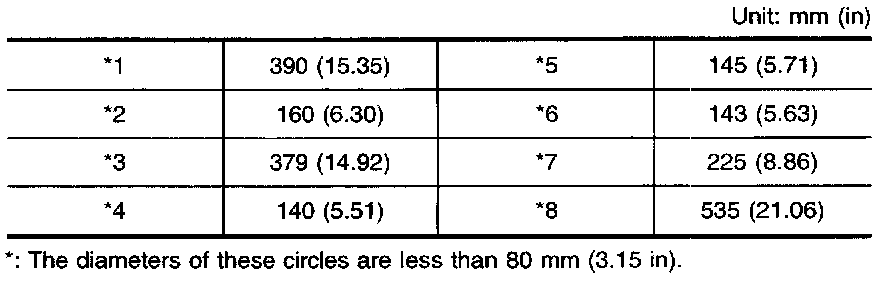

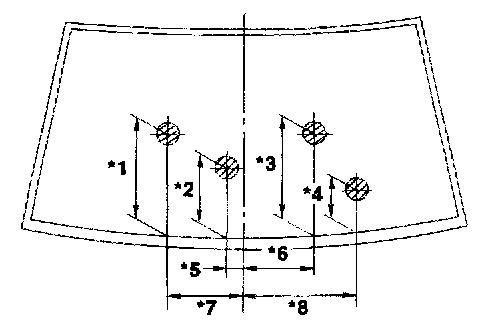

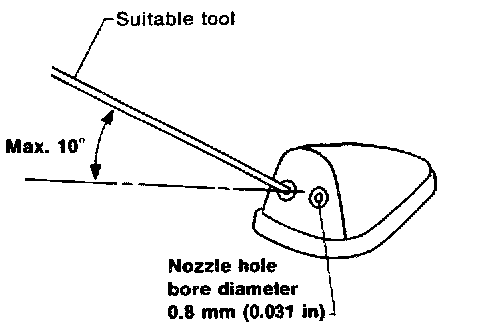

- Adjust washer nozzle with suitable tool as shown in the figure.

Adjustable range: ±10°
