Home >> Nissan-Datsun Truck >> 2000 >> Frontier XE Crew Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Wiper and Washer Systems >> Adjustments >> Before VIN 343314

Before VIN 343314











Washer Nozzle Adjustment

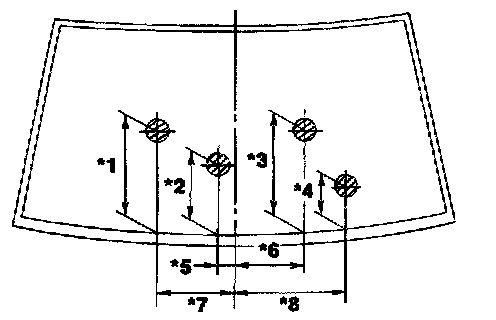

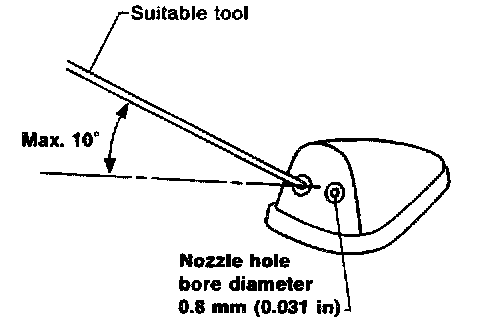

Adjust washer nozzle with suitable tool as shown in the figure at left.

Adjustable range: ± 10°
