Before VIN #343314

INSPECTION

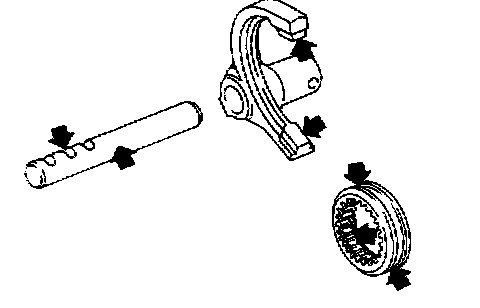

- Check contact surface and sliding surface for wear, scratches, projections or other faulty conditions.

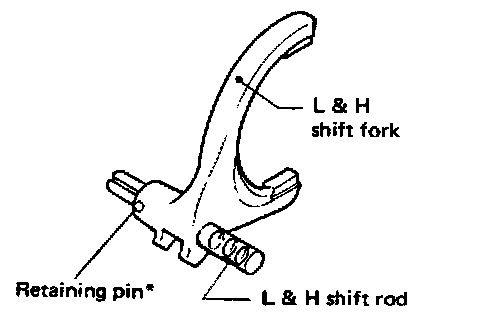

L & H Shift Rod & Fork





- Assemble as shown in illustration.
* Retaining pin is the same size as the one for 2-4 shift rod.

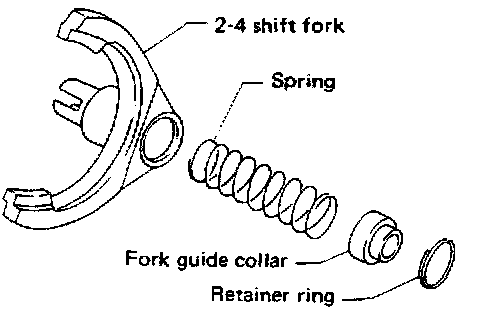

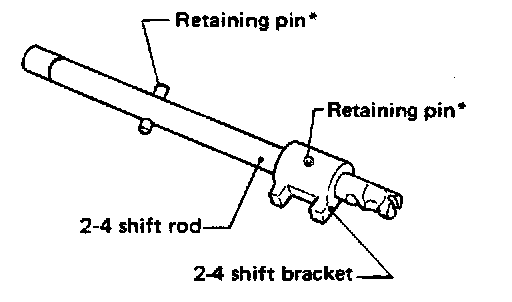

2-4 Shift Rod & Fork





- Assemble as shown in illustration.
* Retaining pins are the same size.





- Pay special attention to the direction of fork guide collar.
