Beginning With VIN #343314

REMOVAL

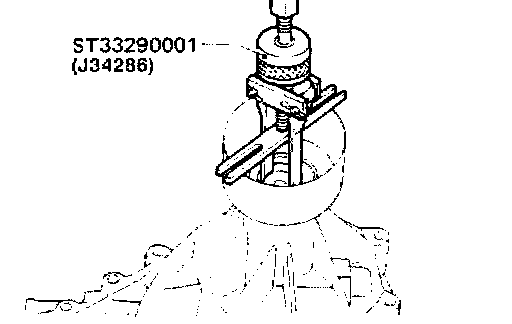

Rear Oil Seal





- Pull out rear oil seal.

INSTALLATION

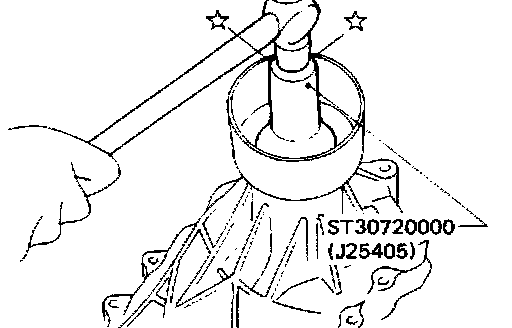

Rear Oil Seal





- Install new rear oil seal until it stops.
- Before installing, apply multi-purpose grease to seal lip.

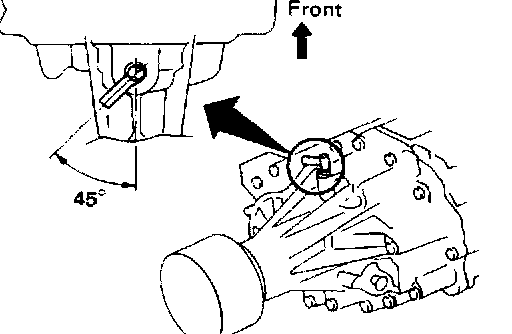

Air Breather





Install as shown in illustration.
- Use genuine thread locker, Three Bond TB1324, Loctite 271 or equivalent.
