Before VIN #343314

REMOVAL
Cover Oil Seal

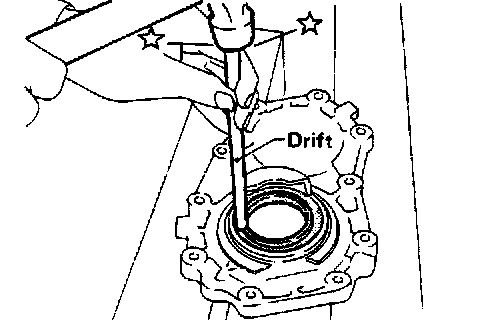

- Drive out old seal from inside of front case cover.
- Be careful not to damage front case cover.

INSTALLATION
Cover Oil Seal

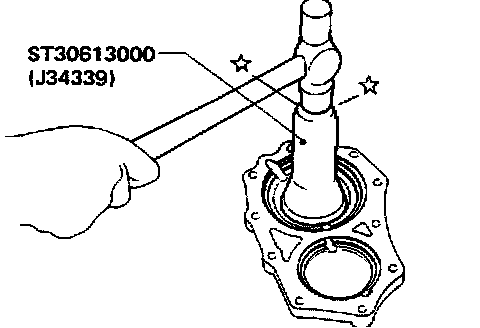

- Install new front case cover oil seal until it stops.
- Before installing, apply multi-purpose grease to seal lip.
