Before VIN #343314

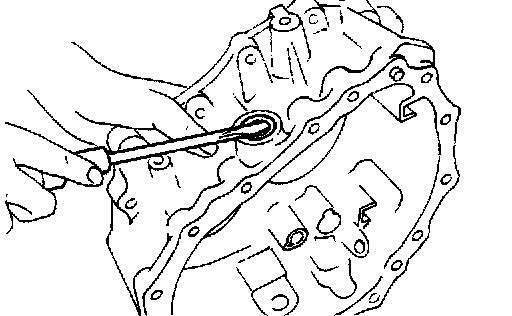

REMOVAL
Shift Shaft Oil Seal





- Use a screwdriver to pry out old seal.
- Be careful not to damage case.
- Always replace with a new one whenever it has been removed.

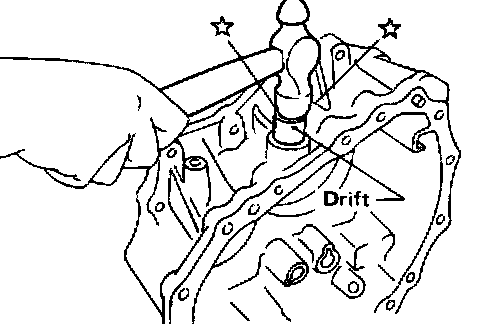

INSTALLATION
Shift Shaft Oil Seal





- Install new shift shaft oil seal until flush with case.
- Before installing, apply multi-purpose grease to seal lip.
