Before VIN #343314

DISASSEMBLY

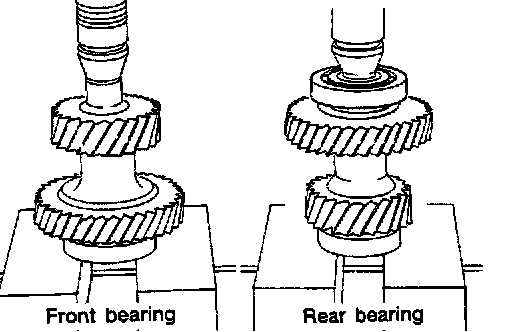

1. Press out counter gear front bearing.
- Remove front sub-gear, dish plate and spacer (M/T model only).





2. Press out counter gear rear bearing.
- Remove rear sub-gear, dish plate and spacer (M/T model only).

INSPECTION

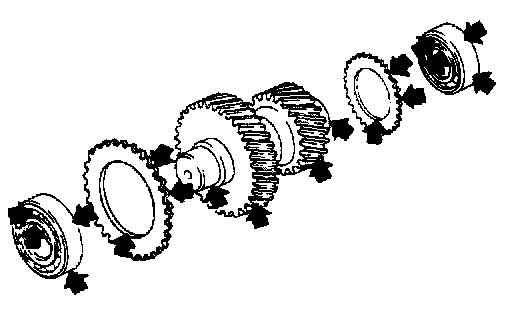

Gear and Shaft





- Check gears for excessive wear, chips or cracks.
- Check shaft for cracks or wear.

Bearing
- Make sure bearings roll freely and are free from noise, cracks, pitting or wear.

ASSEMBLY





1. Install front sub-gear, dish plate and spacer (M/T model only).

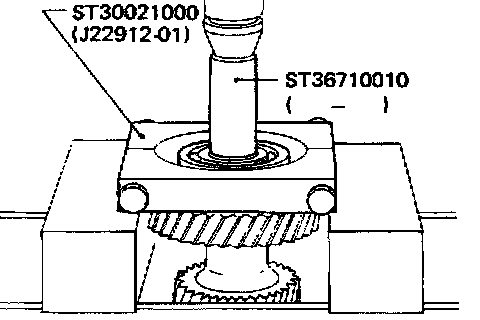

2. Press on counter gear front bearing.
3. Install rear sub-gear, dish plate and spacer (M/T model only).

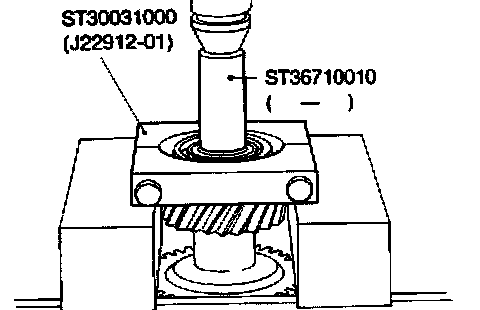

4. Press on counter gear rear bearing.
