Beginning With VIN #343314

SHIFT SHAFT OIL SEAL
1. Remove front propeller shaft.
2. Remove companion flange. Refer to Transfer Case Input Shaft Seal. Service and Repair

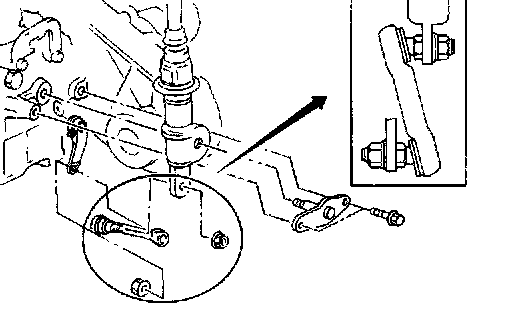

3. Remove transfer control lever from transfer outer shift lever. Then remove outer shift lever.

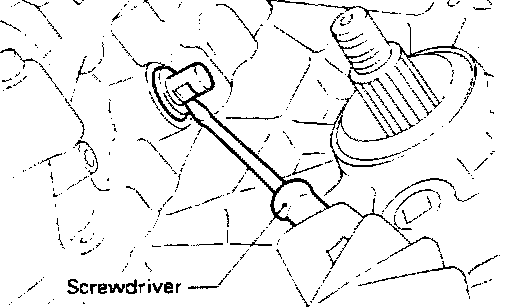

4. Remove shift shaft oil seal.
- Be careful not to damage cross shaft.

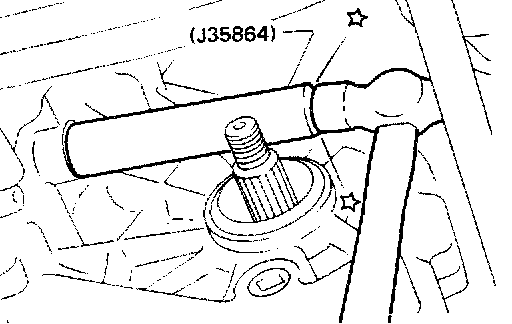

5. Install shift shaft oil seal.
- Before installing, apply multi-purpose grease to seal lip.
6. Install transfer control linkage.
7. Install companion flange. Refer to Transfer Case Input Shaft Seal. Service and Repair
8. Install front propeller shaft.
