Beginning With VIN #343314

CENTER CASE OIL SEAL
1. Remove front propeller shaft.

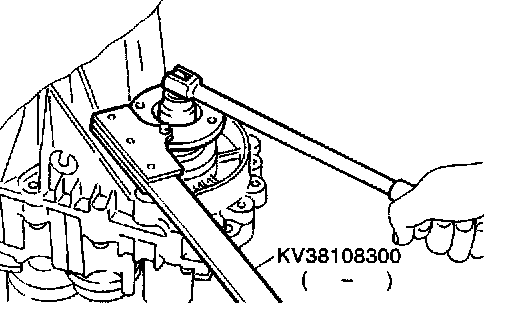

2. Remove companion flange nut.

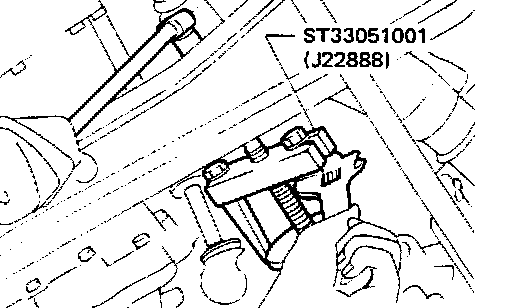

3. Remove companion flange.

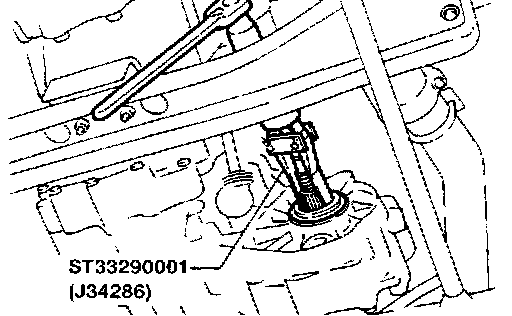

4. Remove center case oil seal.
5. Install center case oil seal.
- Before installing, apply multi-purpose grease to seal lip.
6. Install companion flange.

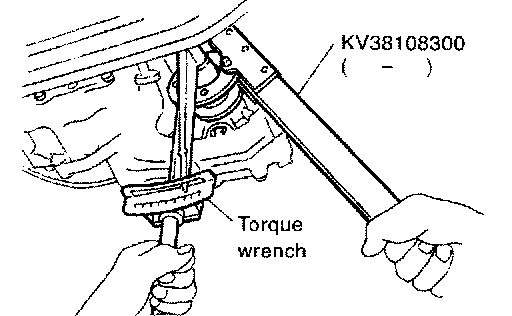

7. Tighten companion flange nut.
226 - 324 Nm (23 - 33 kg-m, 166 - 239 ft. lbs.)
8. Install front propeller shaft.
