Transfer Fluid Inspection
Check for fluid leakage and fluid level.
A/T fluid is used for the transfer in the factory.
Never start engine while checking fluid level.

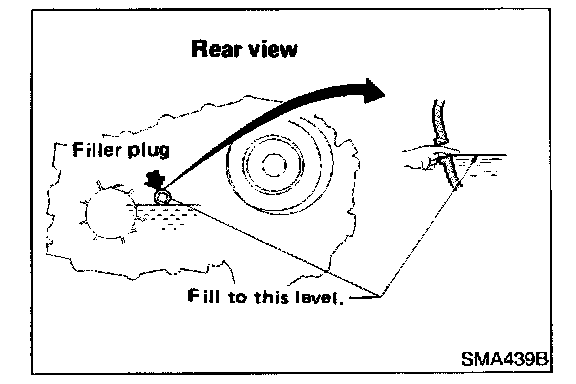

Filler plug :
Torque: 25 - 34 Nm (2.5 - 3.5 kg.m ,18 - 25 ft.lb)
Check for fluid leakage and fluid level.
A/T fluid is used for the transfer in the factory.
Never start engine while checking fluid level.
Filler plug :
Torque: 25 - 34 Nm (2.5 - 3.5 kg.m ,18 - 25 ft.lb)
