Before VIN #343314

Removal





CAUTION: When removing the M/T assembly from engine, first remove the crankshaft position sensor (OBD) from the M/T assembly. Be careful not to damage sensor edge.

1. Remove battery negative terminal.

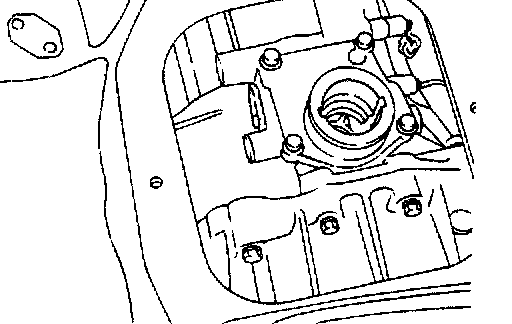

2. Remove shift lever from transmission and control lever from transfer.

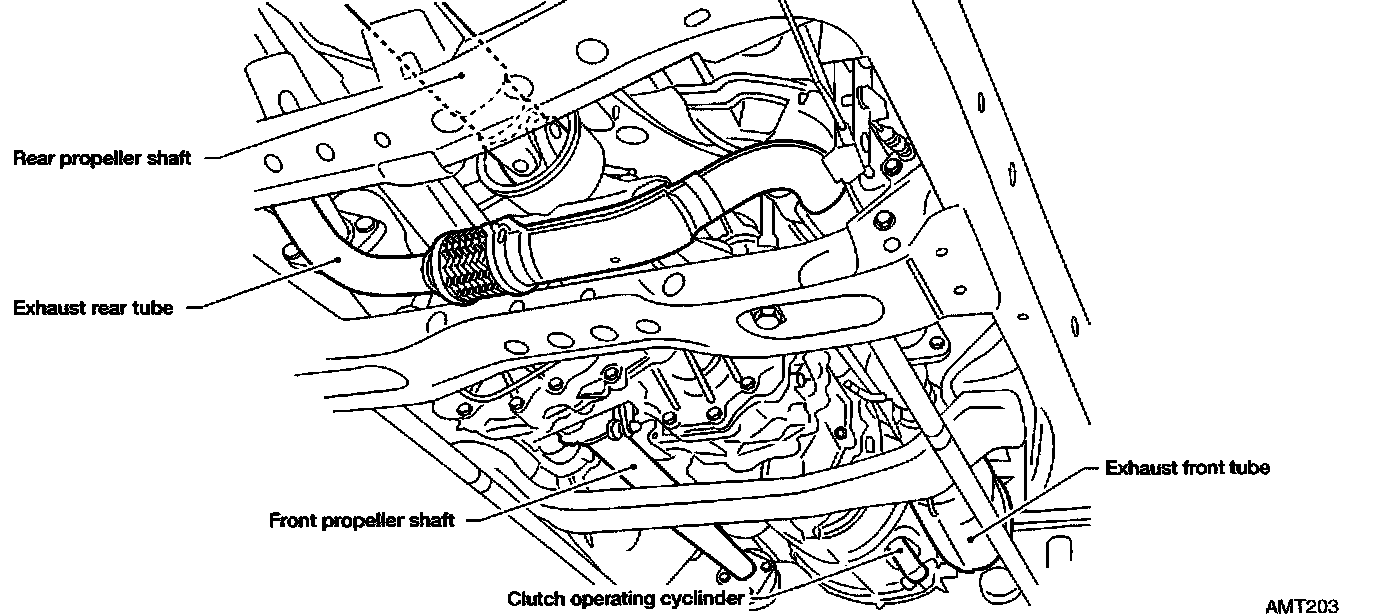

3. Remove clutch operating cylinder from transmission. Tighten clutch operating cylinder to the specified torque. Refer to Clutch, M/T.
Clutch

4. Disconnect speed sensor, back-up lamp switch, rear heated oxygen sensor and Park/neutral position (PNP) switch harness connectors.
5. Remove starter motor from transmission.
: 41 - 52 Nm (4.2 - 5.3 kg-m, 30 - 38 ft. lbs.)
6. Remove front and rear propeller shafts.
- Insert plug into rear oil seal after removing propeller shaft.
- Be careful not to damage spline, sleeve yoke and rear oil seal when removing propeller shaft.
7. Remove exhaust tube mounting bracket from transmission.
8. Remove front exhaust tubes and center pipe.
9. Remove torsion bars and mounts.
10. Remove rear torsion bar cross mounts.
11. Remove gussets from transmission or engine.
12. Support manual transmission with a jack.
13. Remove rear mounting member. Tighten rear mounting member to the specified torque. Refer to Engine.
14. Lower manual transmission as much as possible.

WARNING: Support Manual Transmission together with transfer, while removing it.





15. Remove crankshaft position sensor (OBD) from upper side of transmission case.
16. Remove transmission bolts.

WARNING: Support Manual Transmission together with transfer, while removing it.

Installation





- Apply sealant as below: - 4WD model








- Tighten bolt securing transmission.
