Beginning With VIN #343314

REMOVAL
- Remove rear of propeller shaft.
Plug front end of transfer.
- Remove axle shaft.
- Remove rear final drive mounting bolts.

CAUTION:
- Be careful not to damage spline, sleeve yoke and front oil seal when removing propeller shaft.
- Before removing the final drive assembly or rear axle assembly, disconnect the ABS sensor harness connector from the assembly and move it away from the final drive/rear axle assembly area. Failure to do so may result in the sensor wires being damaged and the sensor becoming inoperative.

INSTALLATION

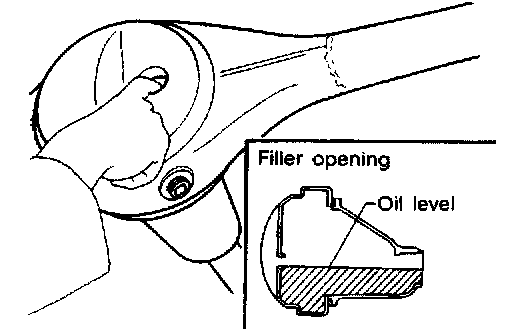

- Fill final drive with recommended gear oil.

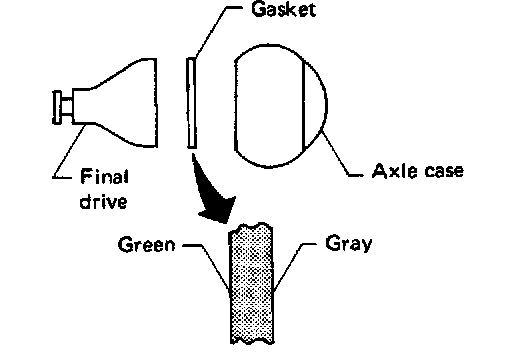

- Pay attention to the direction of gasket.
