Before VIN #343314

DISASSEMBLY

CAUTION: Do not run engine when one wheel (rear) is off the ground.





1. Remove side bearing inner cone with Tool.
2. Loosen ring gear bolts in a criss-cross pattern.

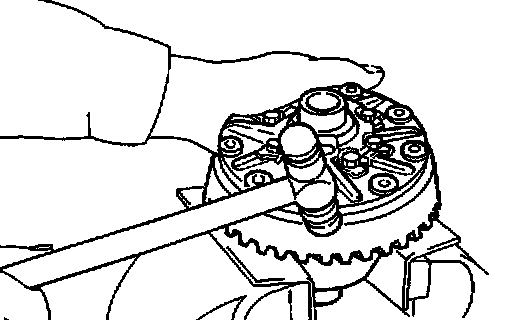

3. Tap ring gear off gear case with a soft hammer.
Tap evenly all around to keep ring gear from binding.

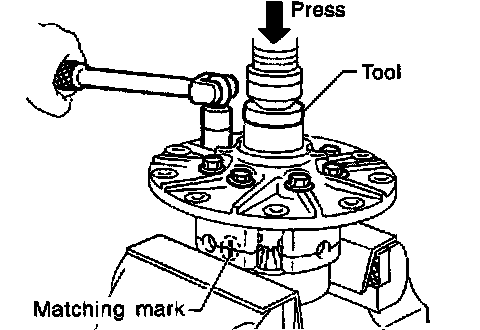

4. Remove couple bolts on differential cases A and B with a press.
Tool number: ST33081000 ( - )
5. Separate differential case A and B.
Draw out component parts (discs and plates, etc.).
Put marks on gears and pressure rings so that they can be reinstalled in their original positions from which they were removed.
