Beginning With VIN #343314

PRE-INSPECTION
Before disassembling final drive, perform the following inspection.

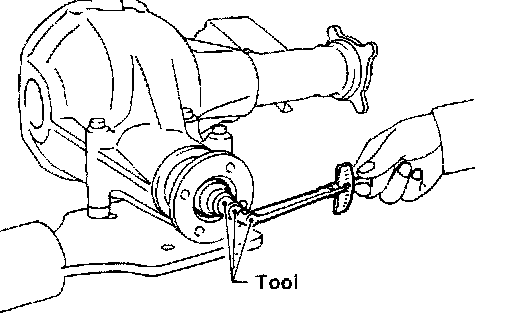

- Total preload
a. Turn drive pinion in both directions several times to set bearing rollers.
b. Check total preload with Tool.
Tool number: ST3127SO00 (J25765-A)
Total preload: 1.4 - 1.7 Nm (14 - 17 kg-cm, 12 - 15 inch lbs.)

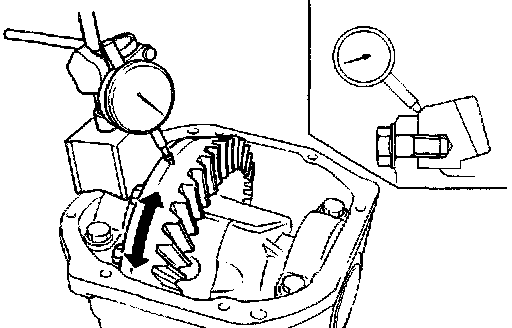

- Ring gear to drive pinion backlash
Check backlash of ring gear with a dial indicator at several points.
Ring gear-to-drive pinion backlash: 0.10 - 0.15 mm (0.0039 - 0.0059 inch)

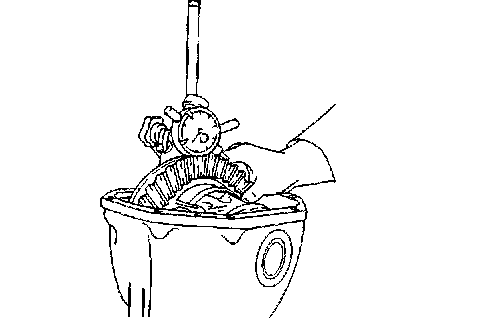

- Ring gear runout
Check runout of ring gear with a dial indicator.
Runout limit: 0.05 mm (0.0020 inch)
- Tooth contact
Check tooth contact. Refer to Adjustment. Adjustment

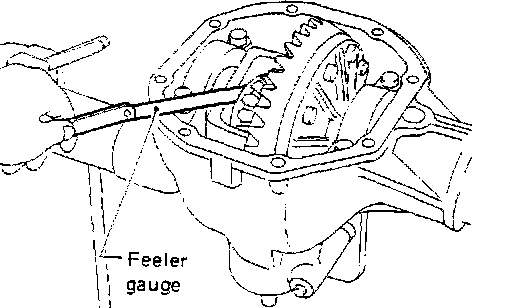

- Side gear to pinion mate gear backlash
Using a feeler gauge, measure clearance between side gear thrust washer and differential case.
Clearance between side gear thrust washer and differential case: Less than 0.15 mm (0.0059 inch)
