Before VIN #343314

DIFFERENTIAL SIDE SHAFT

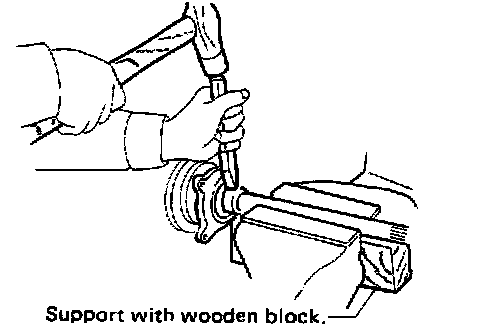

1. Cut collar with cold chisel. Be careful not to damage differential side shaft.

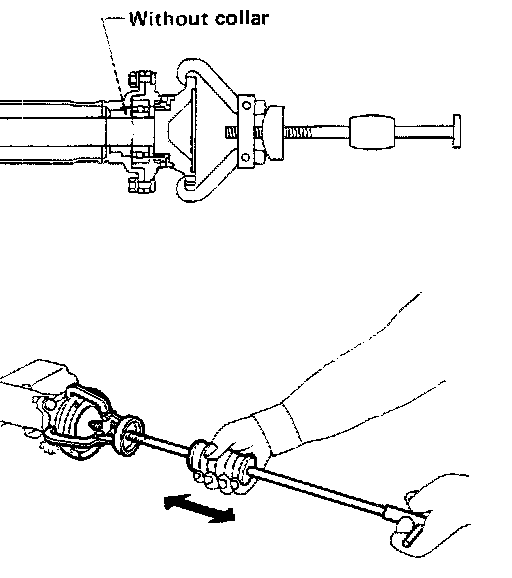

2. Reinstall differential side shaft into extension tube and secure with bolts. Remove rear axle bearing by drawing out differential side shaft from rear axle bearing with puller.

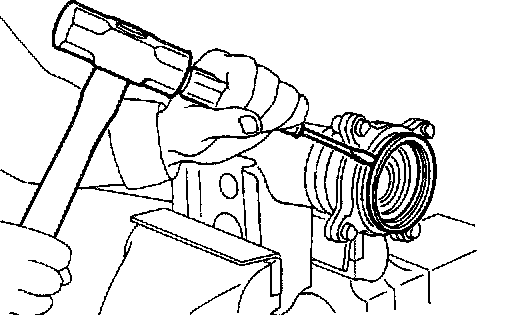

3. Remove grease seal and oil seal.
