R200A

FRONT OIL SEAL REPLACEMENT
(Front final drive: Model R200A)
1. Remove front propeller shaft.

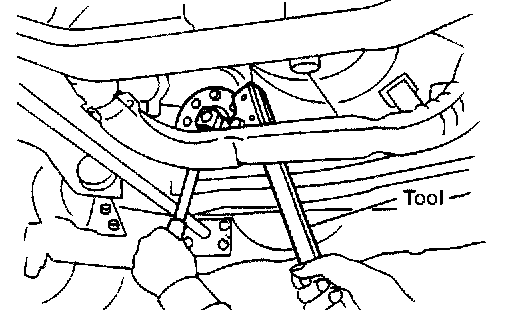

2. Loosen drive pinion nut.
Tool number: KV38108300 (J-44195)

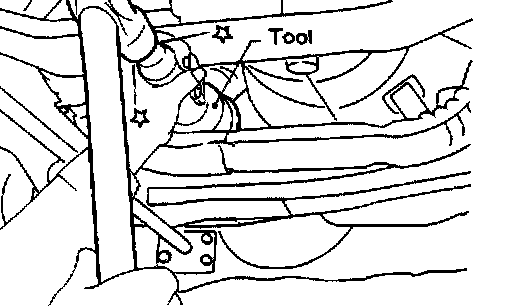

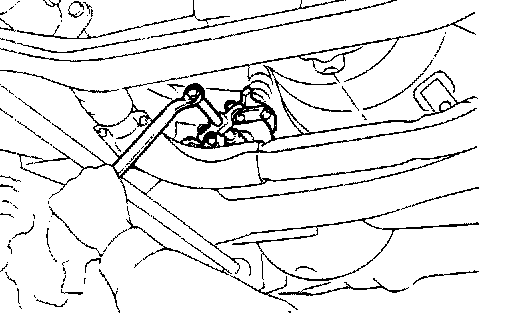

3. Remove companion flange.

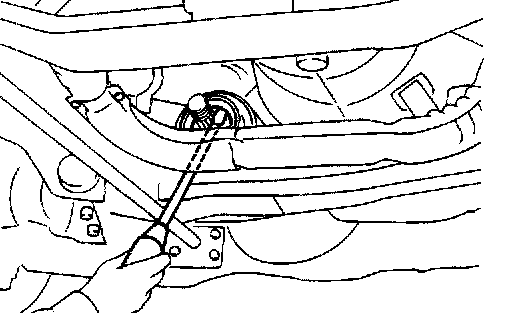

4. Remove front oil seal.





5. Apply multi-purpose grease to cavity at sealing lips of oil seal. Press front oil seal into carrier.
6. Install companion flange and drive pinion nut.
7. Install propeller shaft.
Tool number: KV38100500 (J25273)
