Beginning With VIN #343314

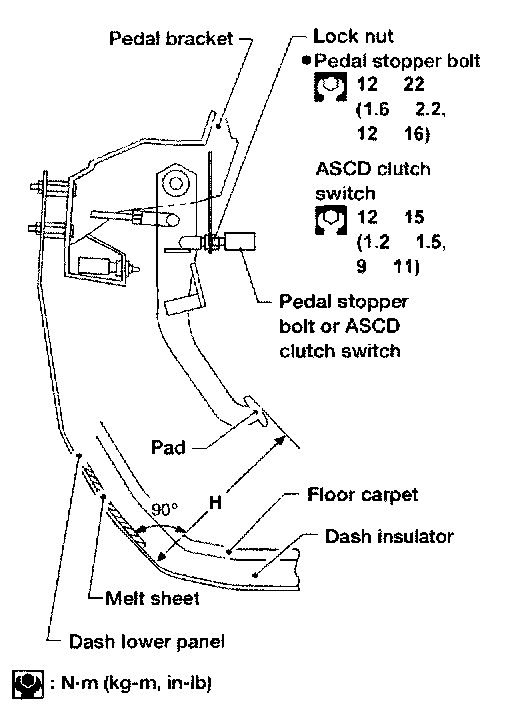

ADJUSTING CLUTCH PEDAL





1. Adjust pedal height with pedal stopper bolt or ASCD cancel switch.
Pedal height "H":
KA24DE: 221 - 231 mm (8.70 - 9.09 inch)
VG33E: 227 - 237 mm (8.94 - 9.33 inch)





2. Adjust pedal free play with master cylinder push rod. Then tighten lock nut.
Pedal free play (measured at pedal pad) "A": 9 - 16 mm (0.35 - 0.63 inch)
Pedal free play means the following total measured at position of pedal pad:
- Play due to clevis pin, clevis pin hole in clutch pedal and master cylinder.
3. Make sure that clevis pin can rotate smoothly. If not, readjust pedal free play with master cylinder push rod.

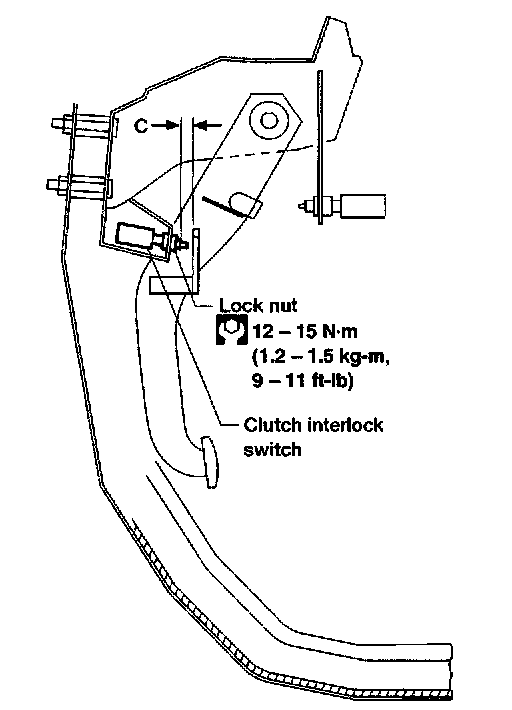

Models with Clutch Interlock System -





1. Adjust clearance "C" shown in the figure while fully depressing clutch pedal.
Clearance C: 0.1 - 1.0 mm (0.004 - 0.039 inch)
