Before VIN #343314

DISASSEMBLY

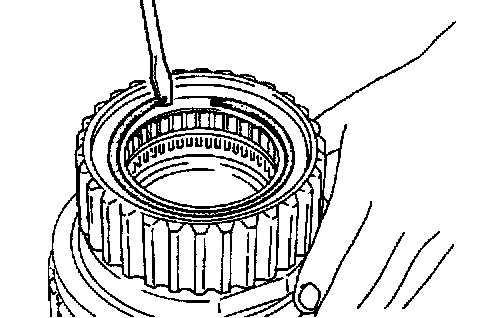

1. Remove snap ring from forward clutch drum.

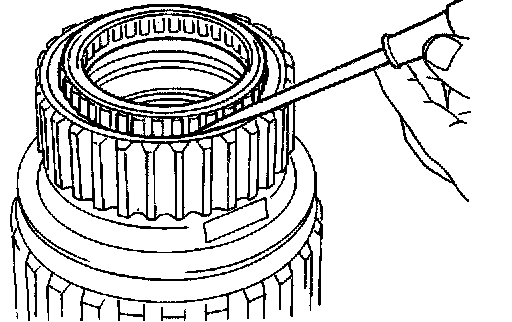

2. Remove side plate from forward clutch drum.

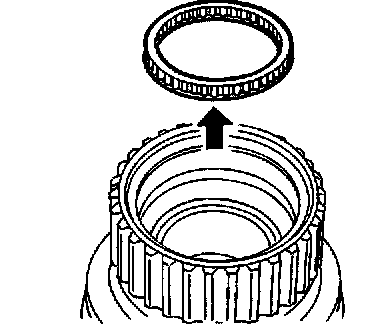

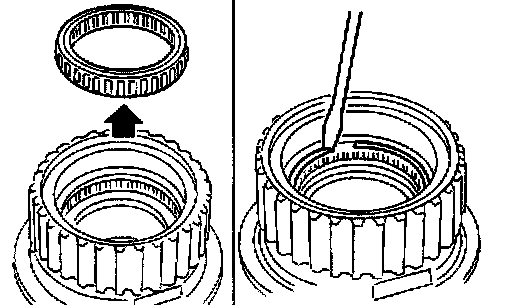

3. Remove low one-way clutch from forward clutch drum.

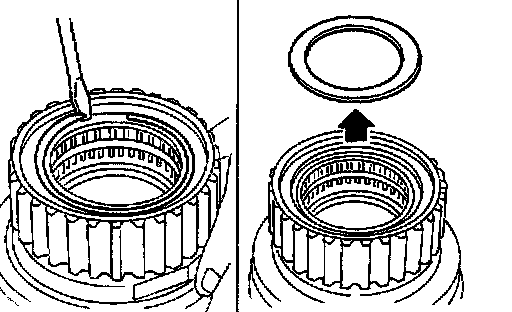

4. Remove snap ring from forward clutch drum.





5. Remove needle bearing from forward clutch drum.

INSPECTION





Forward Clutch Drum
- Check spline portion for wear or damage.
- Check frictional surfaces of low one-way clutch and needle bearing for wear or damage.

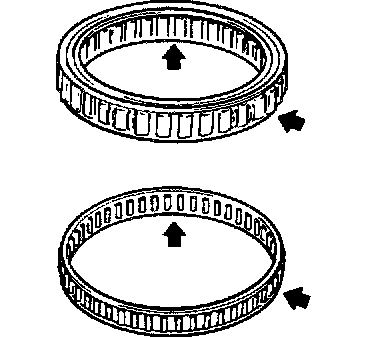

Needle Bearing and Low One-way Clutch
- Check frictional surface for wear or damage.

ASSEMBLY

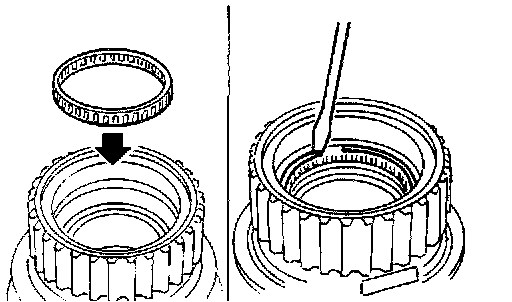

1. Install needle bearing in forward clutch drum.
2. Install snap ring onto forward clutch drum.

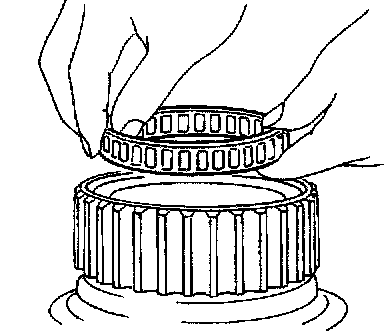

3. Install low one-way clutch onto forward clutch drum by pushing the roller in evenly.





- Install low one-way clutch with flange facing rearward.
4. Install side plate onto forward clutch drum.





5. Install snap ring onto forward clutch drum.
