Beginning With VIN #343314

Rear Oil Seal Replacement
1. Remove transfer case from vehicle. Refer to Transfer Case; Service and Repair.
Transfer Case Removal and Installation


2. Remove rear oil seal.

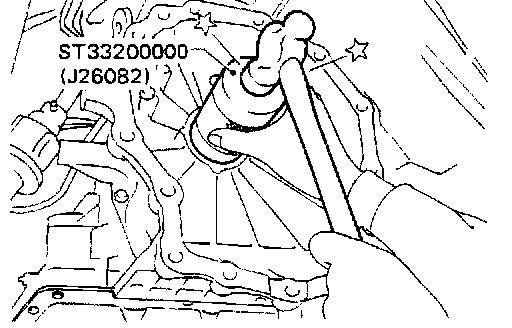

3. Install rear oil seal.
- Apply ATF before installing.
4. Reinstall any part removed.
