Before VIN 343314

REMOVAL AND INSTALLATION

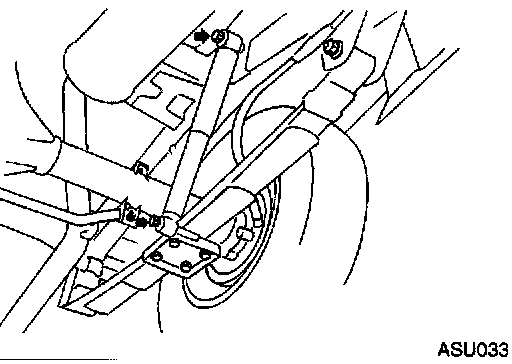

^ Remove shock absorber by disconnecting upper and lower end.

INSPECTION
^ If oil leakage, cracks and deformation occurs, replace shock absorber assembly.
^ If rubber bushings are cracked and deformed, replace rubber bushings.
