Beginning With VIN 343314

Checking Steering Wheel Turning Force
1. Park vehicle on a level, dry surface and set parking brake.
2. Start engine and run at idle speed or 1,000 rpm.
3. Bring power steering fluid up to adequate operating temperature. [Make sure temperature of fluid is approximately 60 to 80°C (140 to 176°F).
Tires need to be inflated to normal pressure.

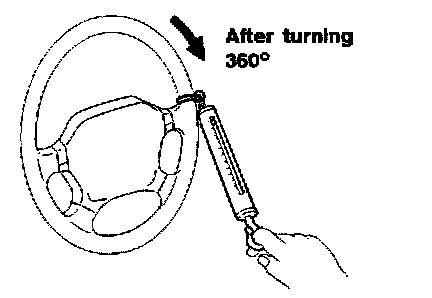

4. Check steering wheel turning force when steering wheel has been turned 360° from neutral position.
Steering wheel turning force:
PB59K: 39 N (4 kg, 9 lbs.) or less
D600: 39 N (4 kg, 9 lbs.) or less
5. If steering wheel turning force is out of specification, check the following:
a. Hydraulic system.
b. Steering Column.
c. Front suspension and axle.
d. Steering gear turning torque.
