Home >> Nissan-Datsun Truck >> 2000 >> Frontier XE Crew Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ignition Power Supply - Ignition Switch In "ON" and/or "START" >> Beginning With VIN 343314

Beginning With VIN 343314







Schematic

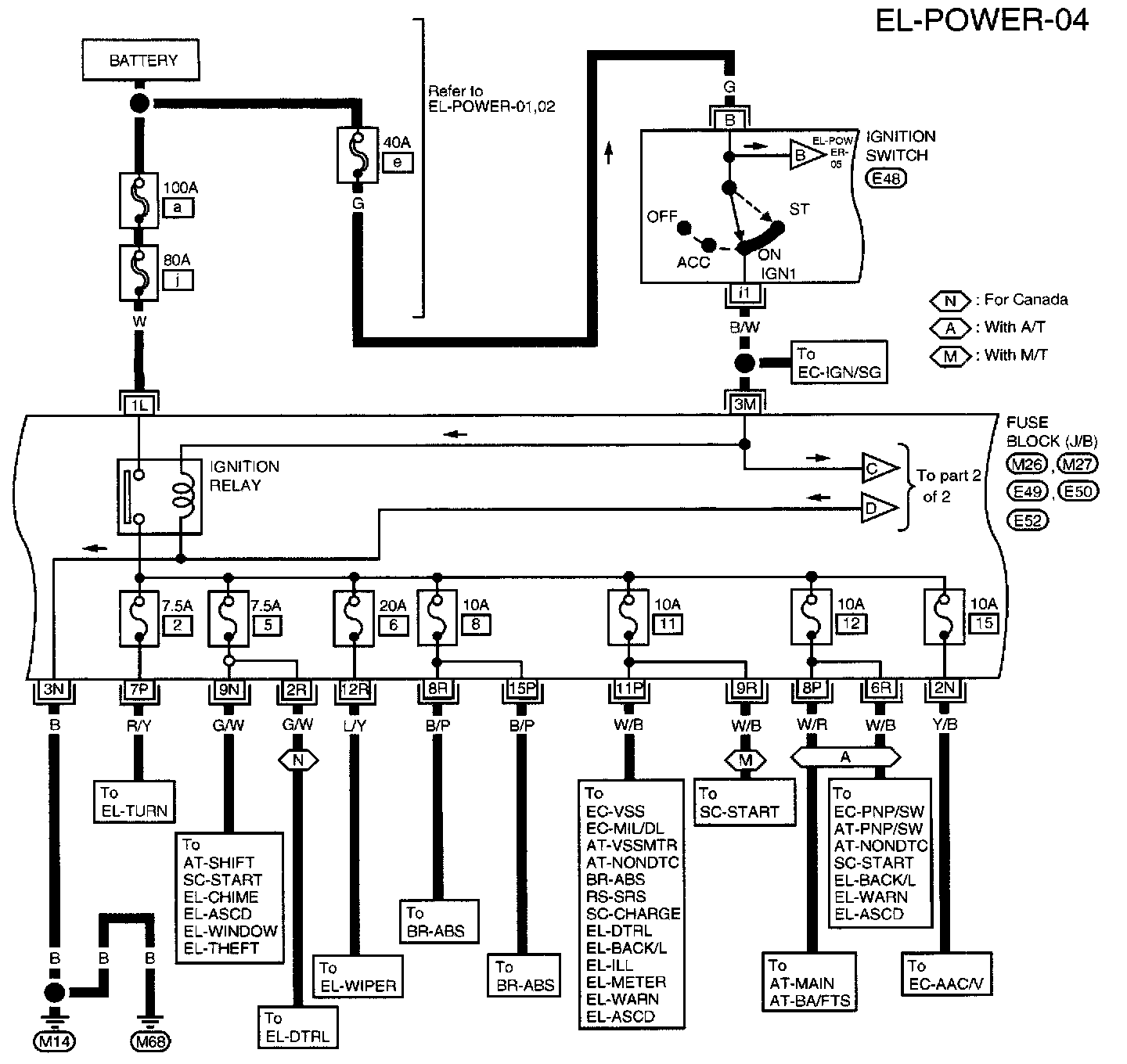

EL-POWER-04:

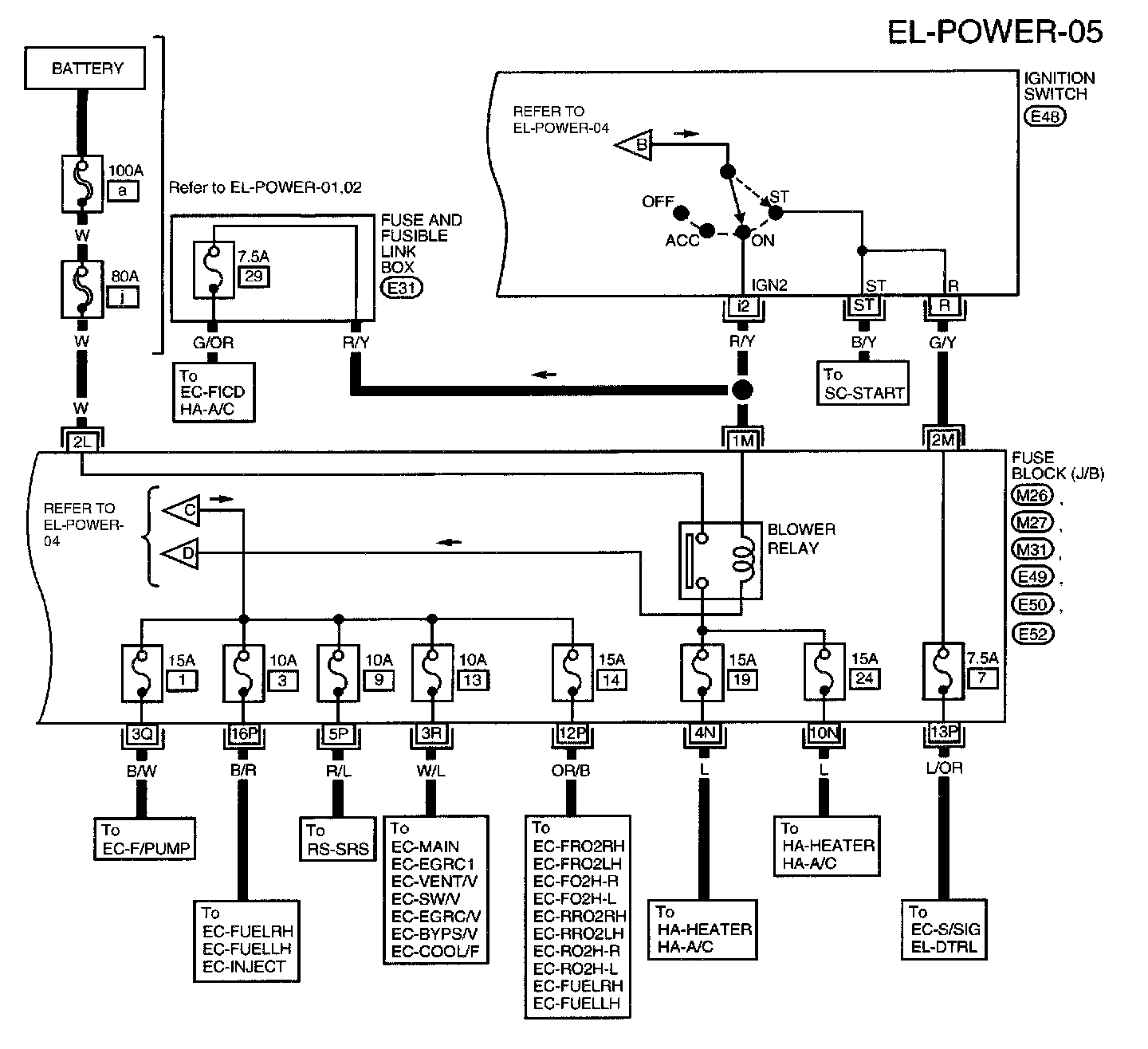

EL-POWER-05:

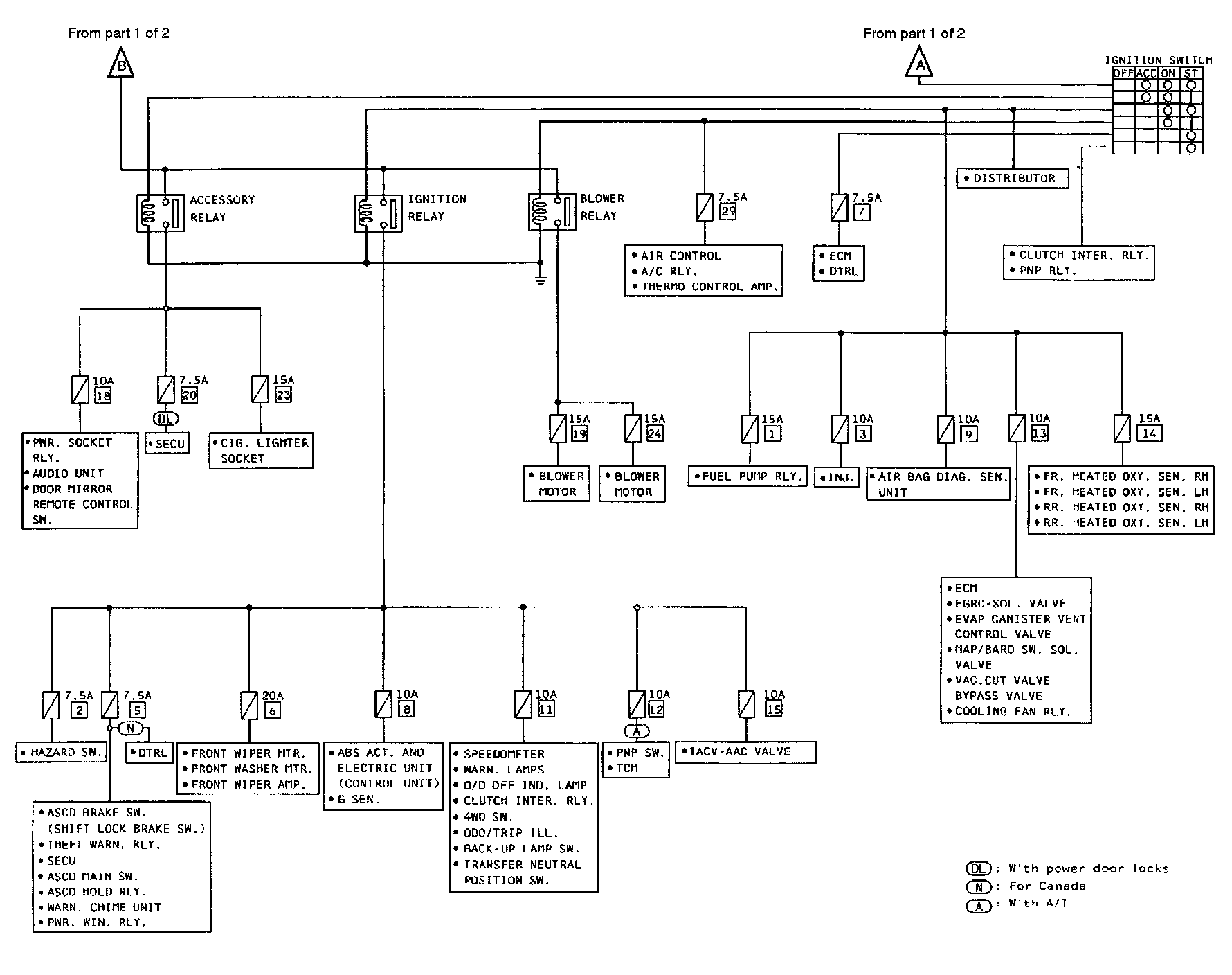

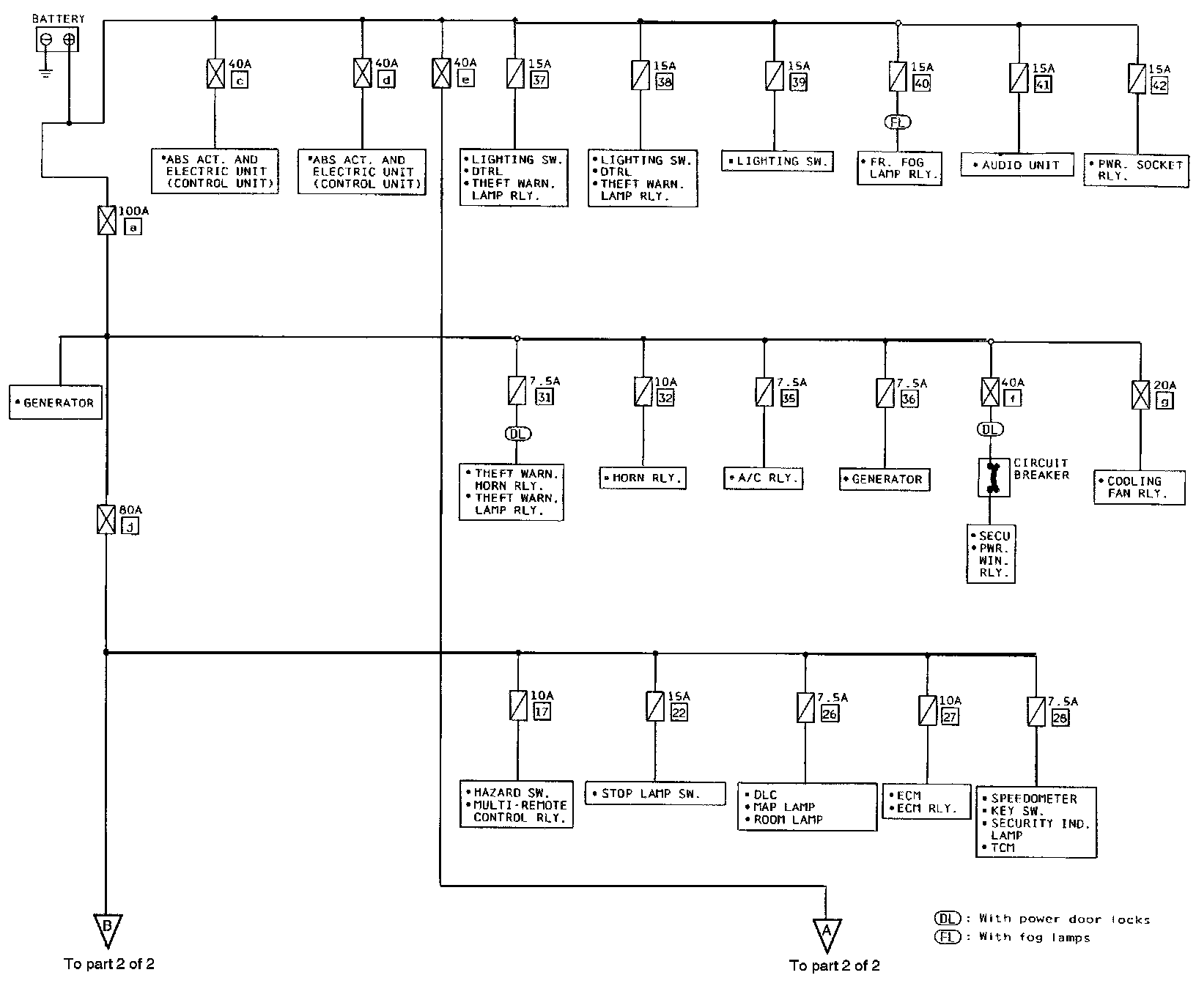

Circuit Diagram

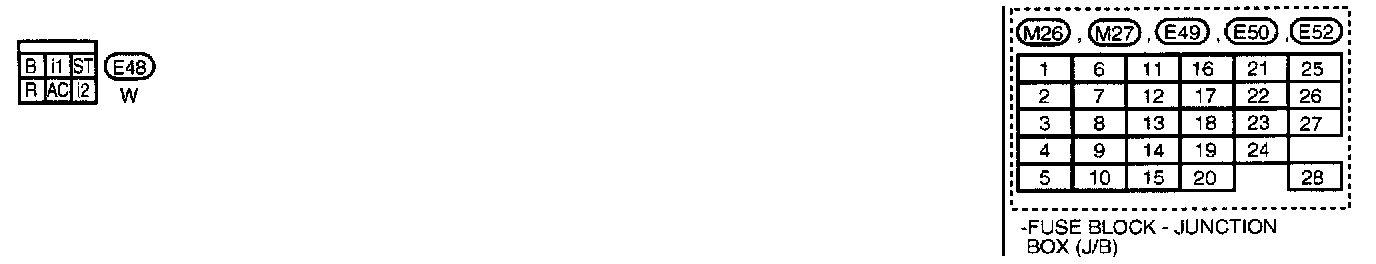

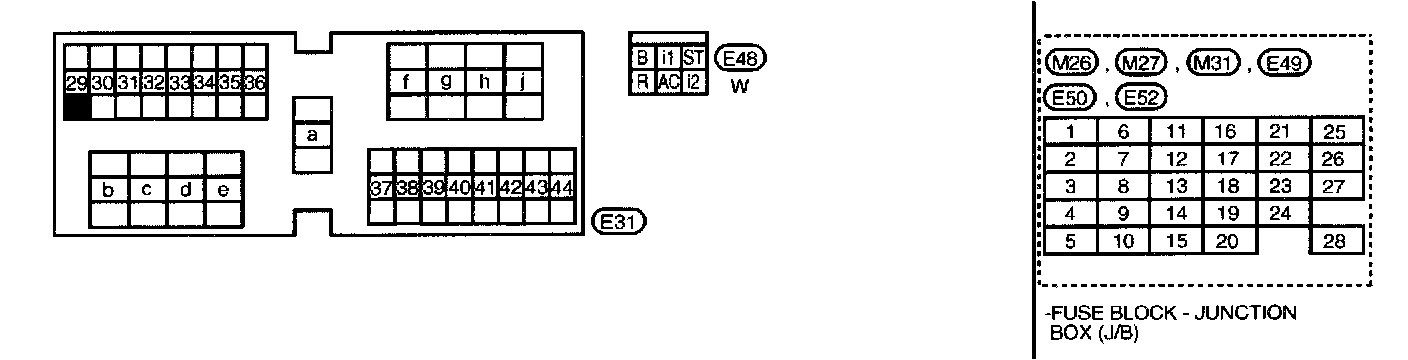

Circuit Connectors

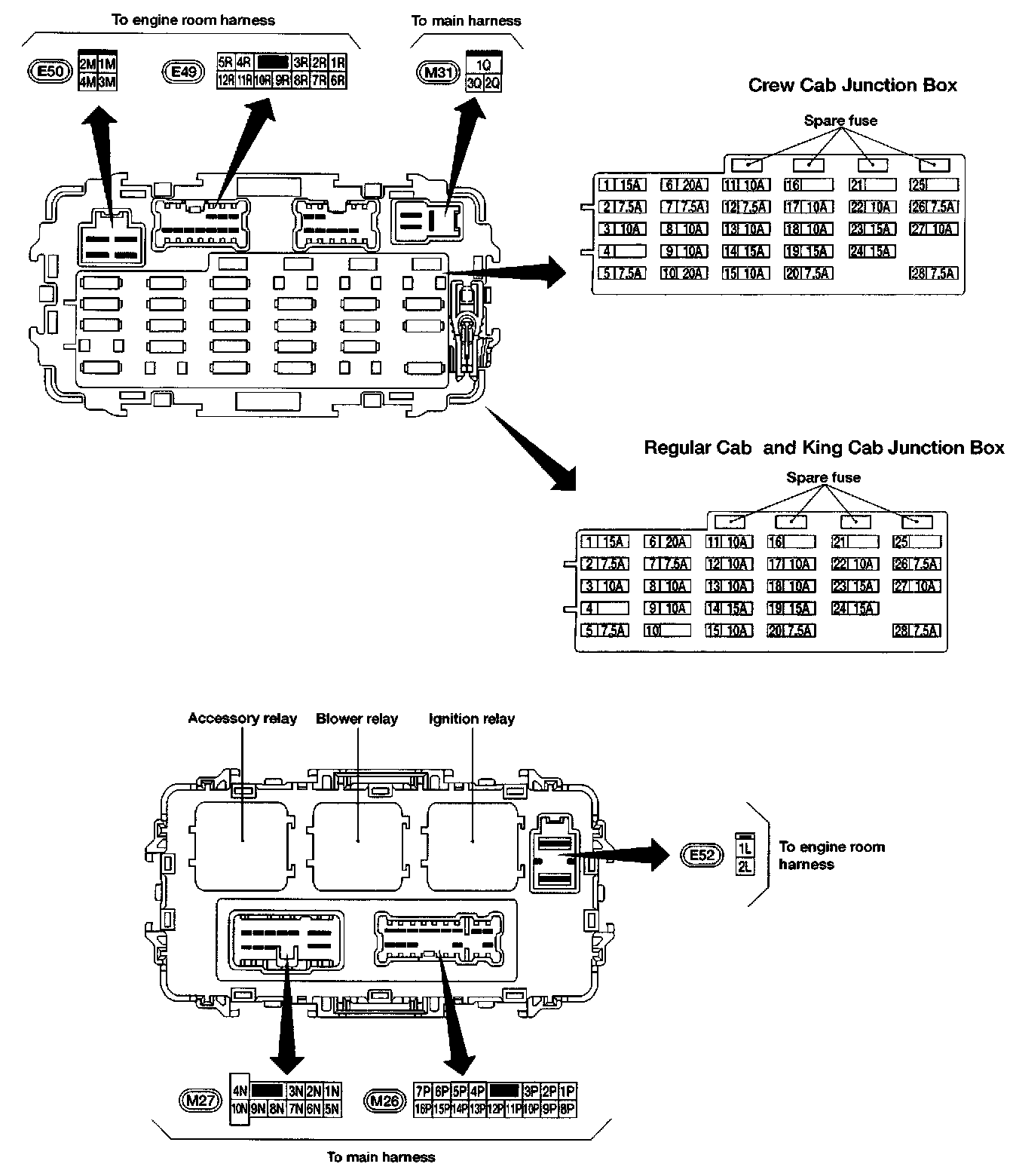

M26, M27, M31, E49, E50, E52 Fuse Block - Junction Box (J/B) Terminal Arrangement
