Home >> Nissan-Datsun Truck >> 2000 >> Frontier XE Crew Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Accessory Power Supply - Ignition Switch In "ACC" or "ON" >> Before VIN 343314

Before VIN 343314

Schematic

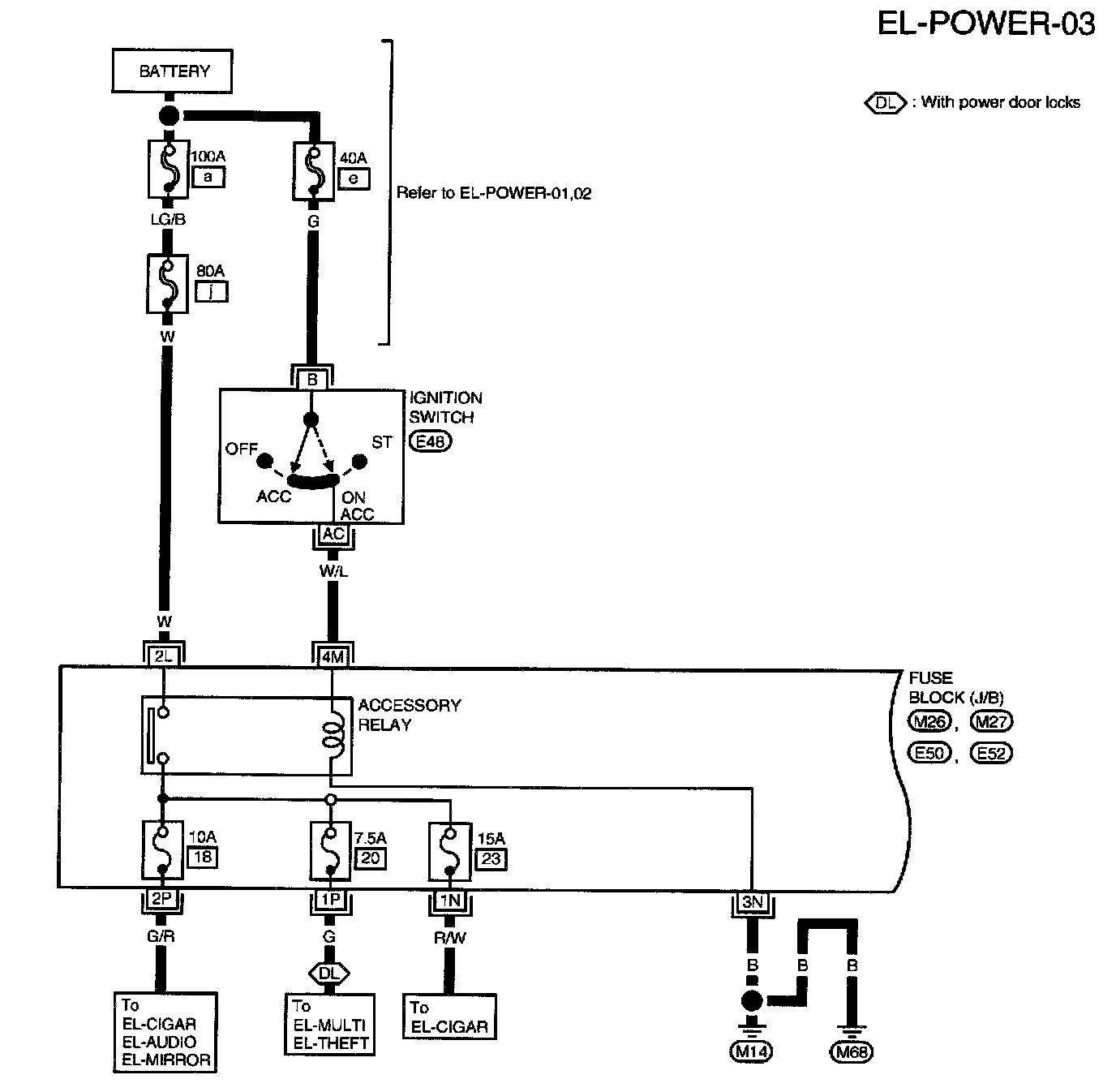

EL-POWER-03:

Circuit Diagram

Circuit Connectors

E50, E52, M26, M27 Fuse Block-Junction Box (J/B) Terminal Arrangement
