Diagram Information and Instructions

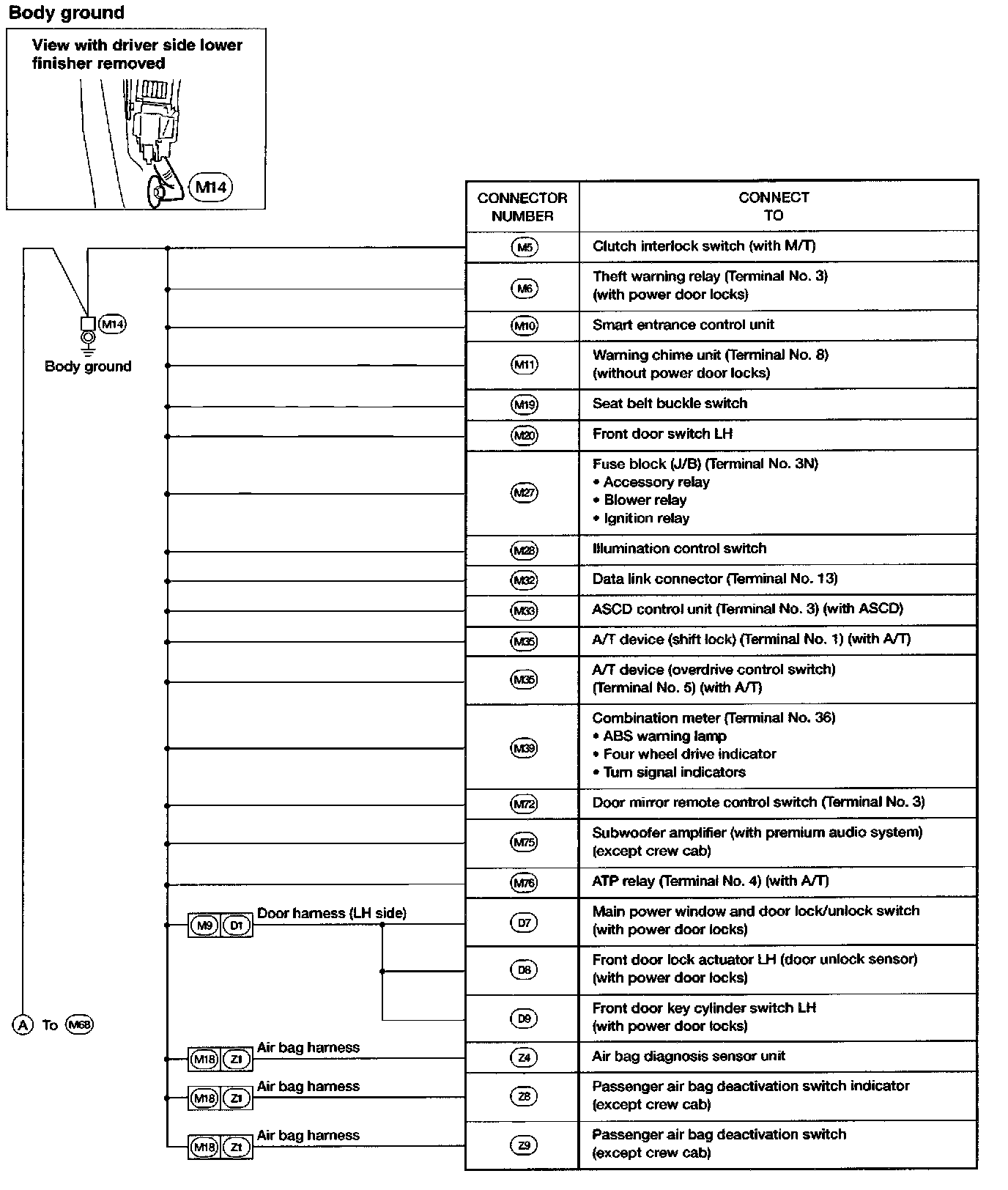

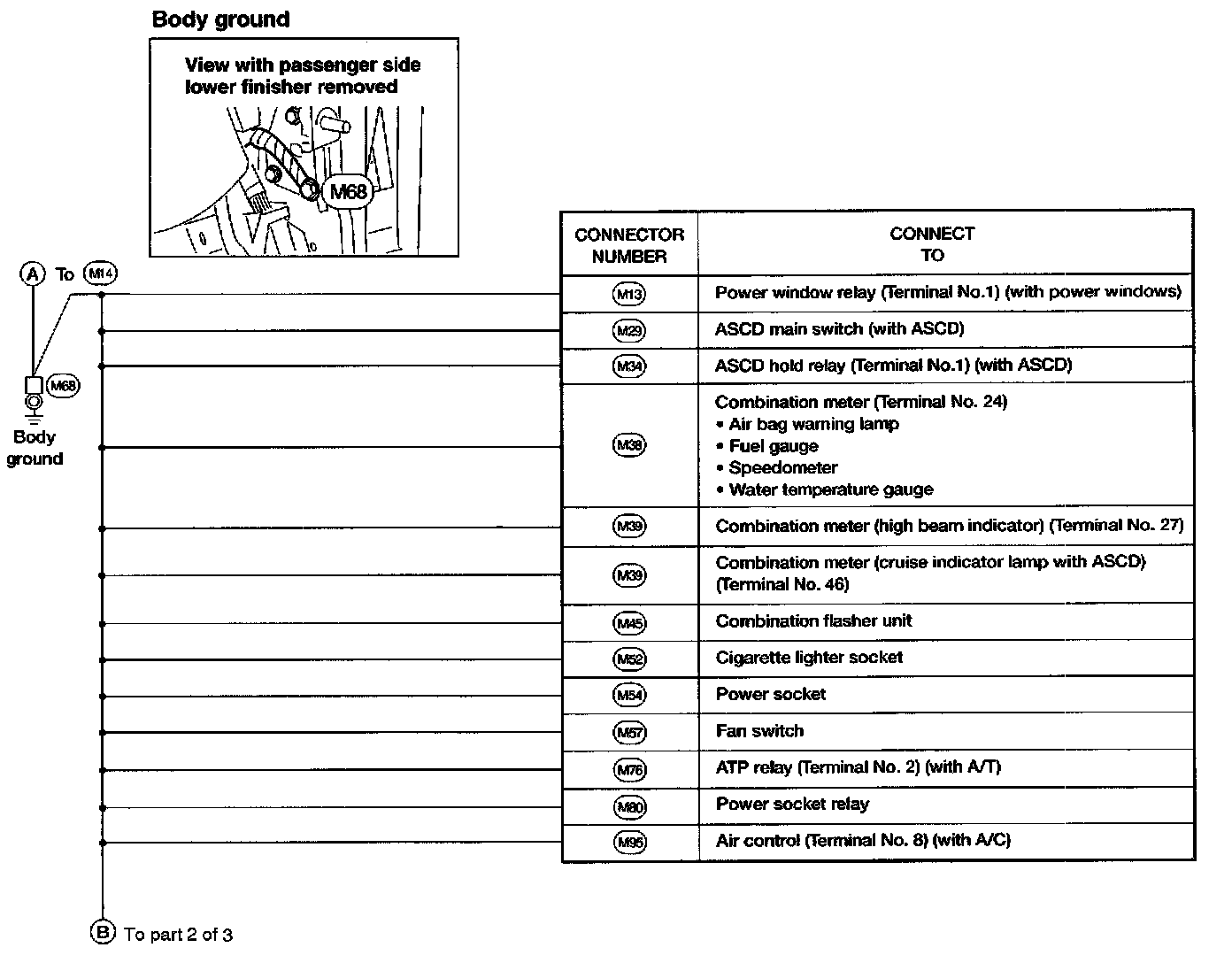

Part 1 Of 3:




Part 2 Of 3:

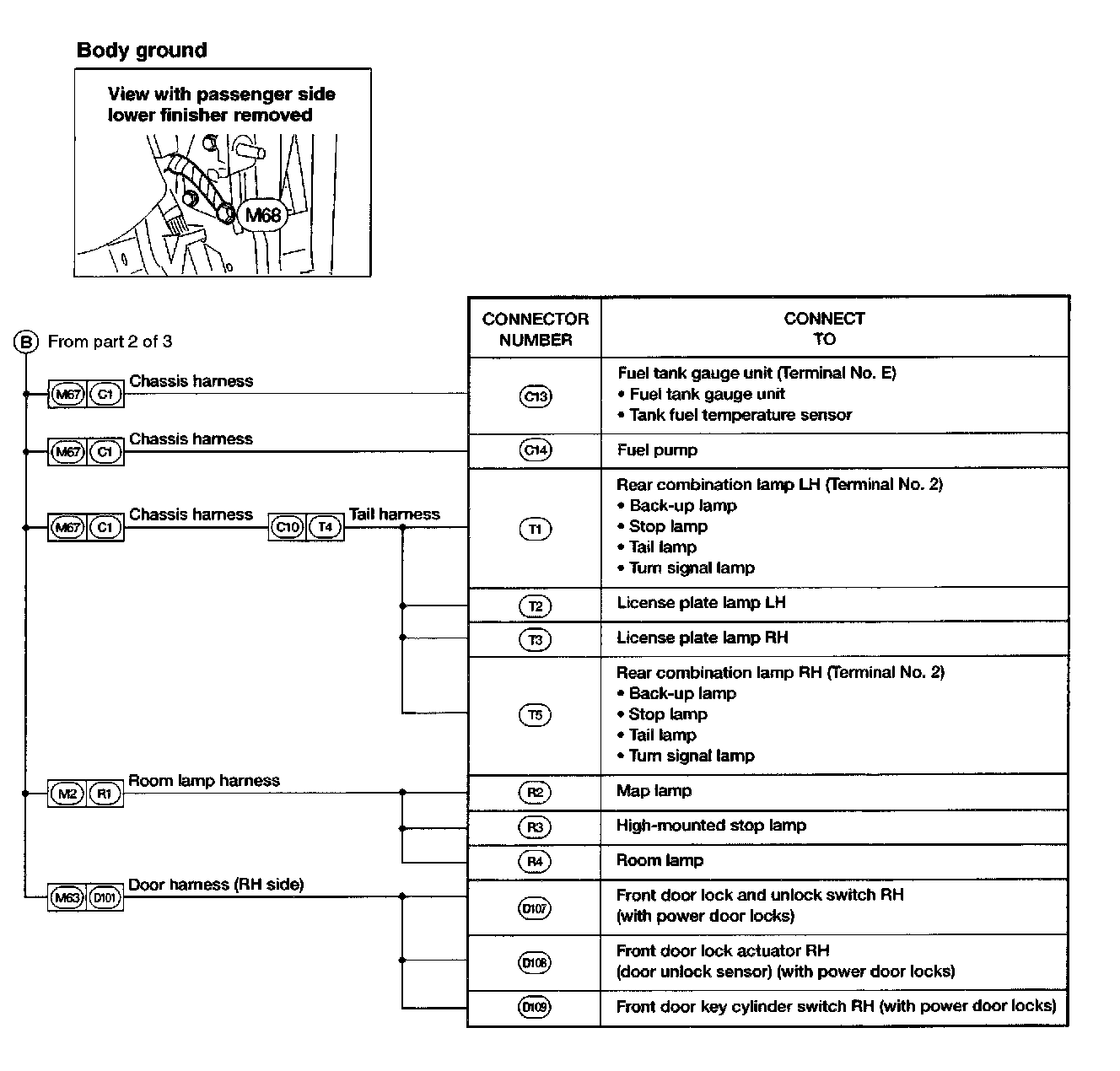

Part 3 Of 3:




Main Harness

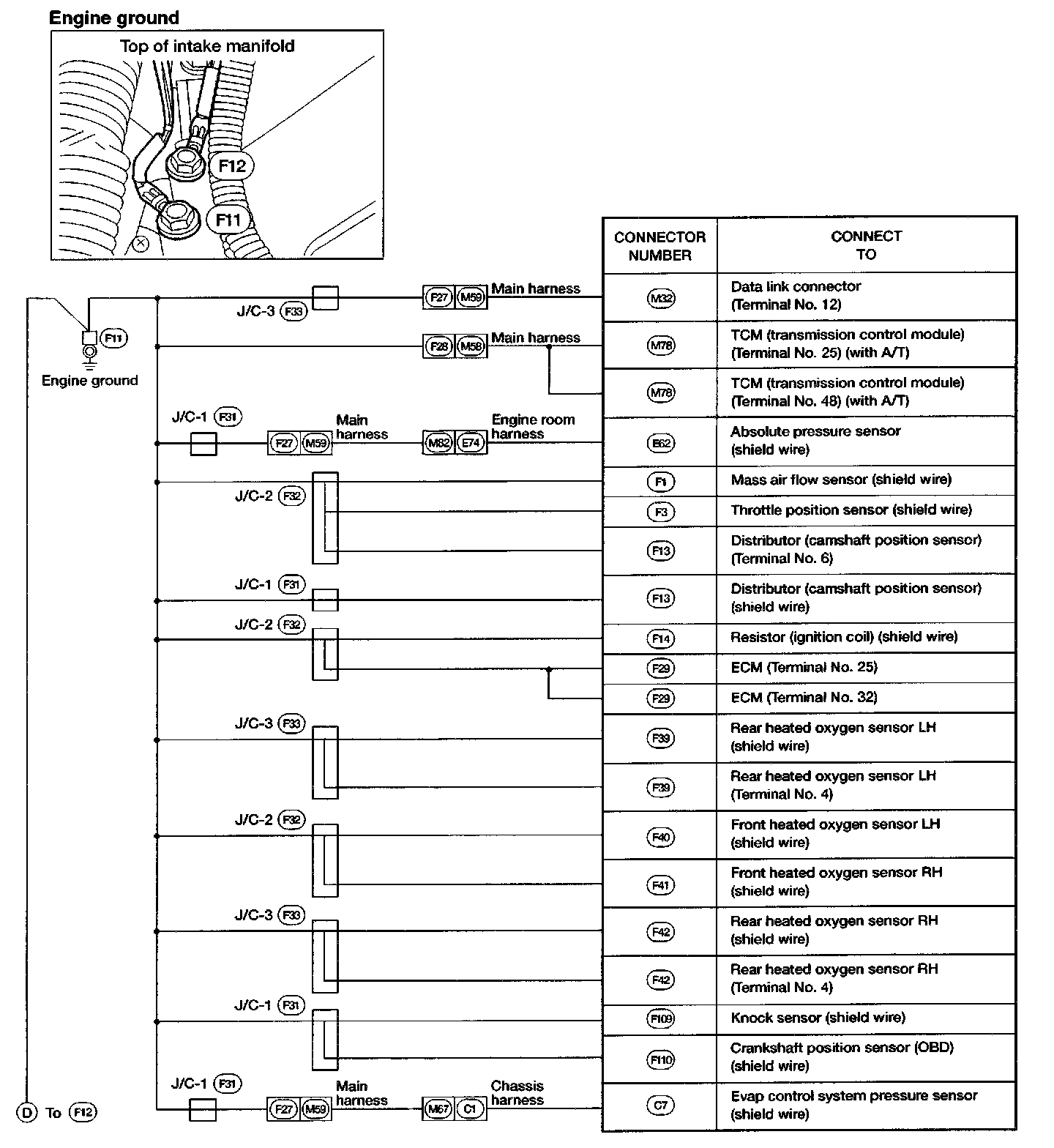

Part 1 Of 3:




Part 2 Of 3:




Part 2 Of 3:




Engine Room Harness

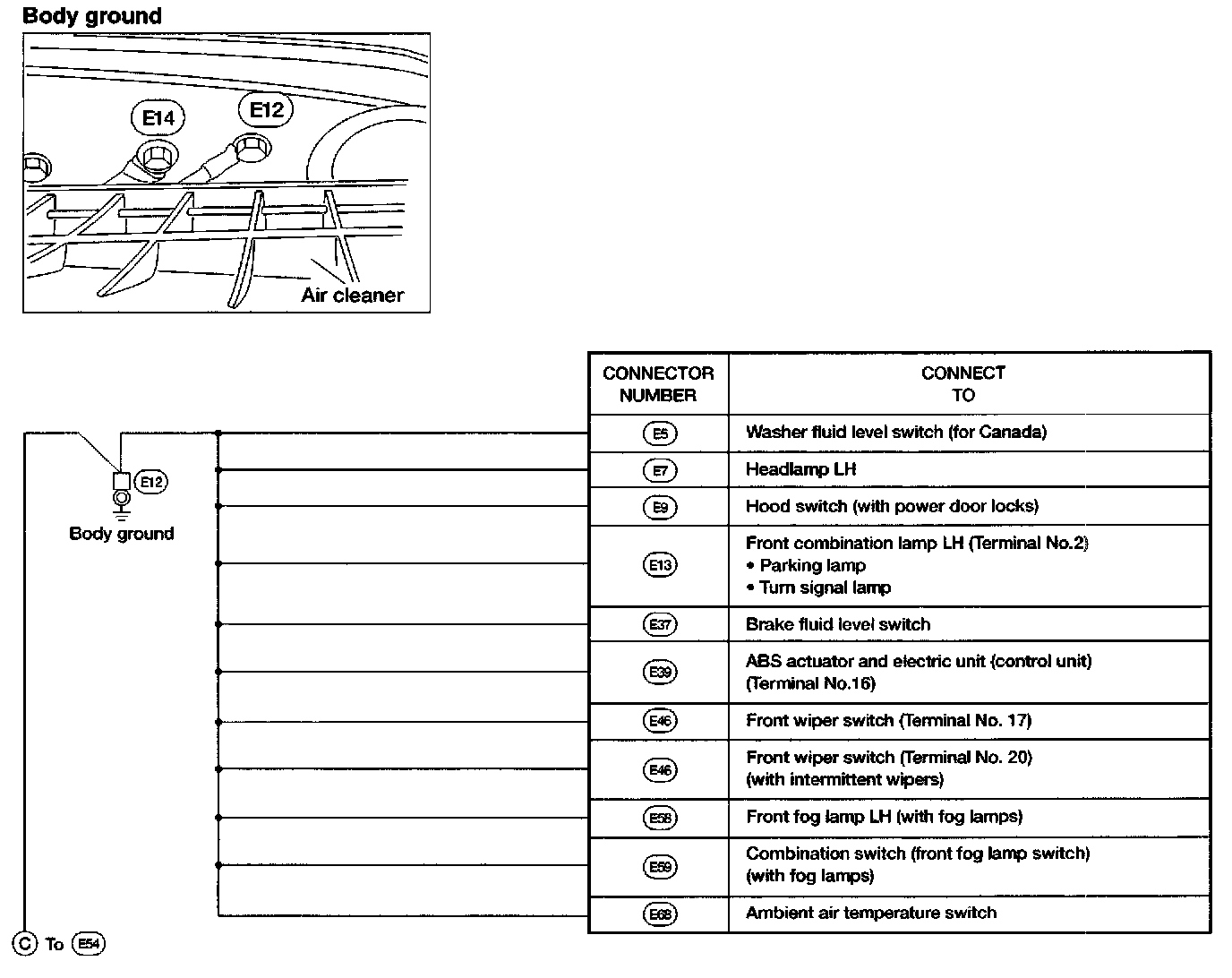

Part 1 Of 2:

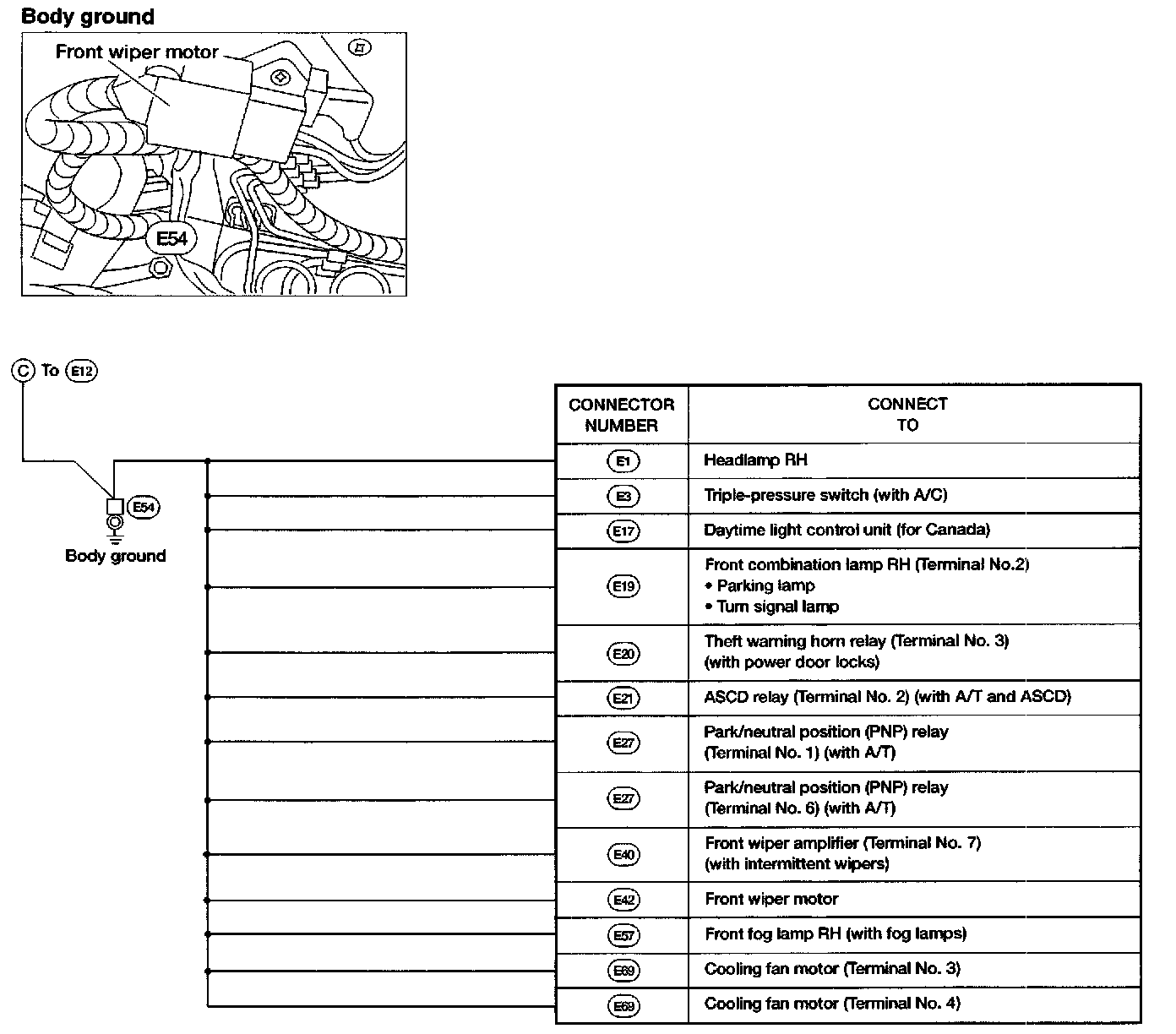

Part 2 Of 2:

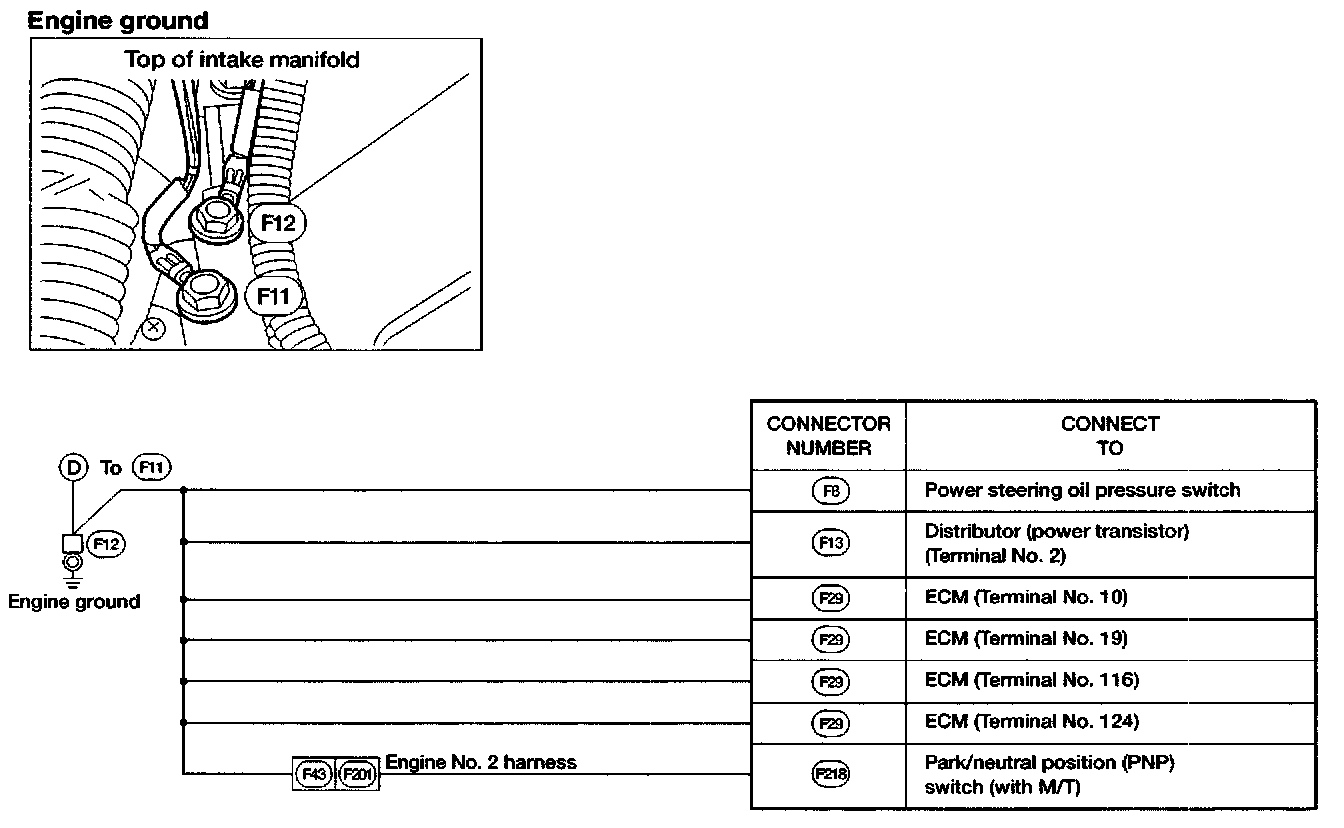

Engine Room Harness

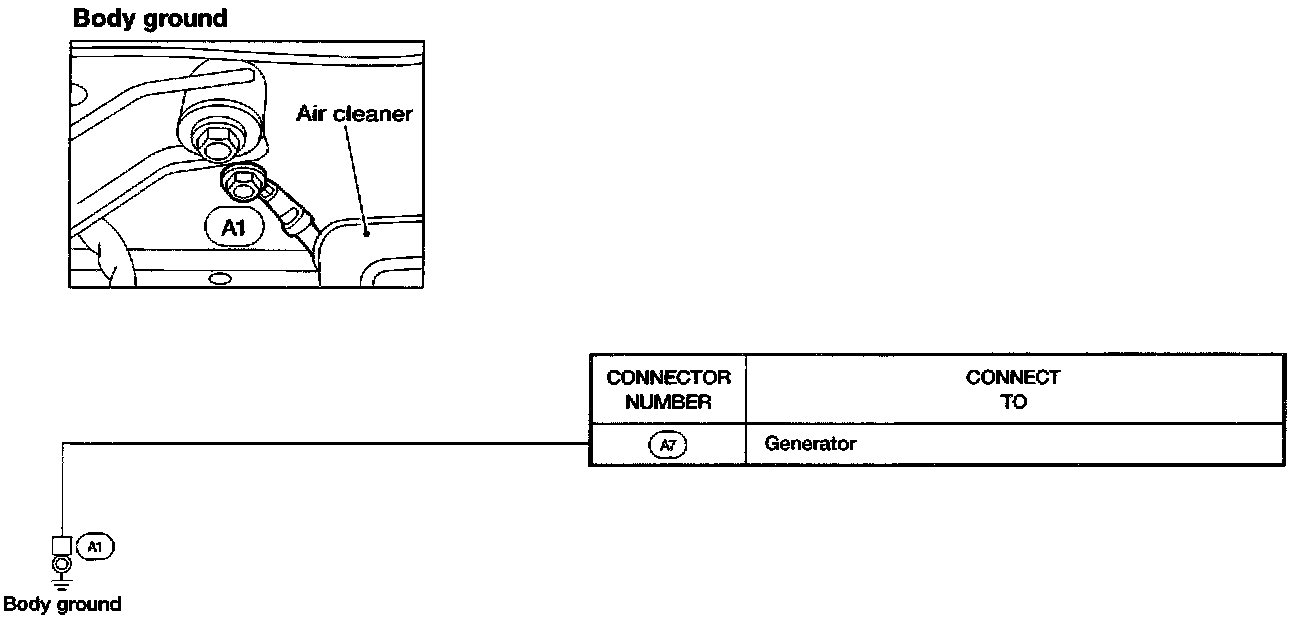

Generator Harness
