Alternator: Service and Repair

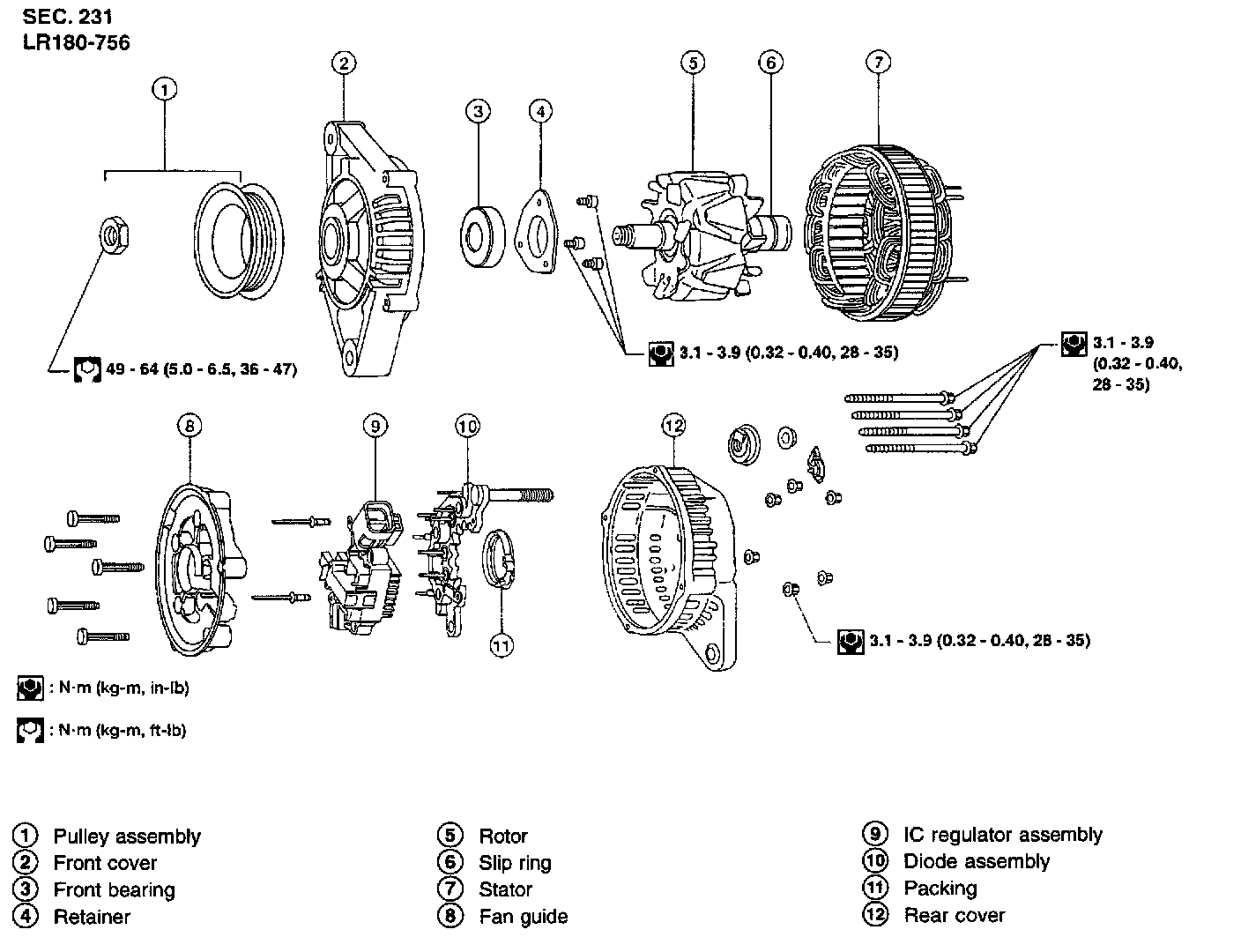

Construction

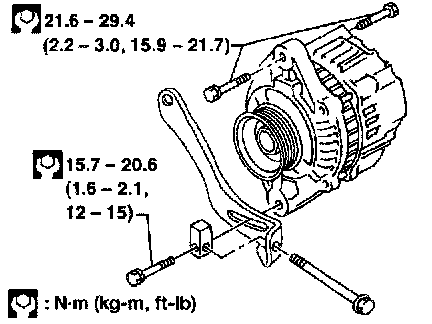

REMOVAL
1. Disconnect harness connectors.
2. Remove engine undercover.
3. Back off adjustment bolt, remove belt.
4. Remove 3 generator bolts and generator.

INSTALLATION
To install, reverse the removal procedure.
