Home >> Nissan-Datsun Truck >> 2000 >> Frontier XE Crew Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications

System Specifications





General Specifications (Front)

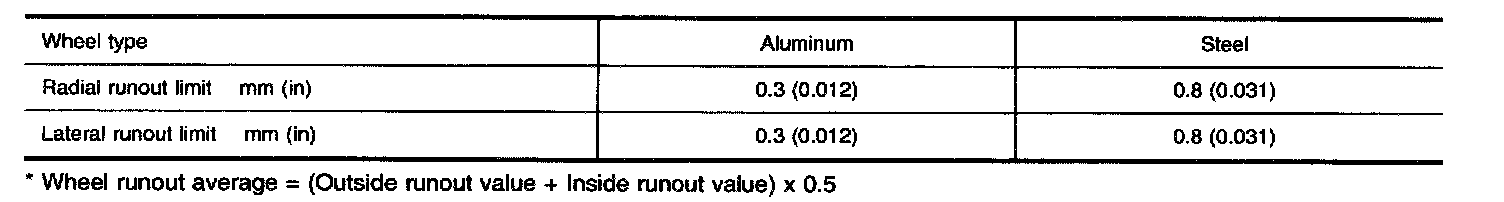

Wheel Runout Average





Upper Ball Joint








Lower Ball Joint

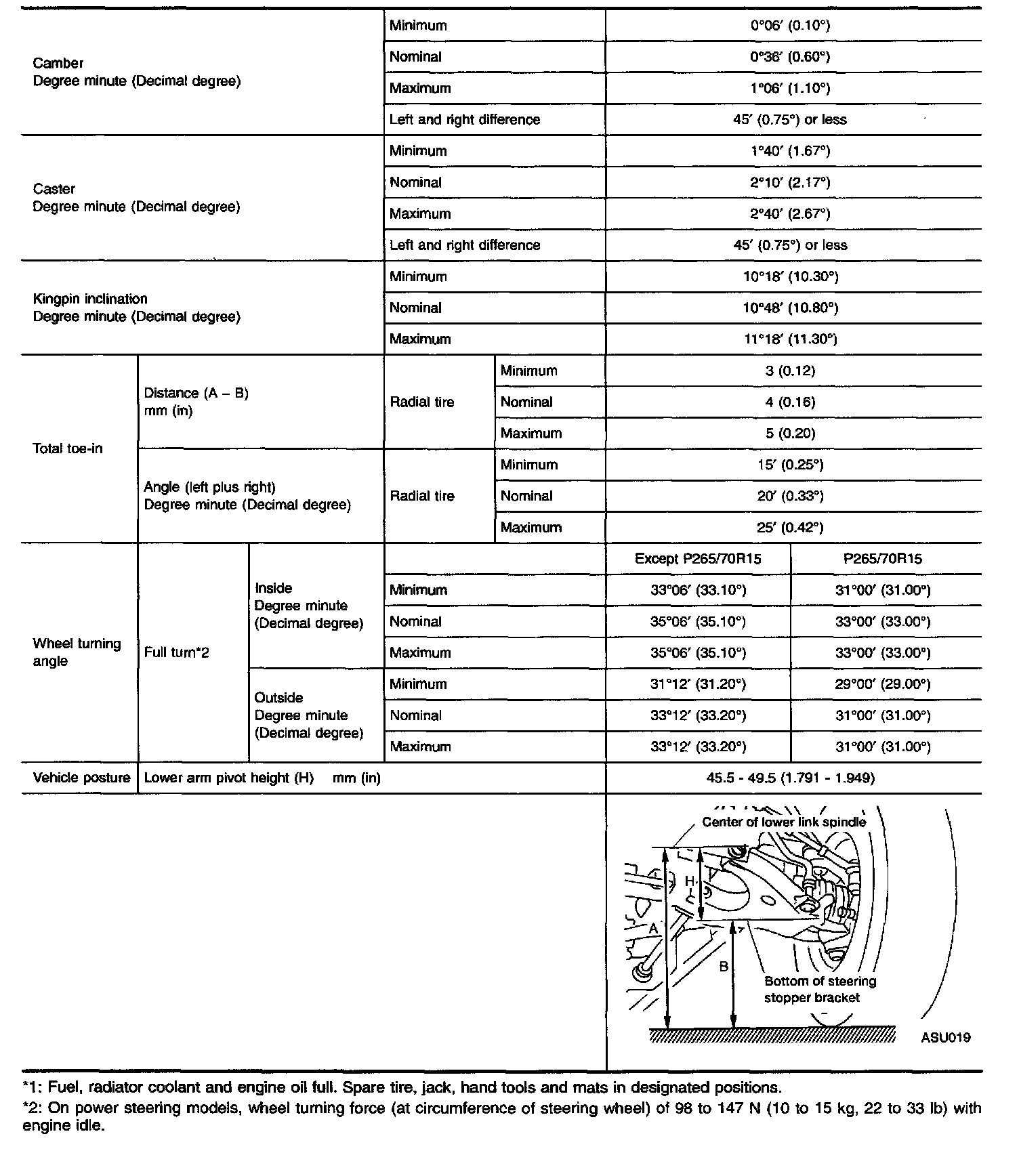

Wheel Alignment

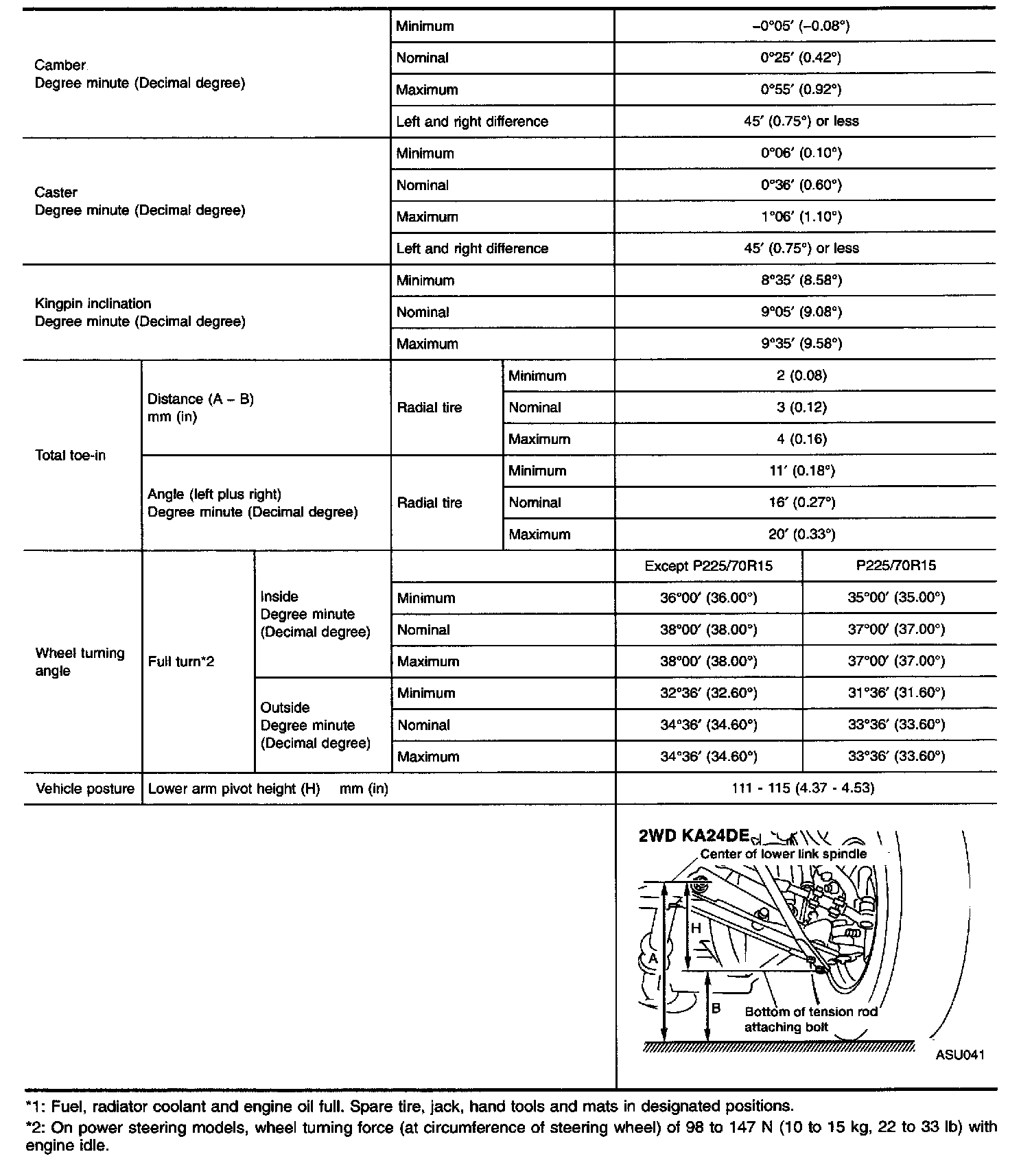

2WD KA24DE Models





2WD VG33E Models

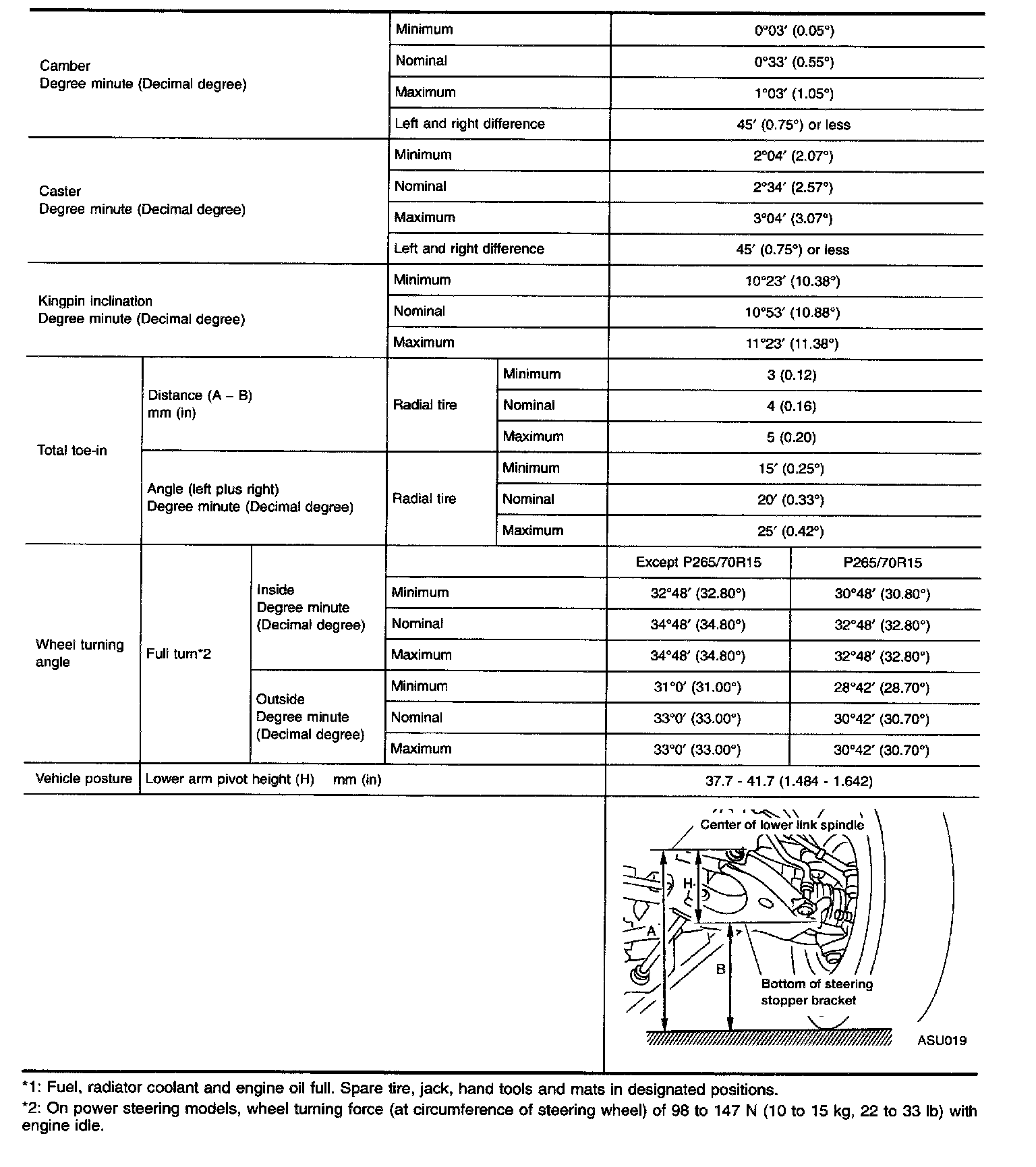

4WD Models
