Beginning With VIN #343314

Service Data and Specifications (SDS)

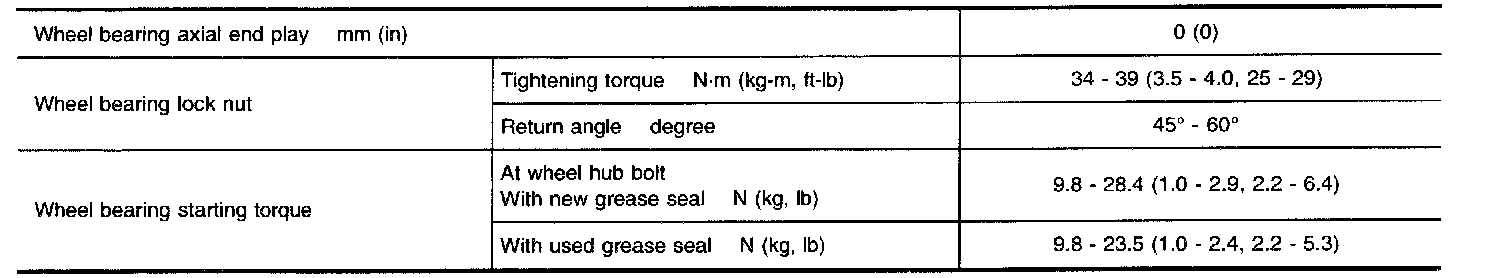

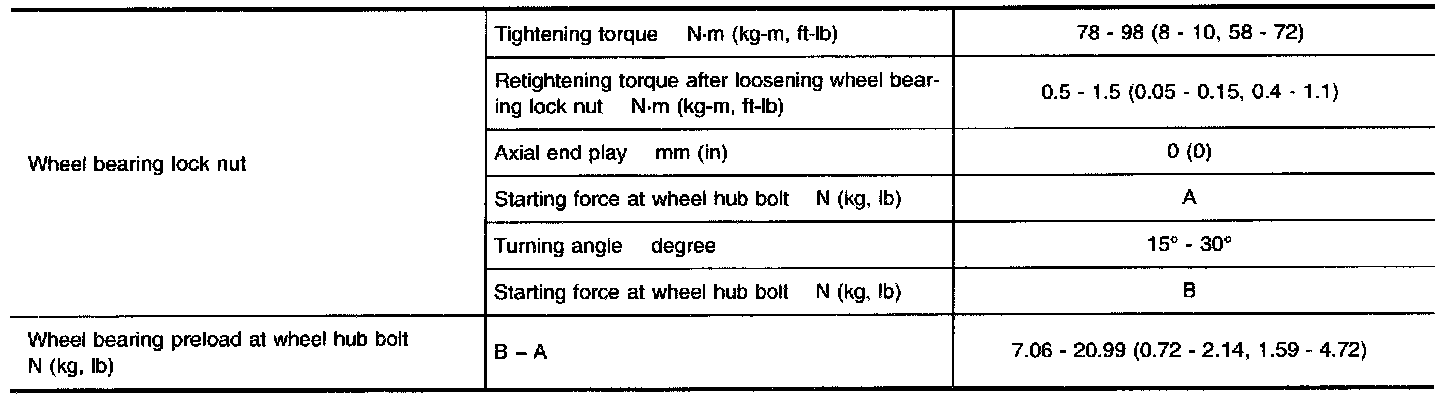

WHEEL BEARING (FRONT)





2WD Models





4WD Models

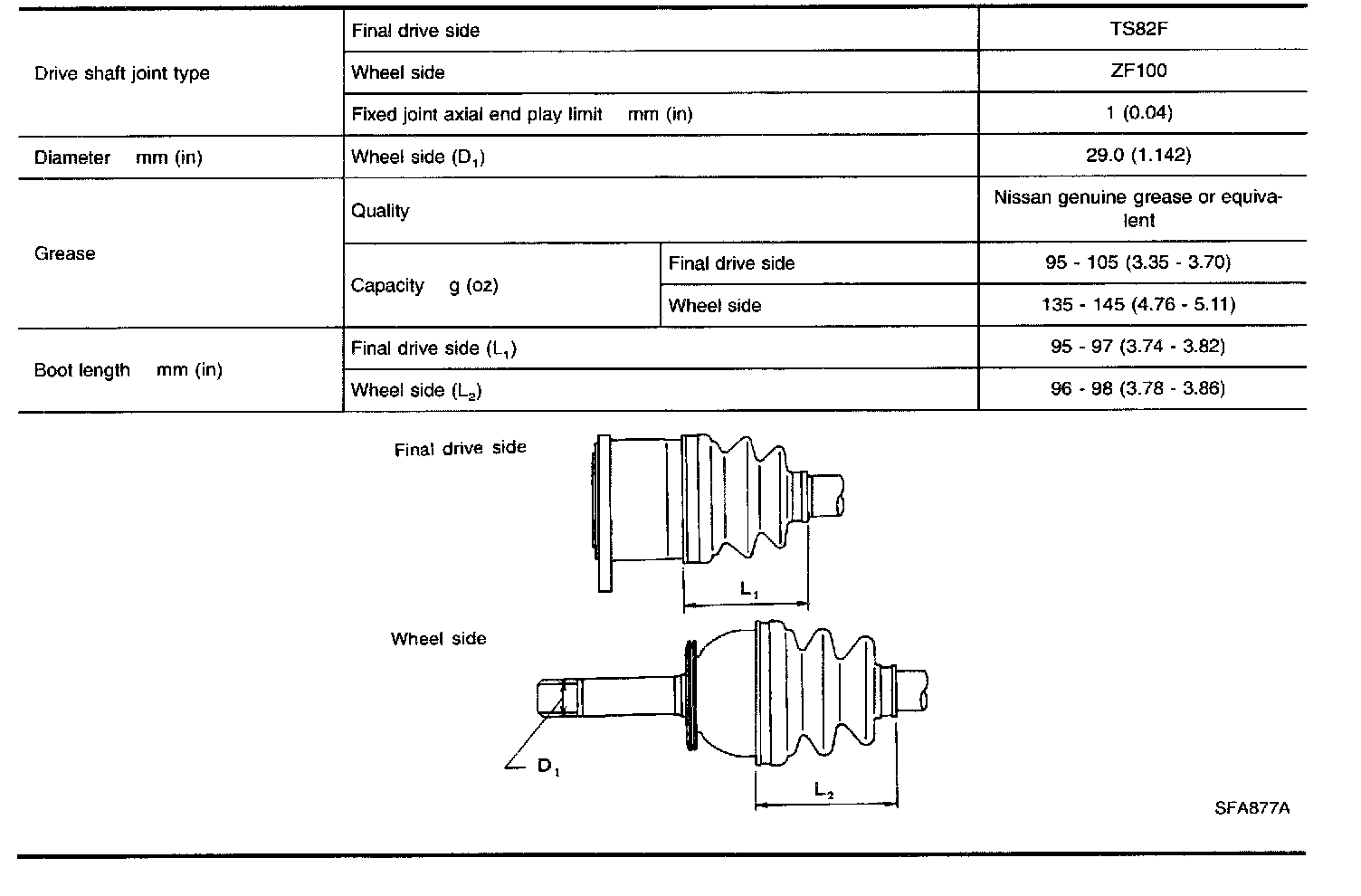

DRIVE SHAFT (4WD MODELS)





Drive Shaft Axial End Play

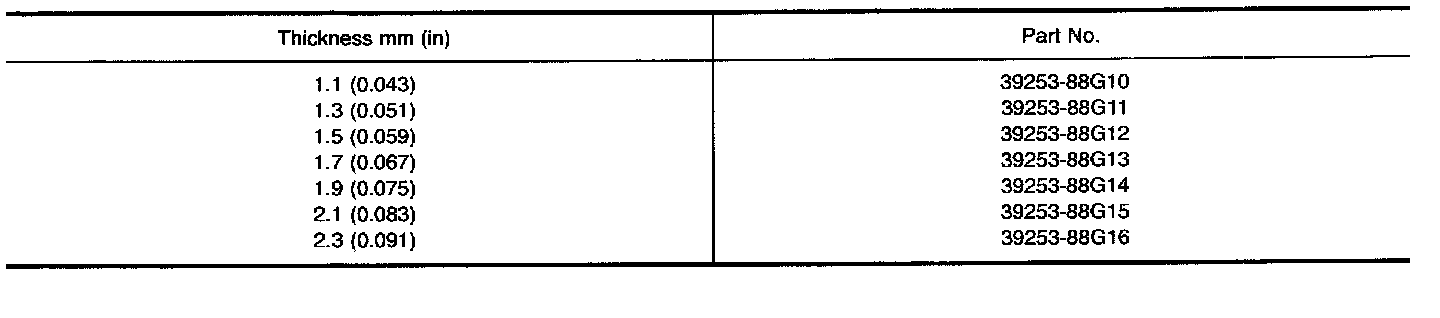

Drive Shaft End Snap Ring
