Home >> Nissan-Datsun Truck >> 2000 >> Frontier XE Crew Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Drive Axles, Bearings and Joints >> System Specifications >> Front >> Before VIN #343314

Before VIN #343314

Service Data and Specifications (SDS)

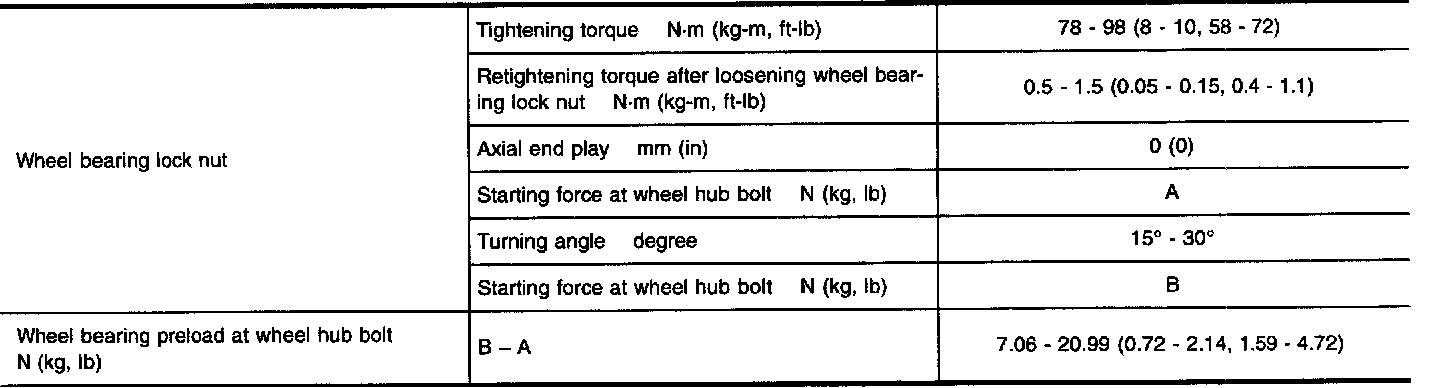

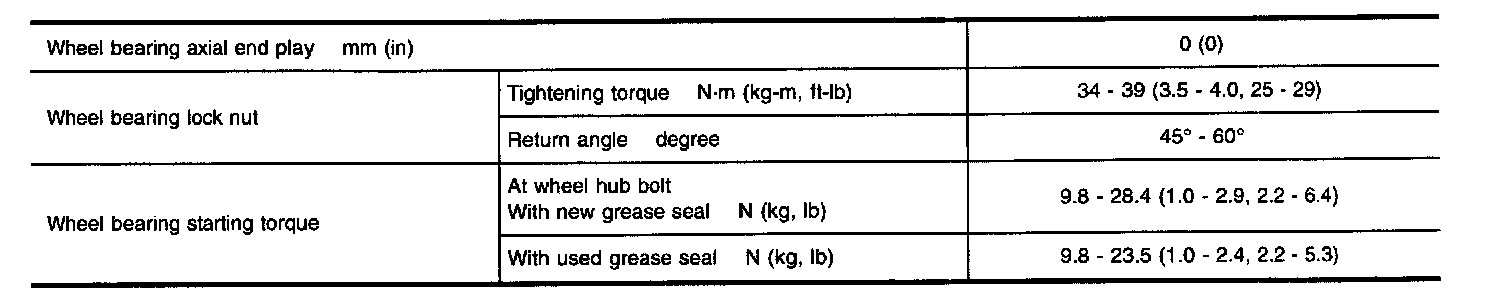

WHEEL BEARING (FRONT)





2WD Models





4WD Models

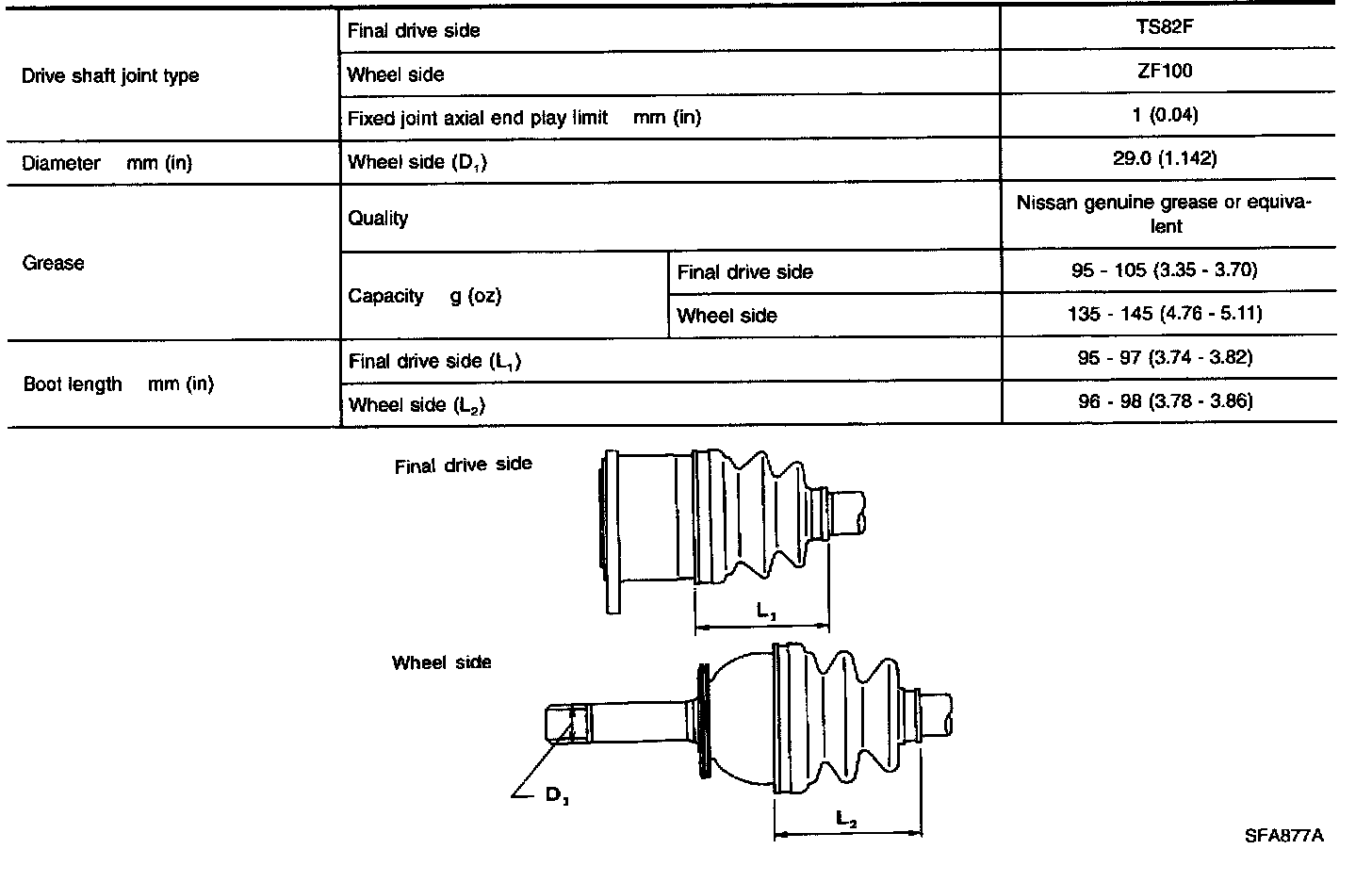

DRIVE SHAFT (4WD MODELS)





Drive Shaft Axial End Play

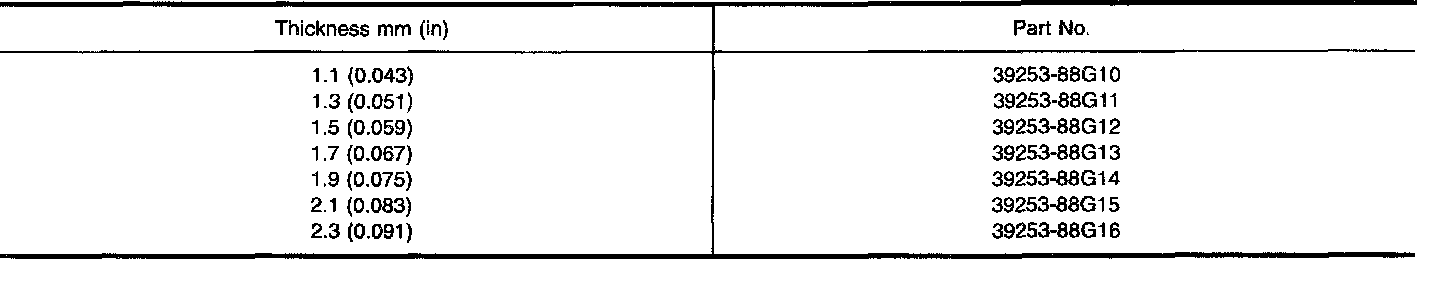

Drive shaft end snap ring
