Beginning With VIN #343314

SERVICE DATA AND SPECIFICATIONS (SDS)
R200A

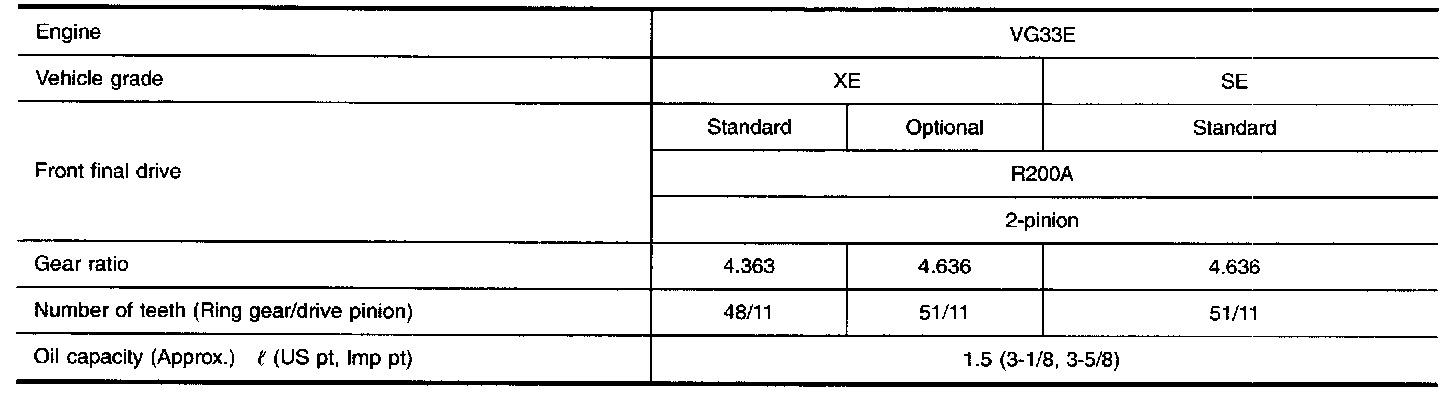

General Specifications





Ring Gear Runout

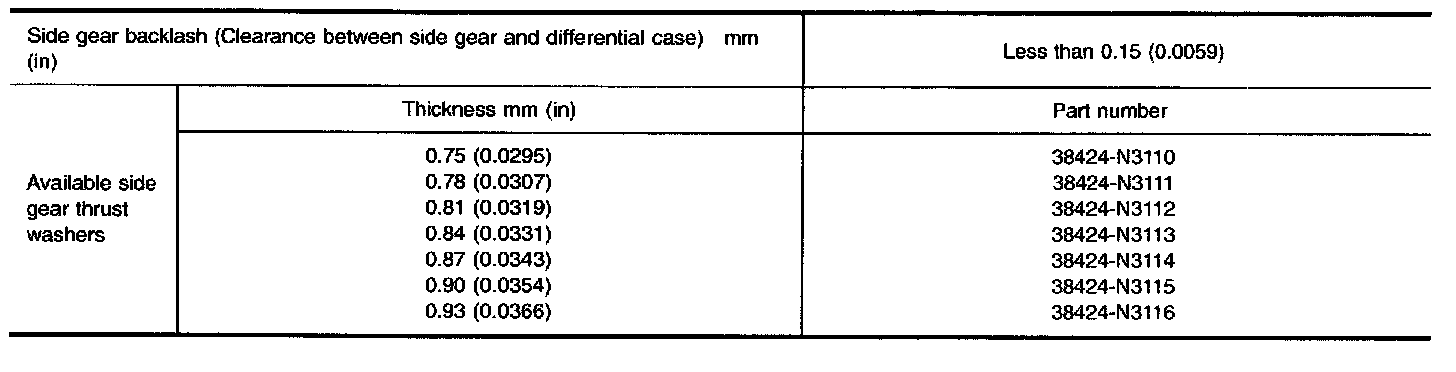

Side Gear Adjustment





Side Bearing Adjustment

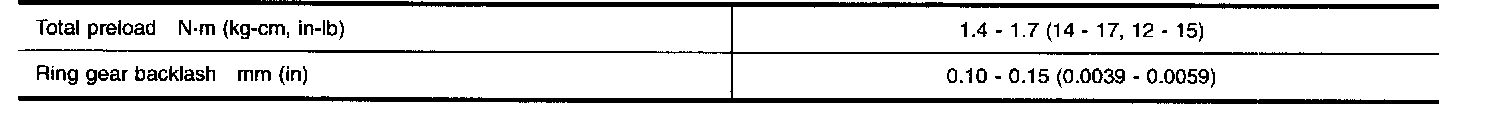

Total Preload Adjustment

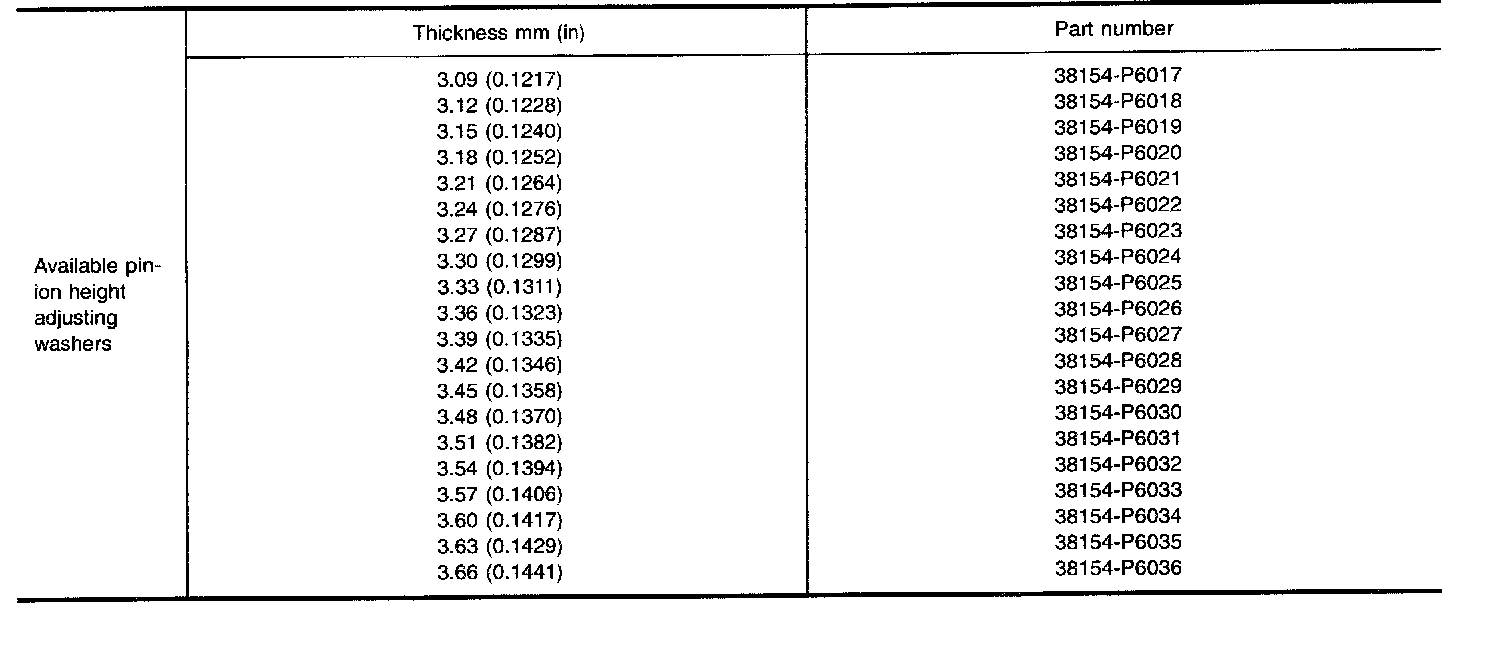

Drive Pinion Height Adjustment

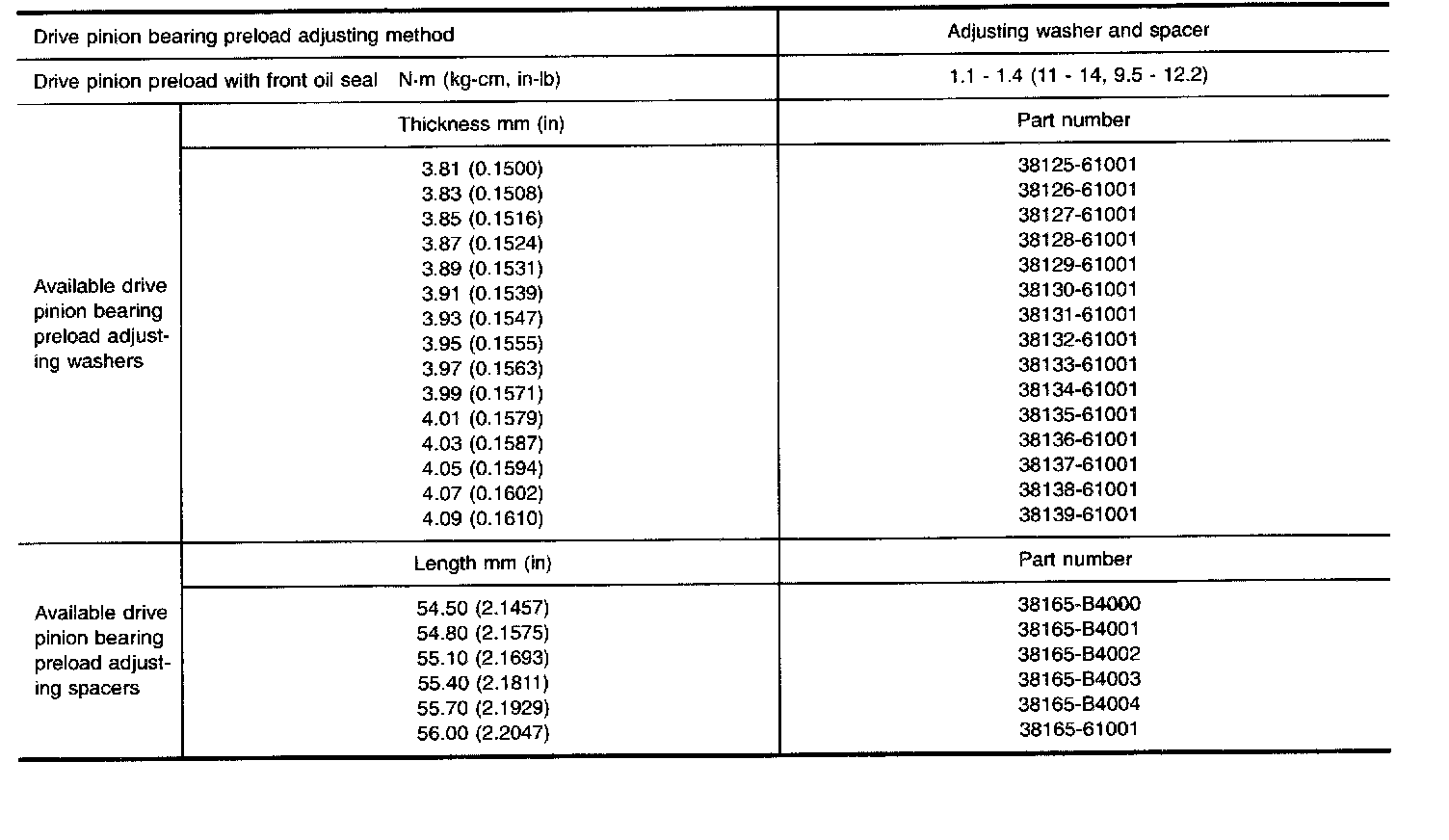

Drive Pinion Preload Adjustment
