Before VIN #343314

SERVICE DATA AND SPECIFICATIONS (SDS)
H233B

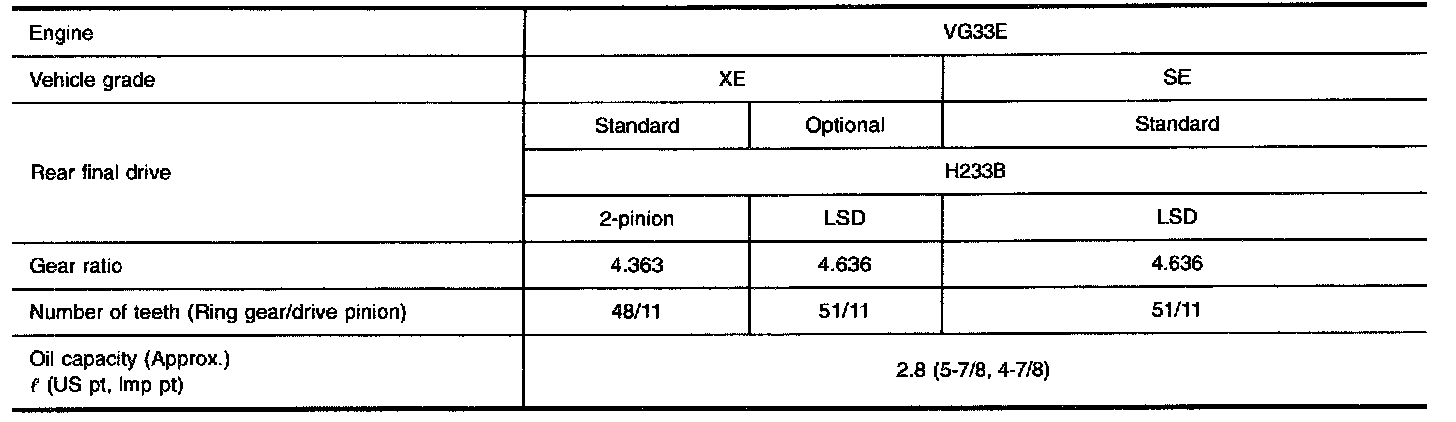

2WD & 4WD Model





Ring Gear Runout

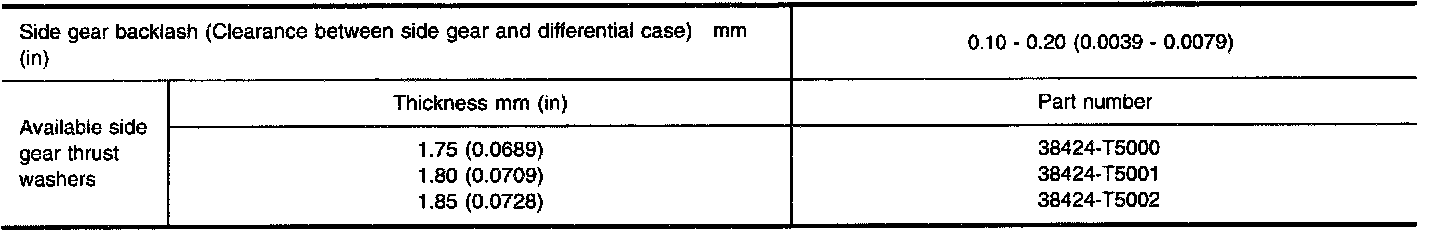

Side Gear Adjustment

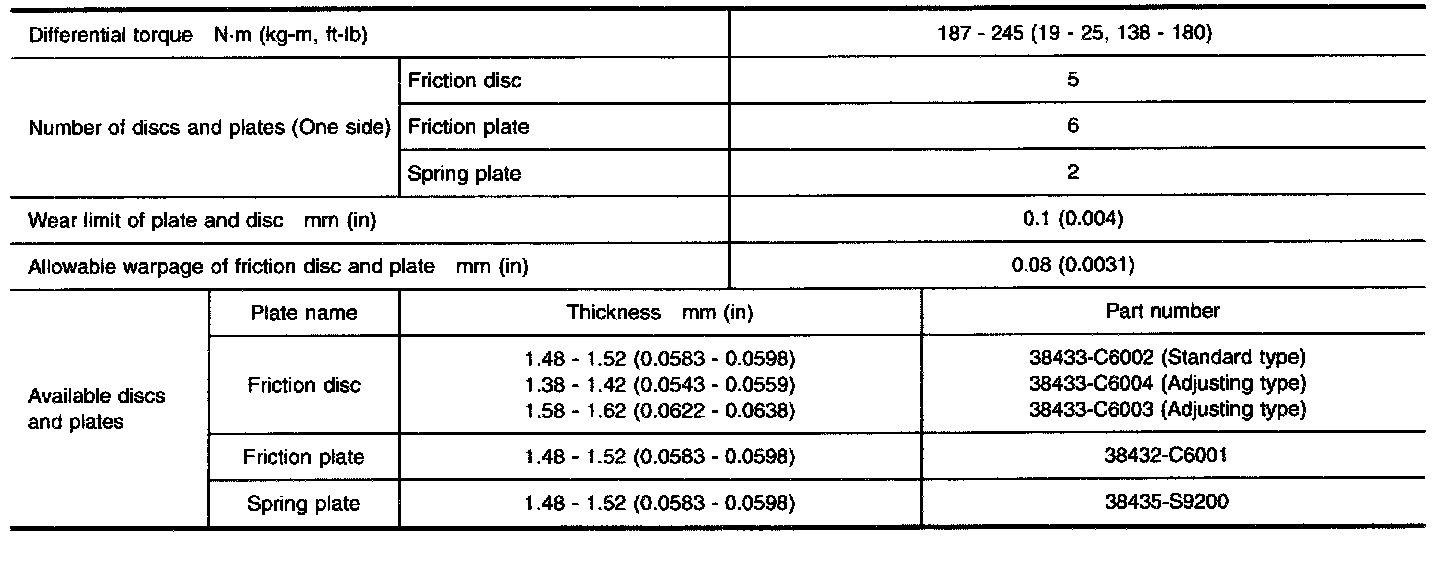

Differential Torque Adjustment (LSD Models)

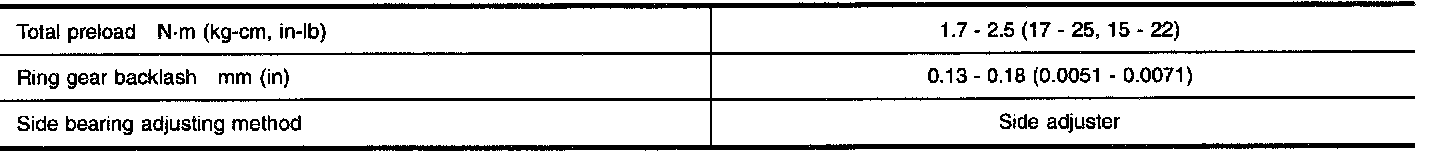

Total Preload Adjustment

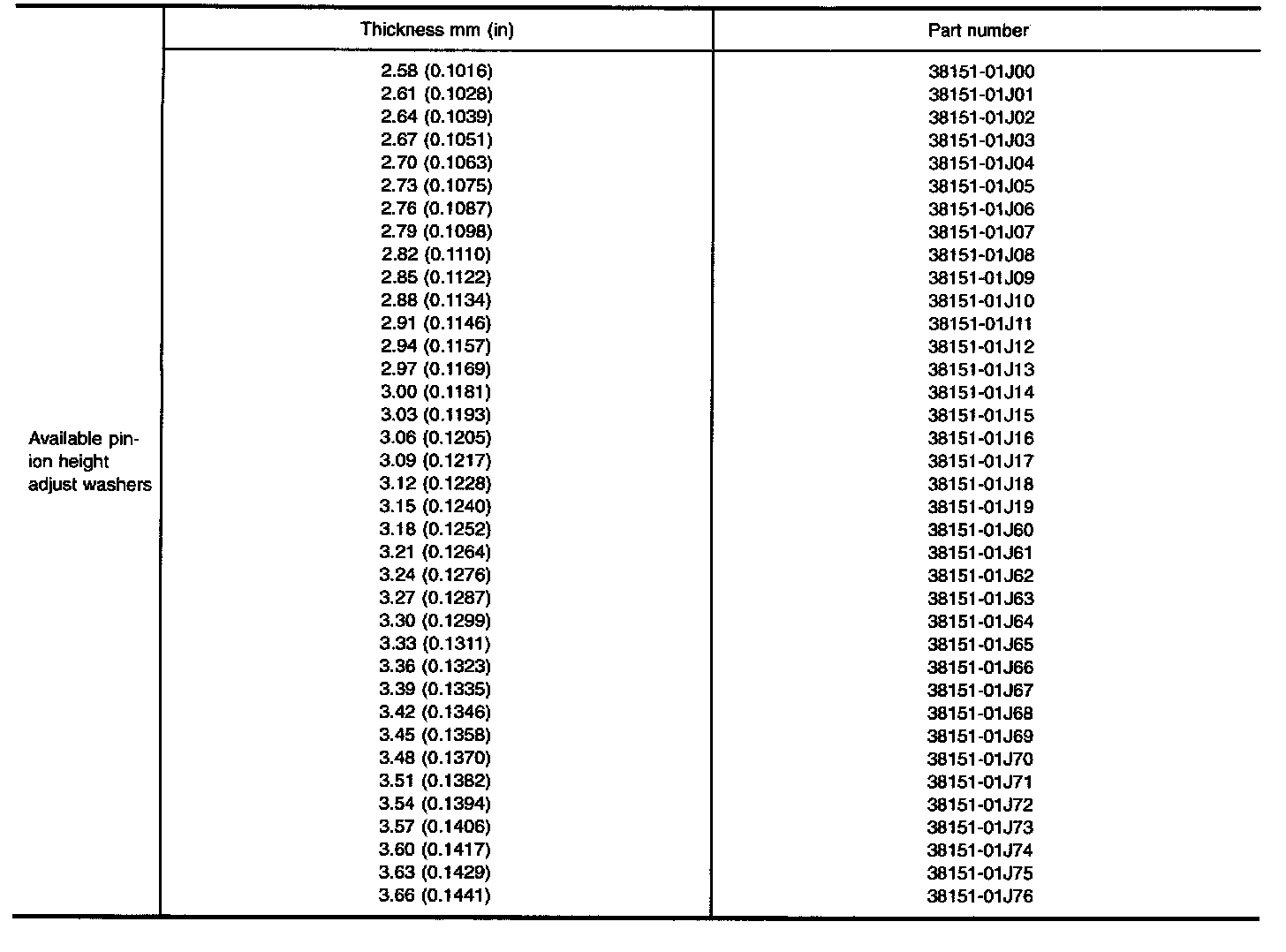

Drive Pinion Height Adjustment

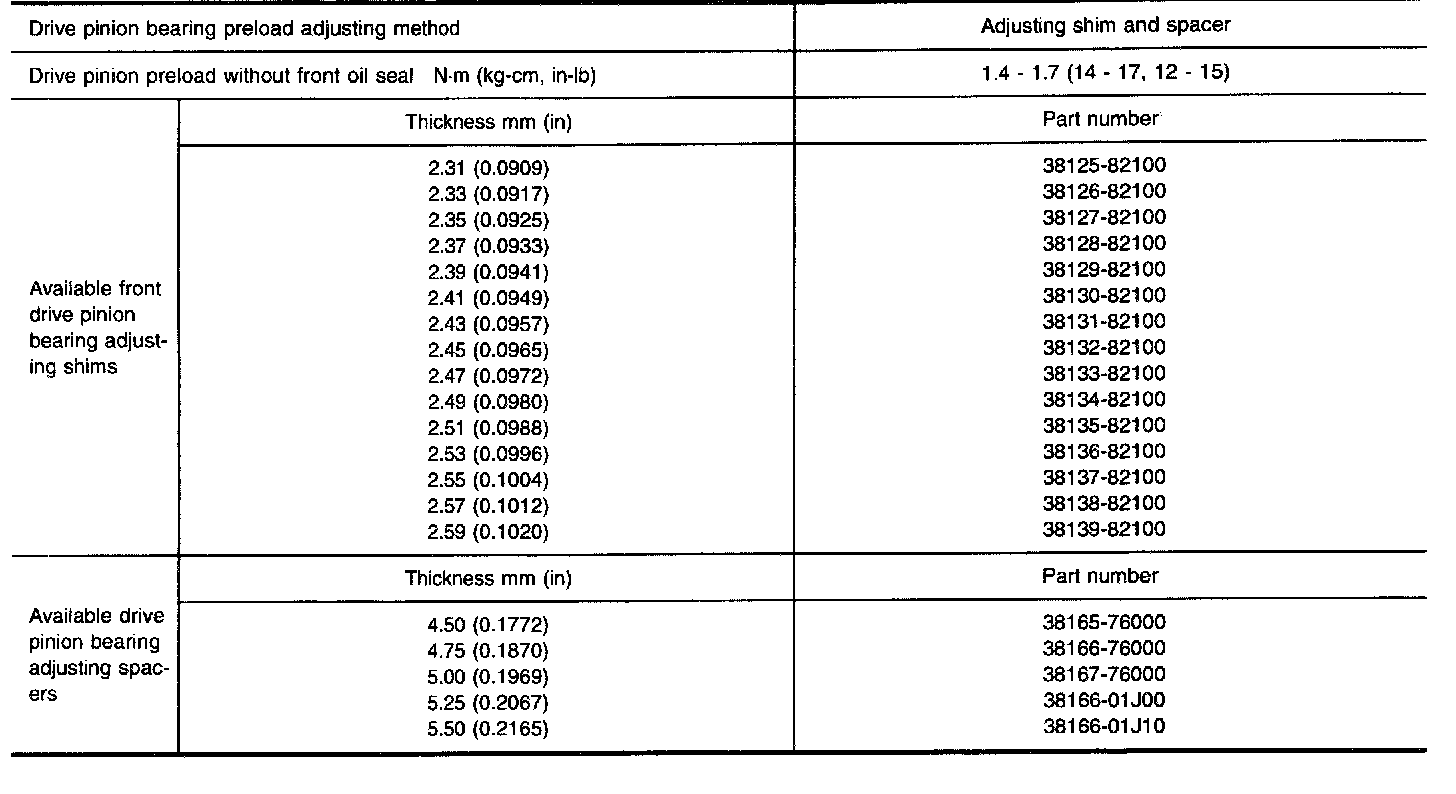

Drive Pinion Preload Adjustment
