Before VIN #343314

General Specifications





CLUTCH CONTROL SYSTEM





CLUTCH MASTER CYLINDER (with clutch damper)





CLUTCH OPERATING CYLINDER

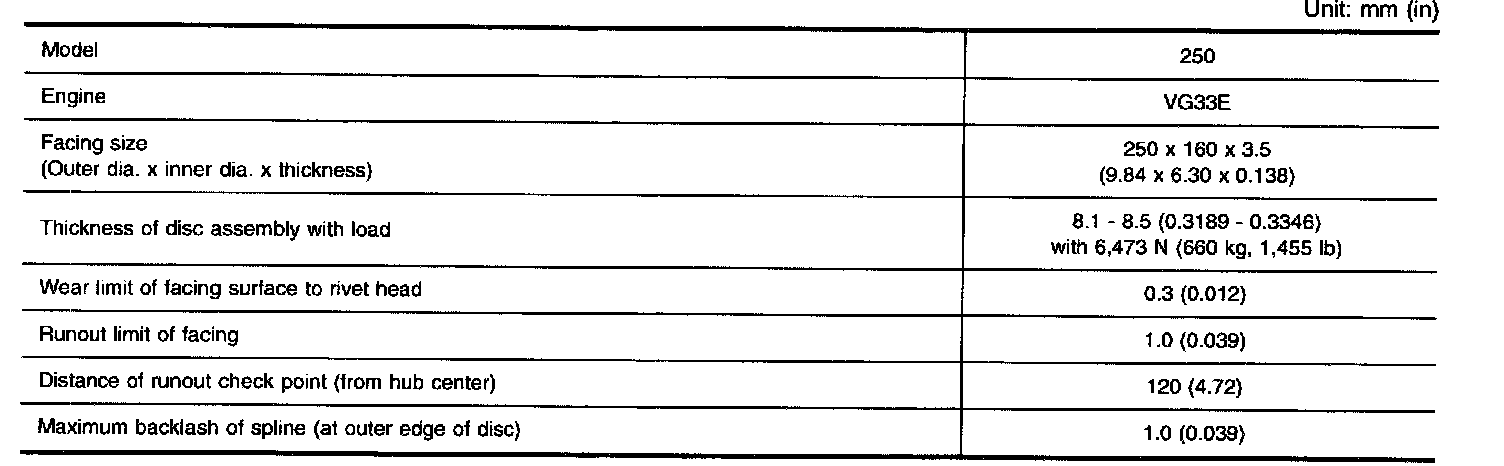

CLUTCH DISC

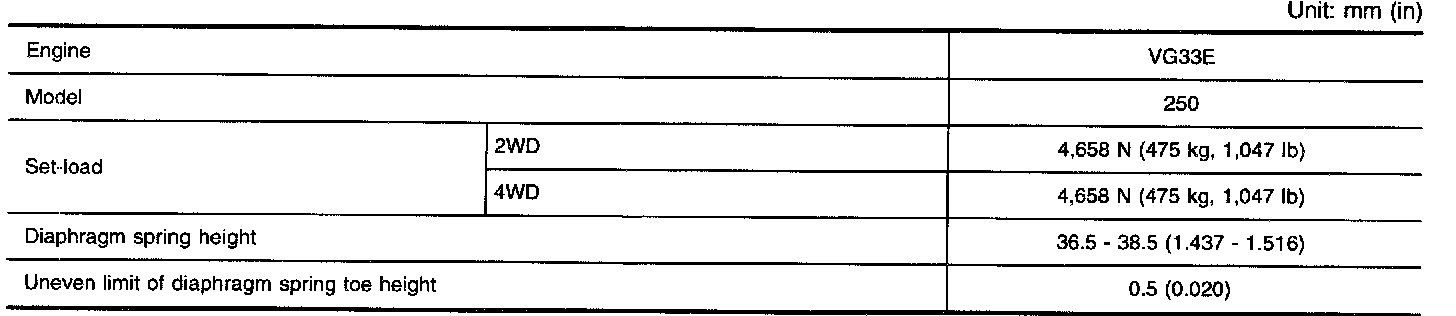

CLUTCH COVER

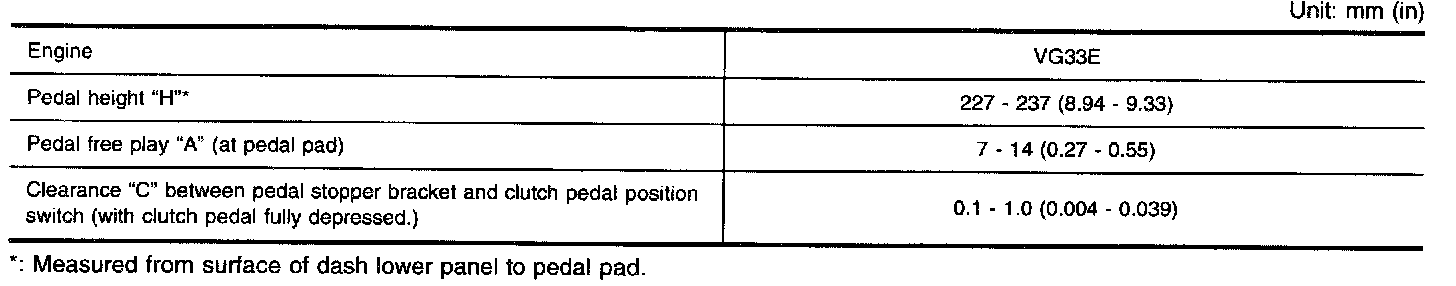

CLUTCH PEDAL
