Beginning With VIN 343314

Removal and Installation

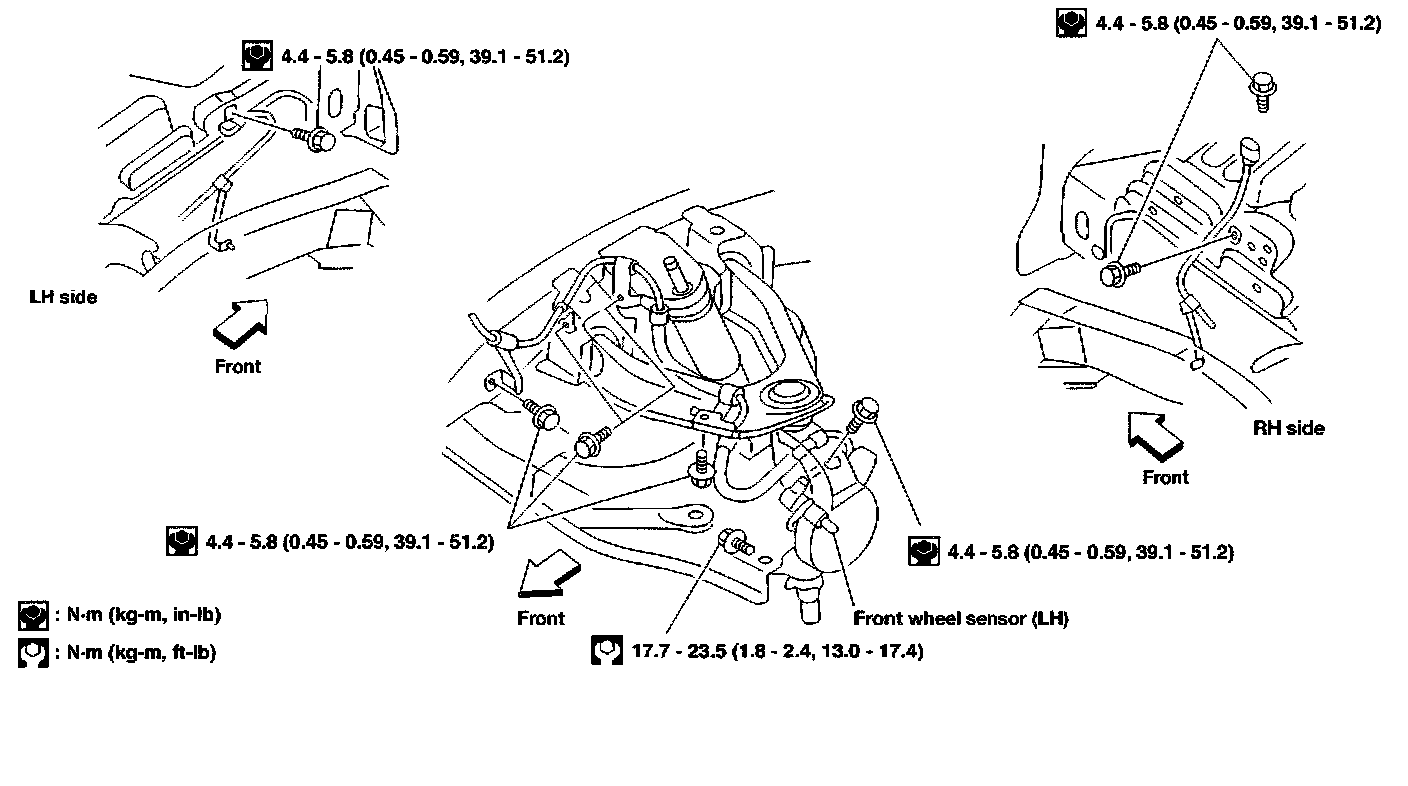

FRONT WHEEL SENSORS

CAUTION:
Be careful not to damage sensor edge and sensor rotor teeth. When removing the front wheel hub or rear axle shaft assembly, disconnect and remove the ABS wheel sensor from the assembly and move it away.

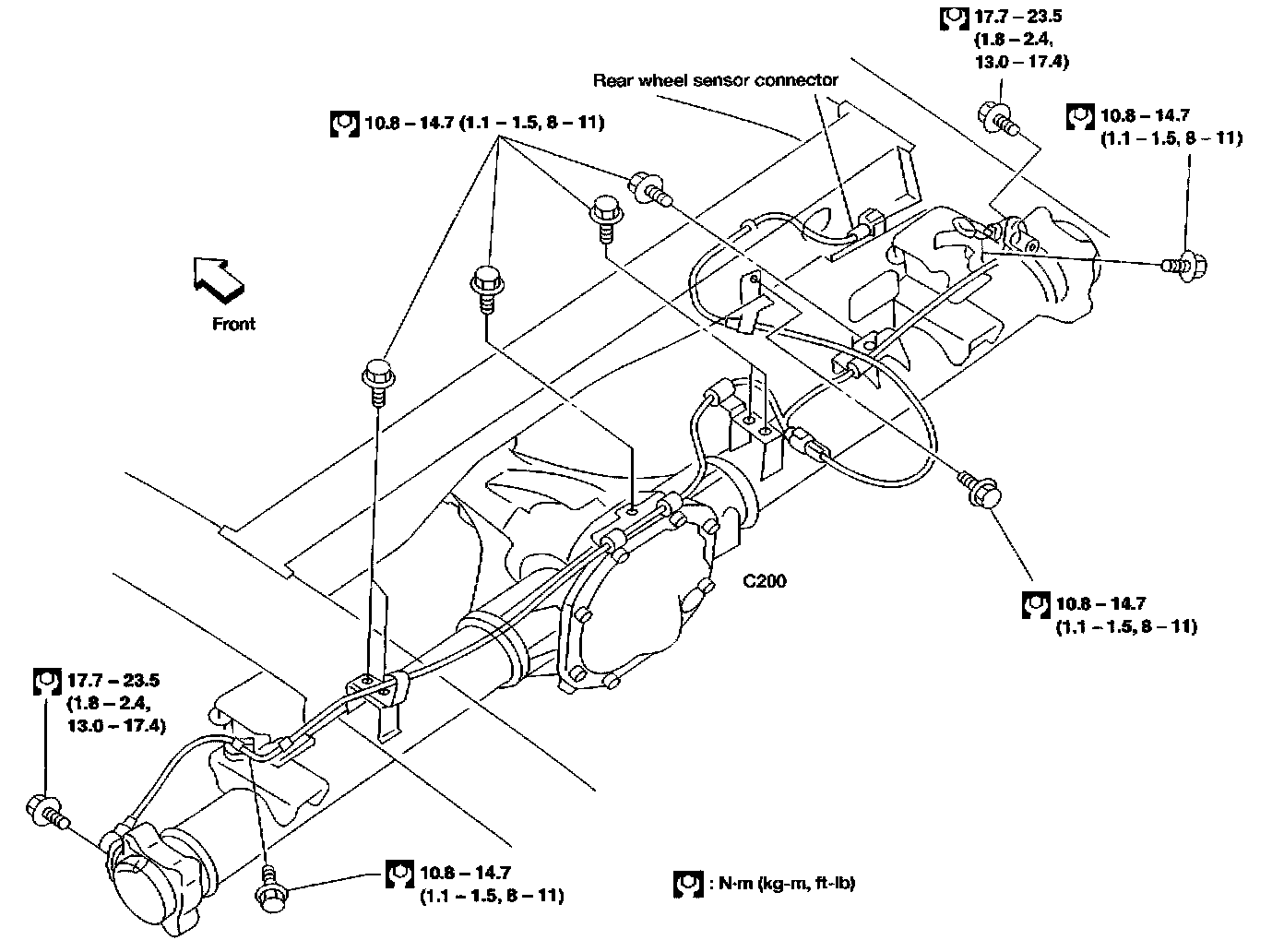

REAR WHEEL SENSORS
