Except Models Beginning With Serial Number 343314

CAUTION:
Do not use electrical test equipment on any circuit related to the SRS unless instructed to. SRS wiring harnesses are covered with yellow insulation either just before the harness connectors or on the complete harness, for easy identification.

Do not attempt to repair, splice or modify the SRS wiring harness. If the harness is damaged, replace it with a new one.

Keep ground portion clean.




DIAGNOSIS FUNCTION
The SRS Self-diagnosis results can be read by using "AIR BAG" warning lamp, "SEAT BELT" warning tamp and/or CONSULT-II. The reading of these results is accomplished using one of two modes - "User mode" and "Diagnosis mode".
The User mode is exclusively prepared for the customer (driver). This mode warns the driver of a system malfunction through the operation of the "AIR BAG" warning lamp and/or the "SEAT BELT" warning lamp. The Diagnosis mode allows the technician to locate and inspect the malfunctioning part.

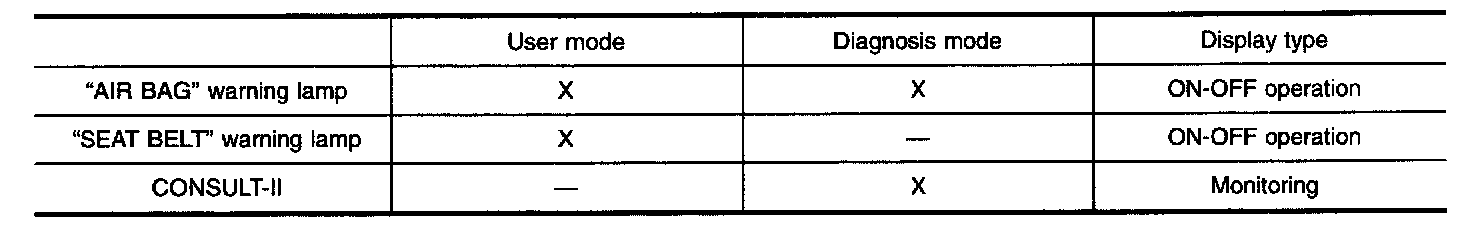

The mode applications for the "AIR BAG" warning lamp, "SEAT BELT" warning lamp and CONSULT-II are as follows:

HOW TO CHANGE SELF DIAGNOSIS MODE - Without CONSULT




From User Mode to Diagnosis Mode

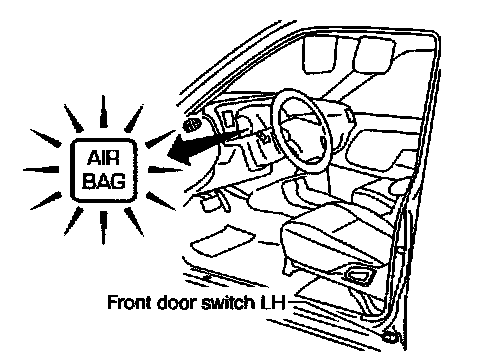

Diagnosis mode can be activated only when a malfunction is detected, by pressing the front door switch LH at least 5 times within 7 seconds after turning the ignition switch ON. SRS will not enter Diagnosis mode if no malfunction is detected.

From Diagnosis Mode to User Mode

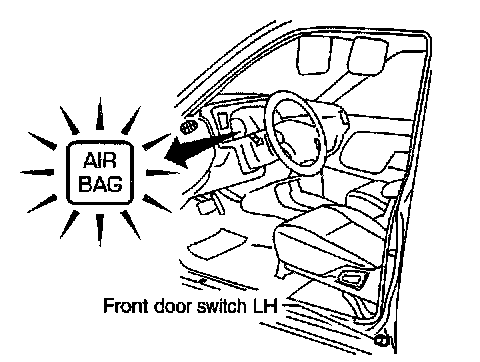

To return to User mode while a malfunction is being detected, turn ignition switch OFF, then back ON and press the front door switch LH at least 5 times within 7 seconds.

After a malfunction is repaired, turn ignition switch OFF for at least one second, then back ON. Diagnosis mode returns to User mode.

Checking SRS operation by using "AIR BAG" warning lamp - User mode




1. After turning ignition switch from OFF to ON, "AIR BAG" warning lamp operates.




2. Compare "AIR BAG" warning lamp operation to the following chart.

NOTE: If "AIR BAG" warning lamp operates differently from the operations shown above, refer to "AIR BAG" warning lamp operation - Diagnosis mode -, DIAGNOSTIC PROCEDURE 6 Diagnostic Procedure 6 (step 4). Then repair as necessary.
