Except Models Beginning With Serial # 343314

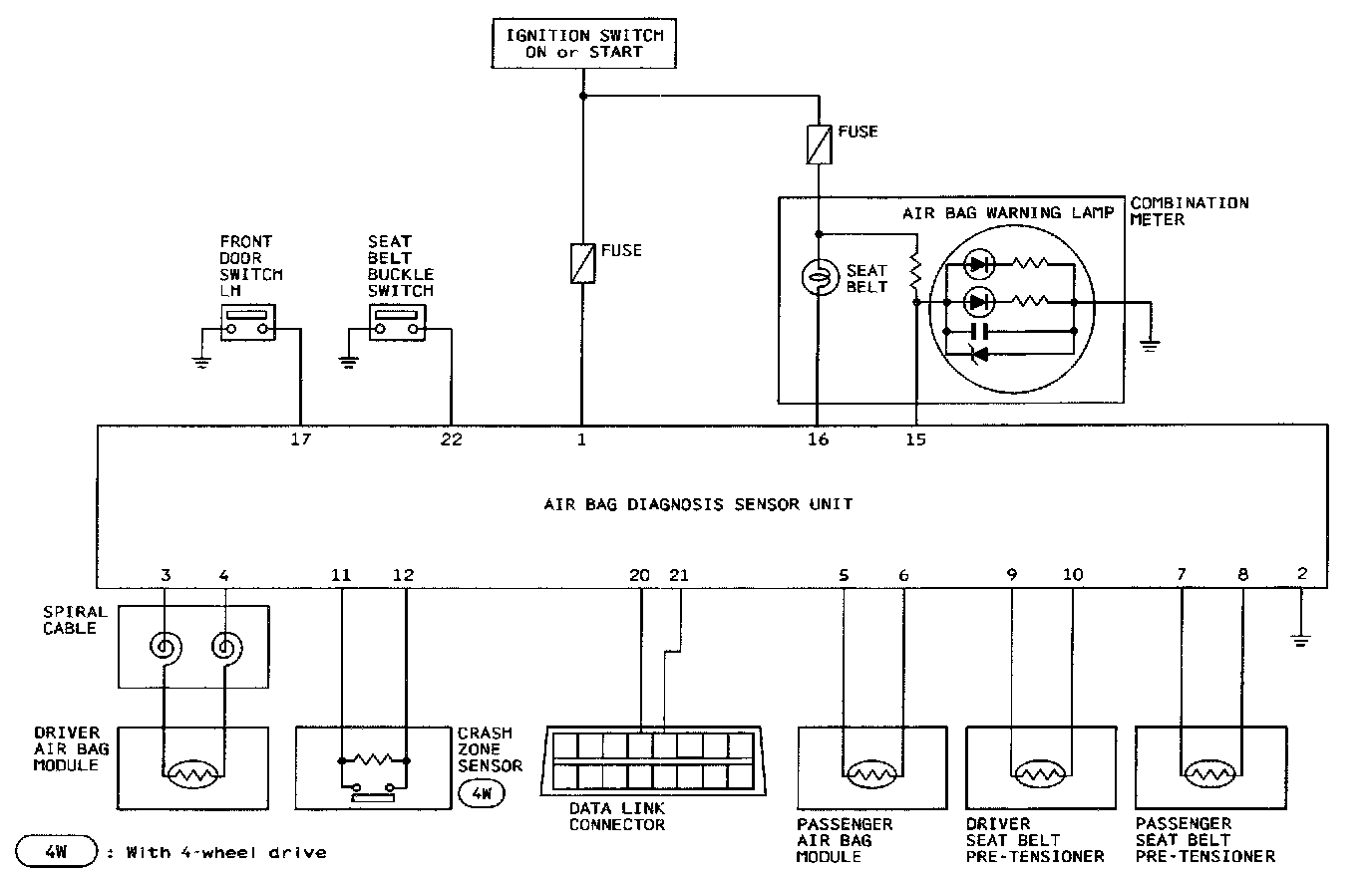

Schematic

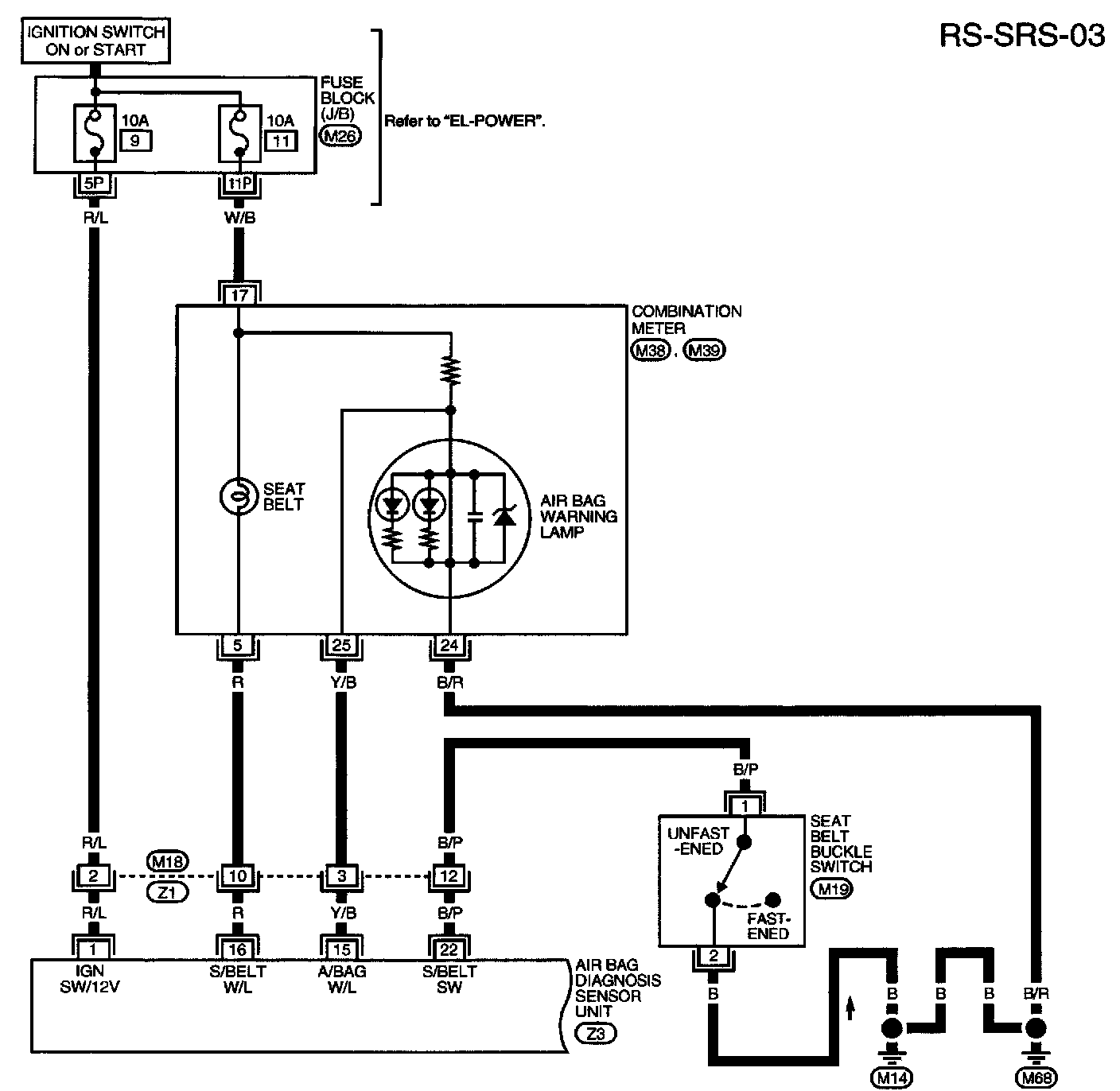

(Part 1 of 2)
Air Bag Diagnosis Sensor Unit
Combination Meter
Fuse Block (J/B)
Ignition Switch ON or START
Seat Belt Buckle Switch

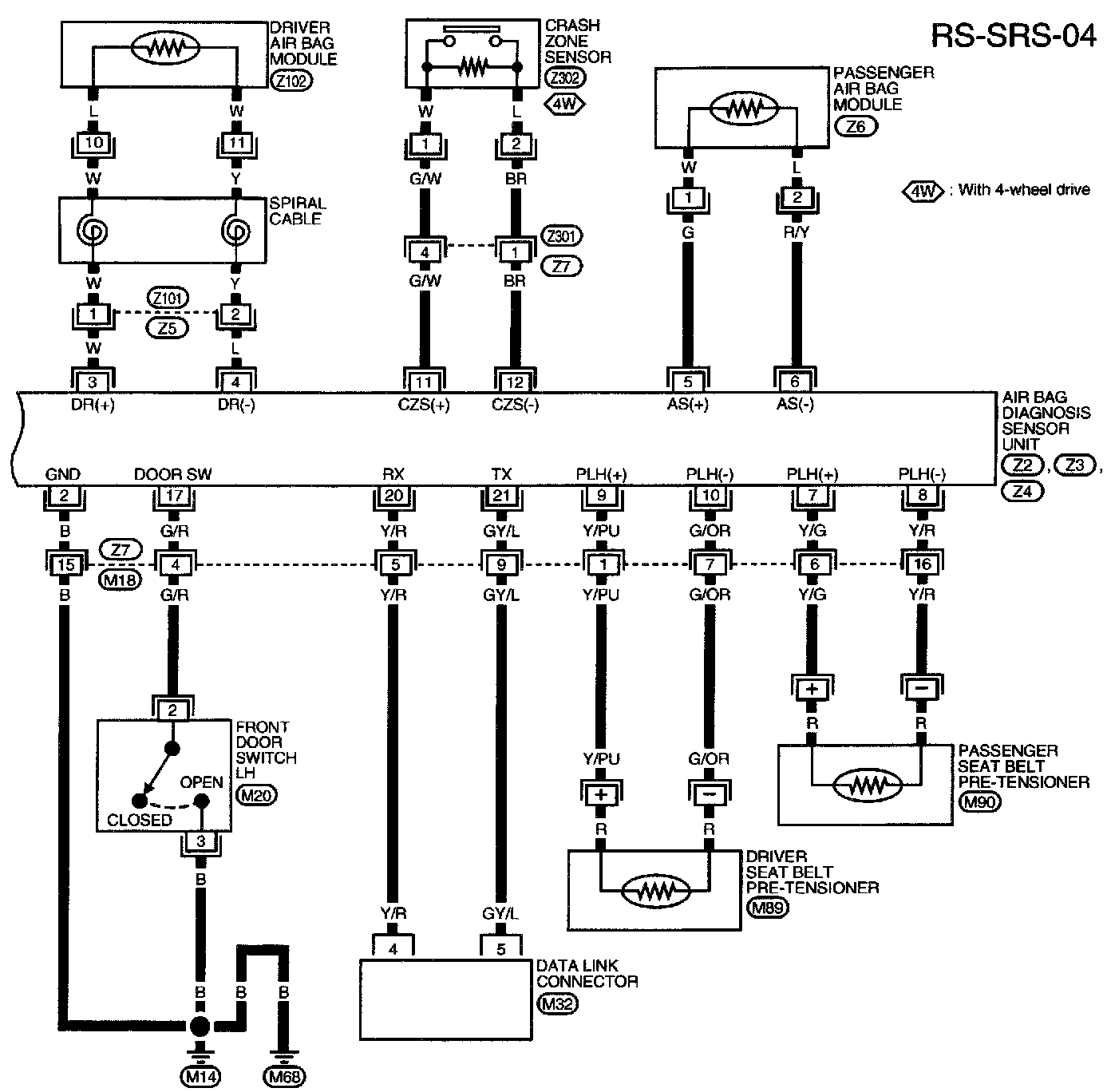

(Part 2 of 2)
Air Bag Diagnosis Sensor Unit
Crash Zone Sensor
Data Link Connector
Driver Seat Belt Pre-Tensioner
Driver Air Bag Module
Front Door Switch LH
Passenger Air Bag Module
Passenger Seat Belt Pre-Tensioner
Spiral Cable

Circuit Diagrams

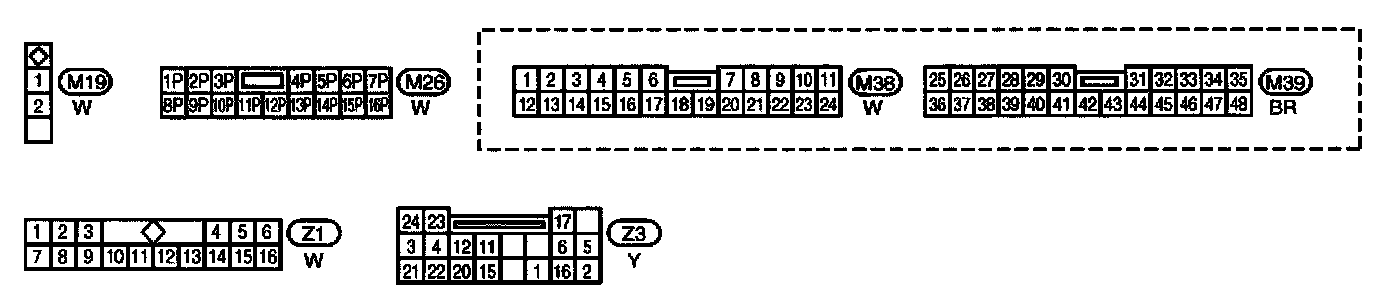

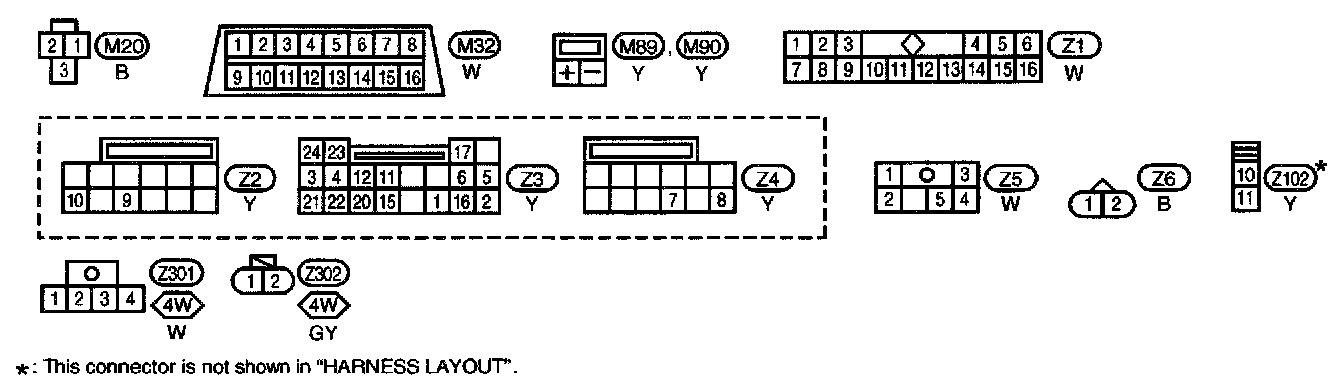

Circuit Connectors
