Before VIN #343314

TCM Terminals and Reference Value
PREPARATION

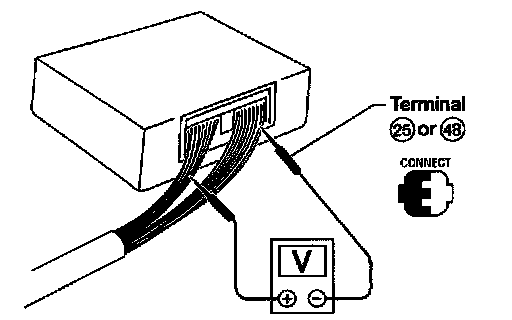

- Measure voltage between each terminal and terminal 25 or 48 by following "TCM INSPECTION TABLE".

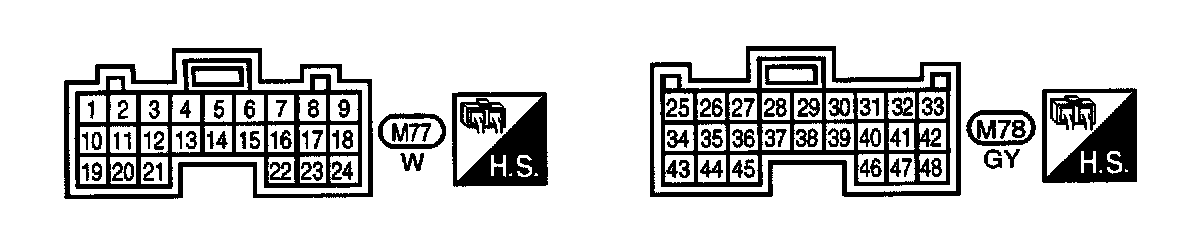

TCM HARNESS CONNECTOR TERMINAL LAYOUT

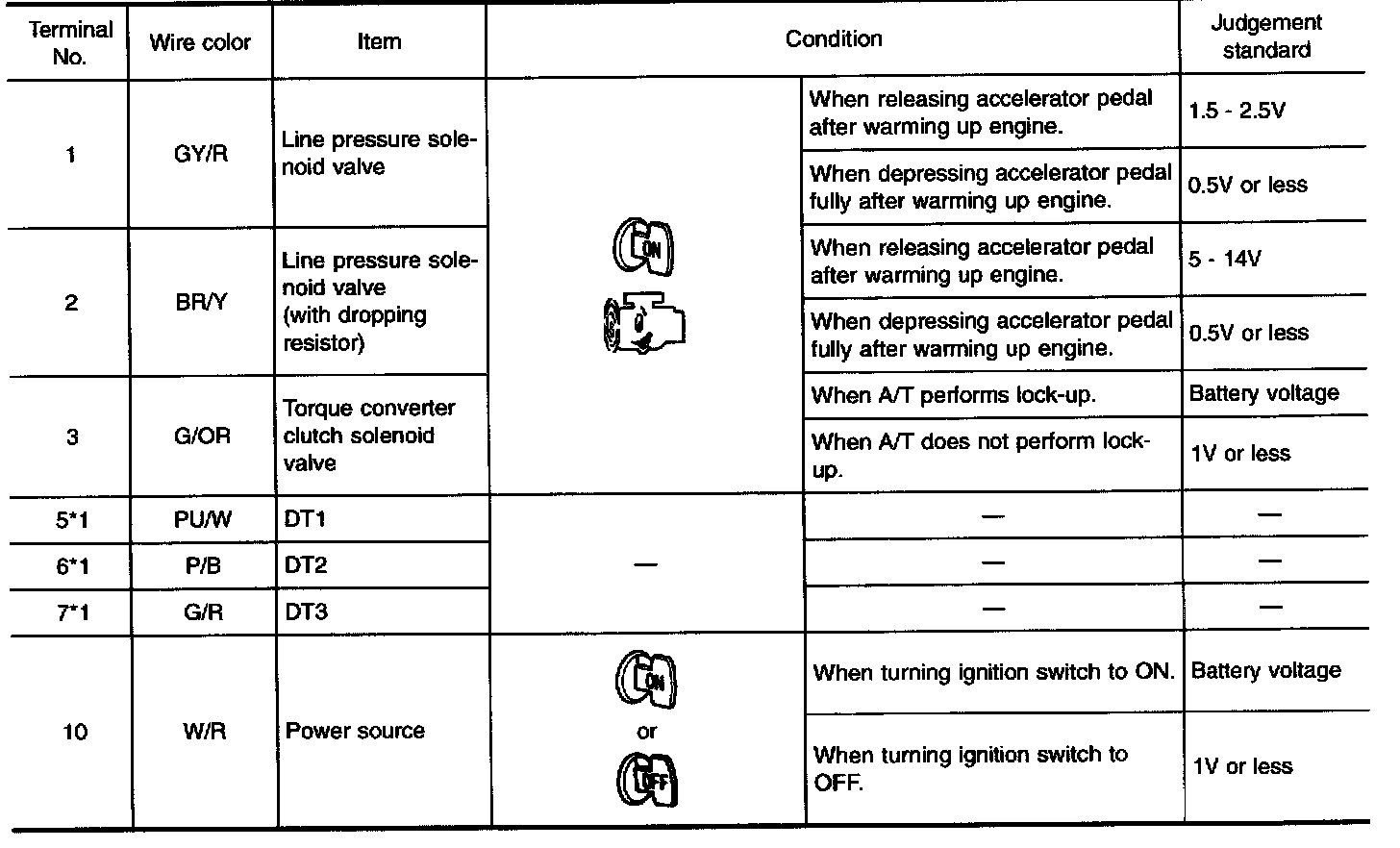

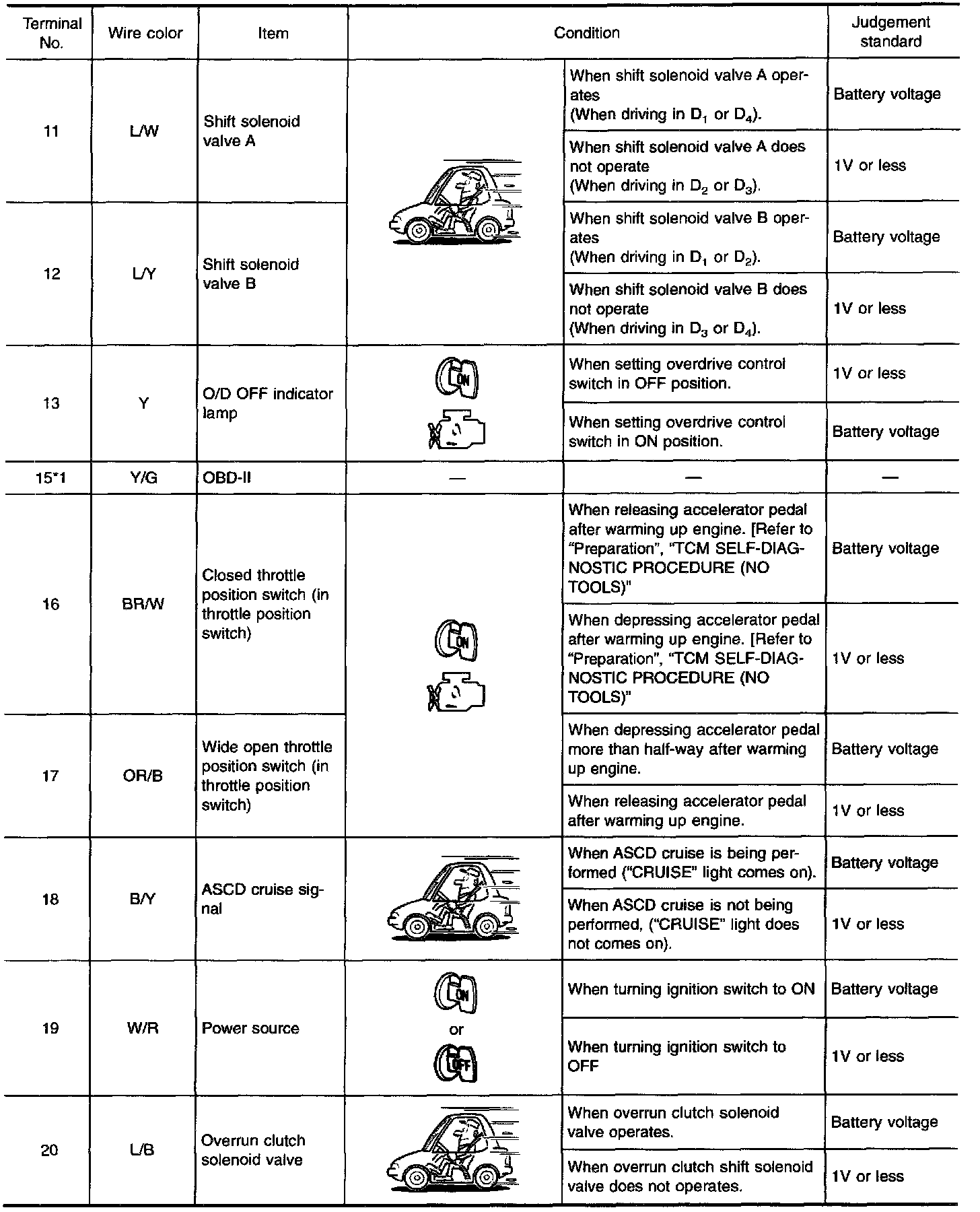

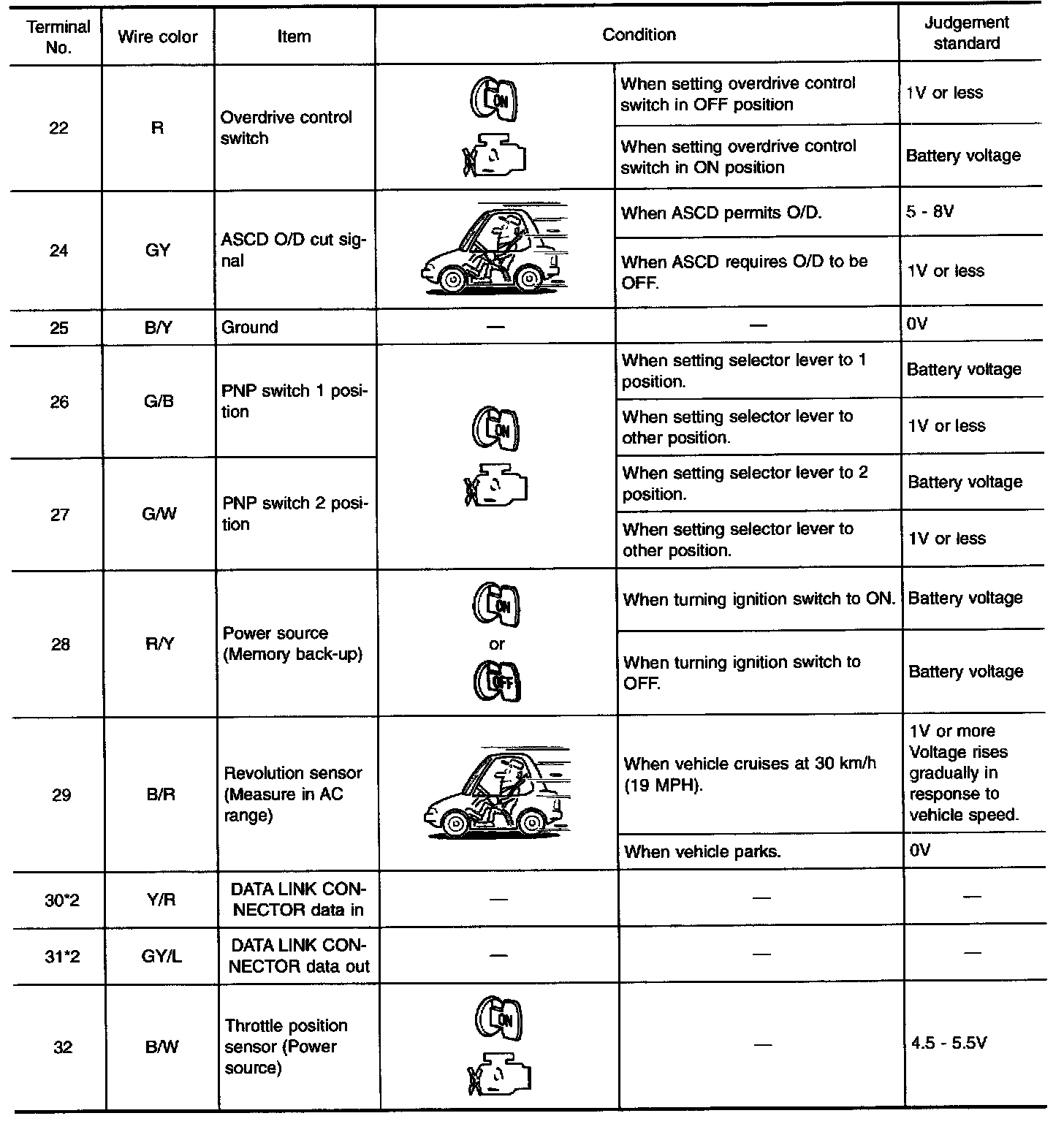

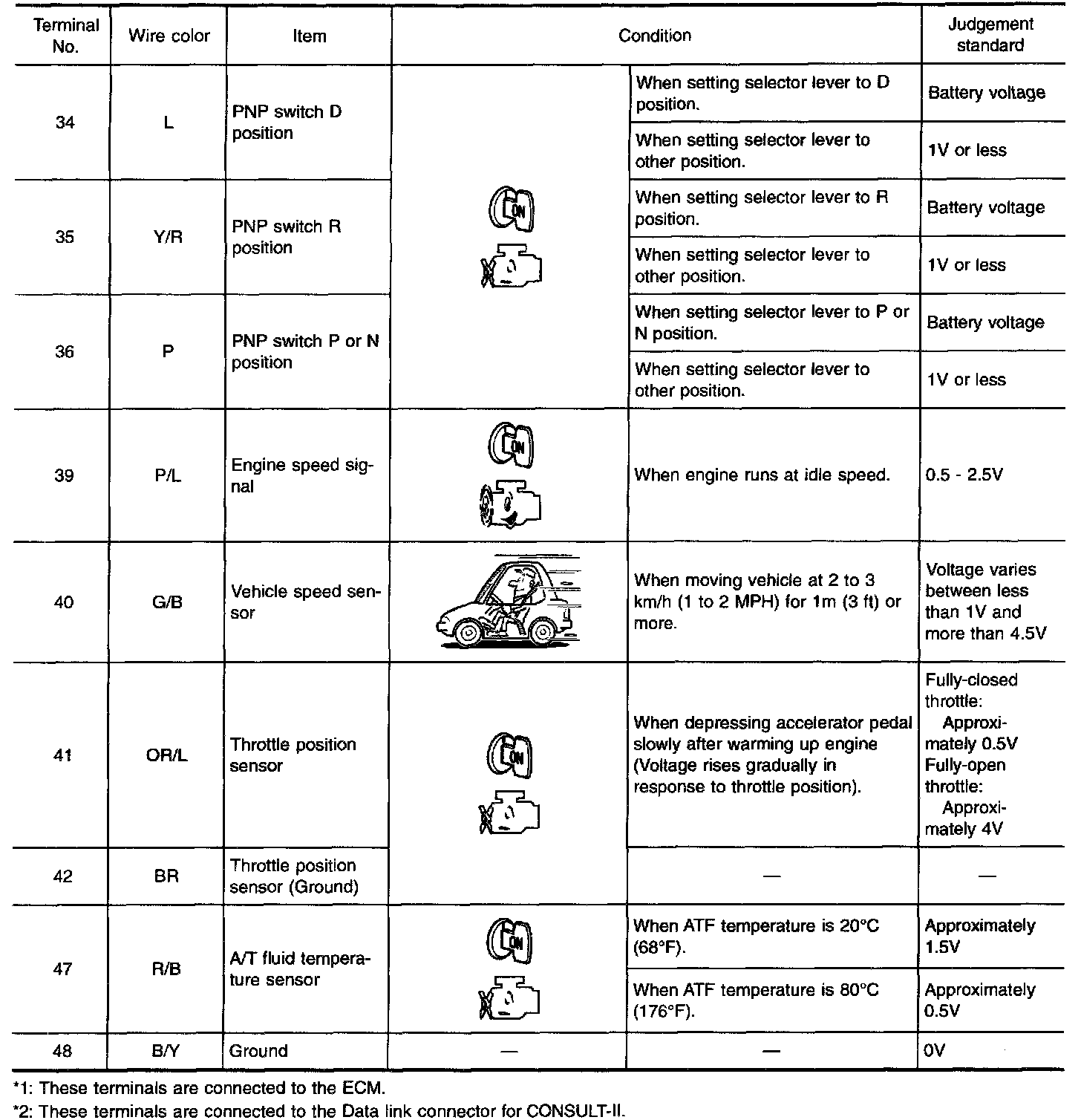

TCM INSPECTION TABLE (Data are reference values.)
