Before VIN #343314

Trouble Diagnosis For Power Supply

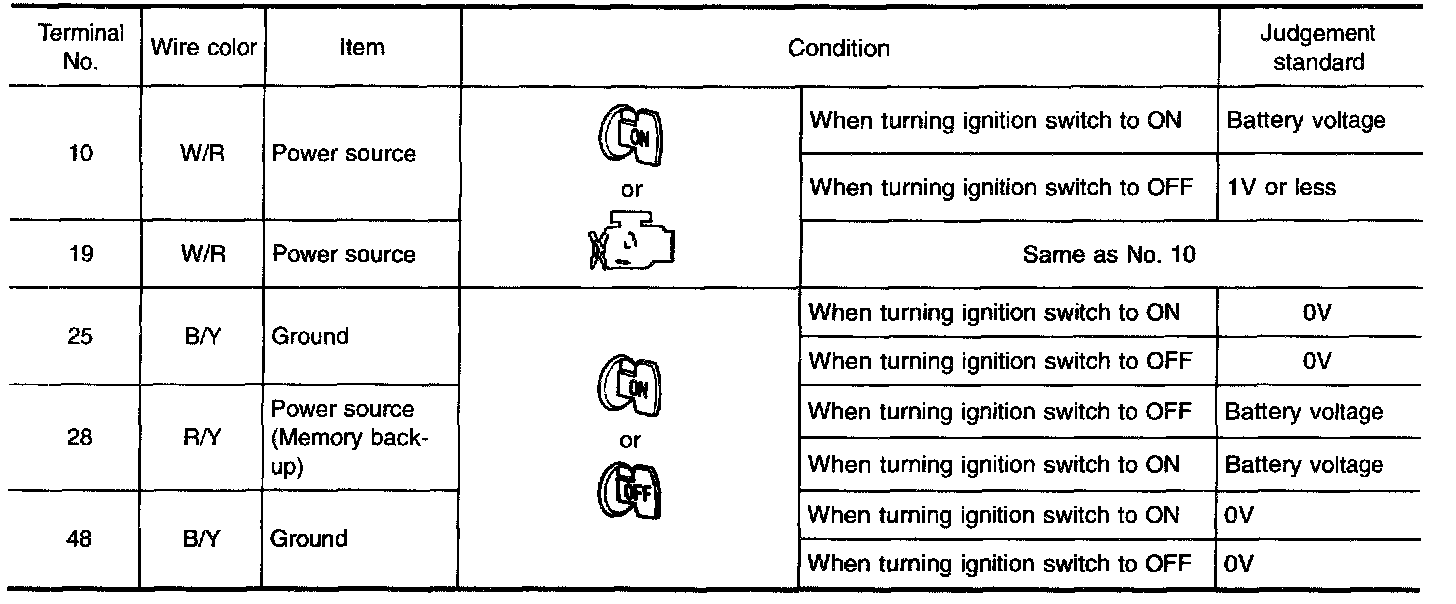

TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.

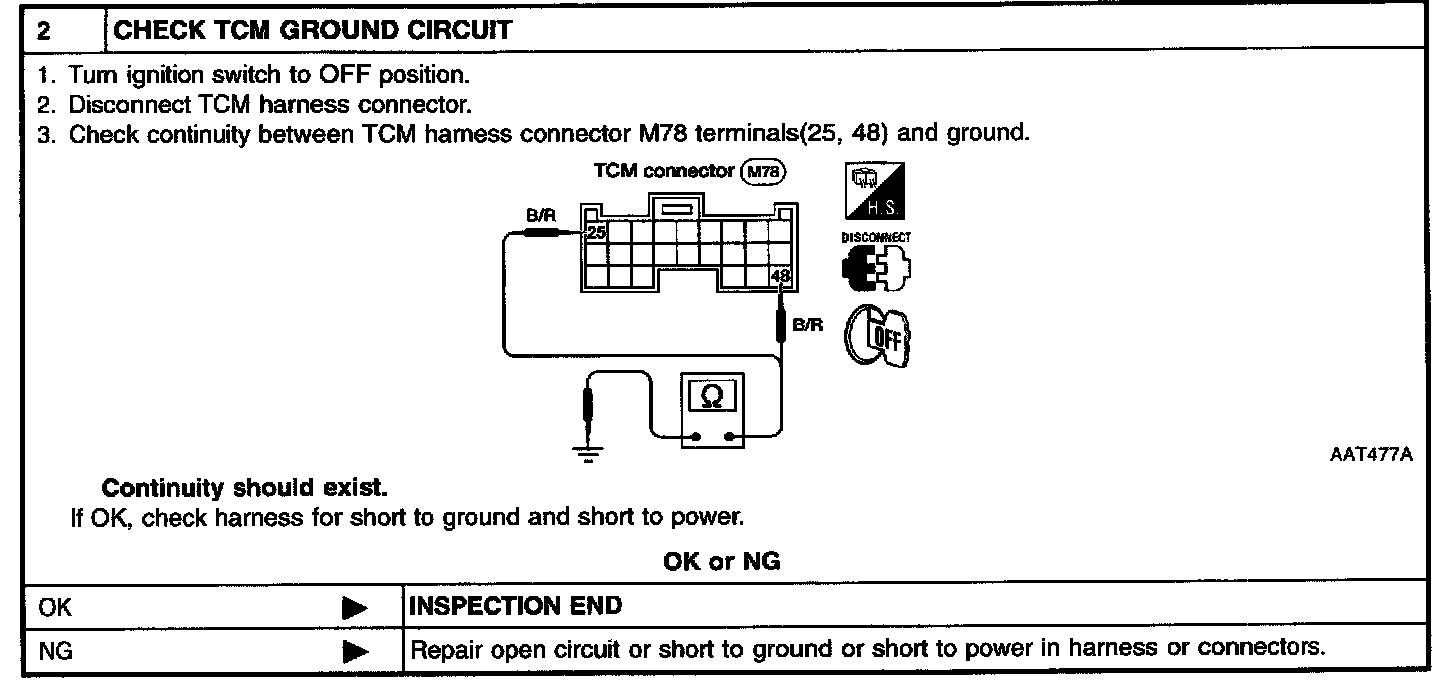

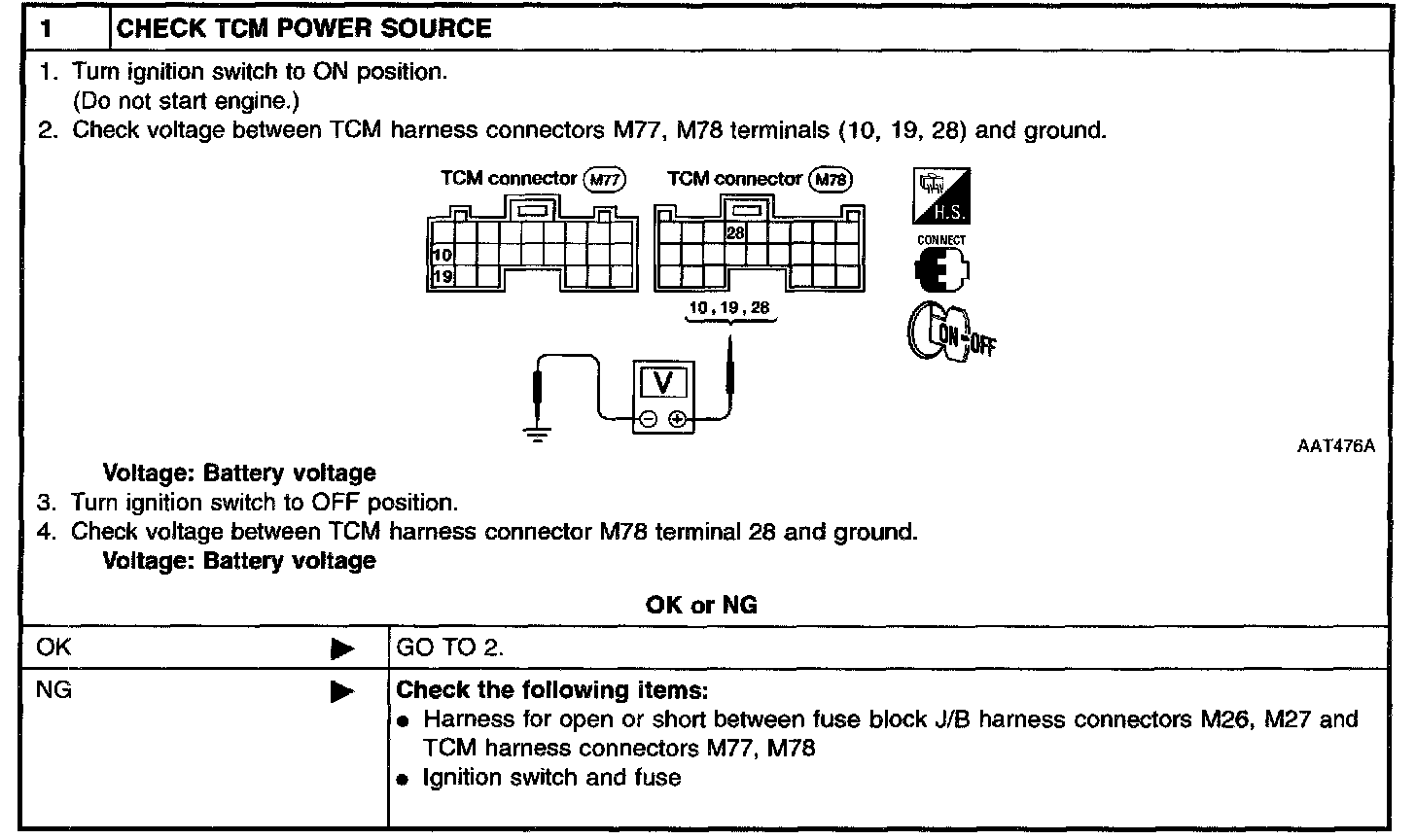

Diagnostic Procedure
