Accelerator Pedal: Adjustments

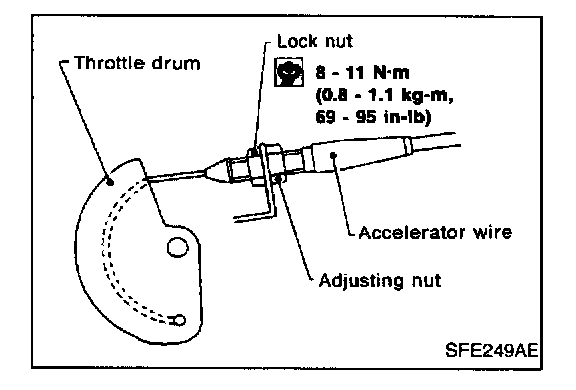

Adjusting Accelerator Wire




1. Loosen look nut, and tighten adjusting nut until throttle drum starts to move.
2. From that position, turn back adjusting nut 1.5 to 2 turns, and secure lock nut.
