Nissan-Datsun Truck
>>
2000
>>
Frontier XE Crew Cab 4WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Evaporative Emissions System
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
Vacuum and Vapor Hose Diagrams

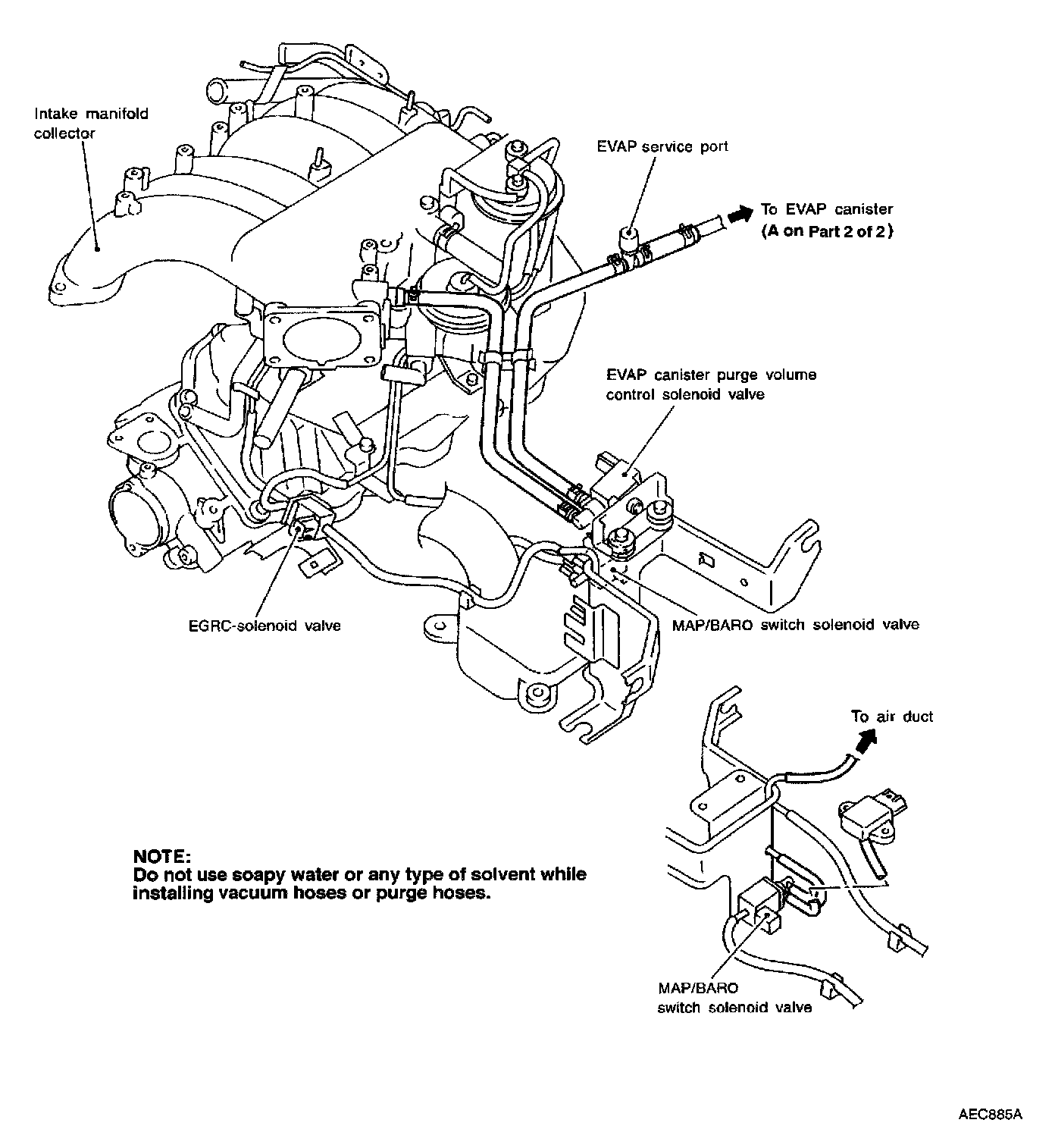

Component And Routing View (Part 1 Of 2):

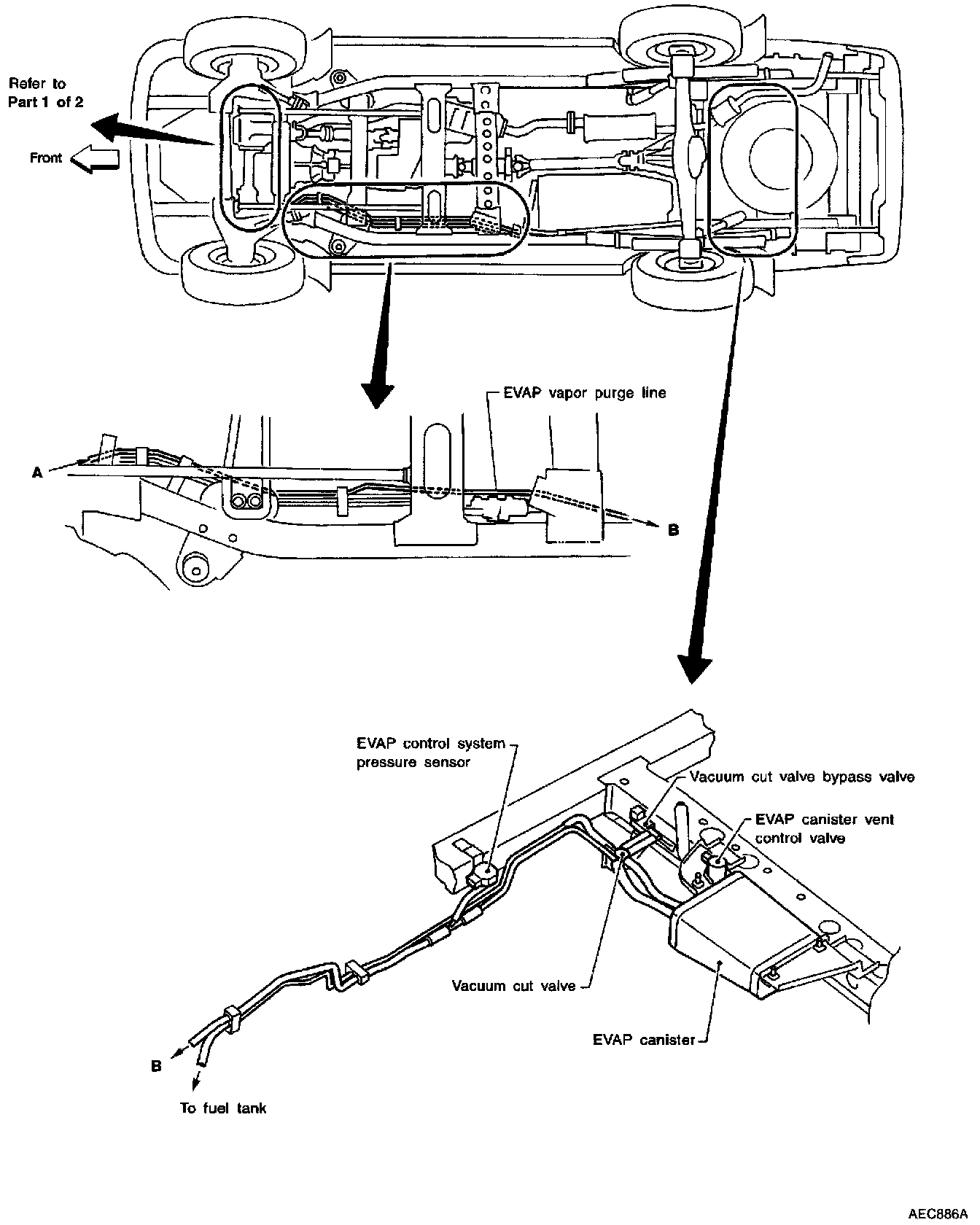

Component And Routing View (Part 2 Of 2):
