Home >> Nissan-Datsun Truck >> 2000 >> Frontier XE Crew Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

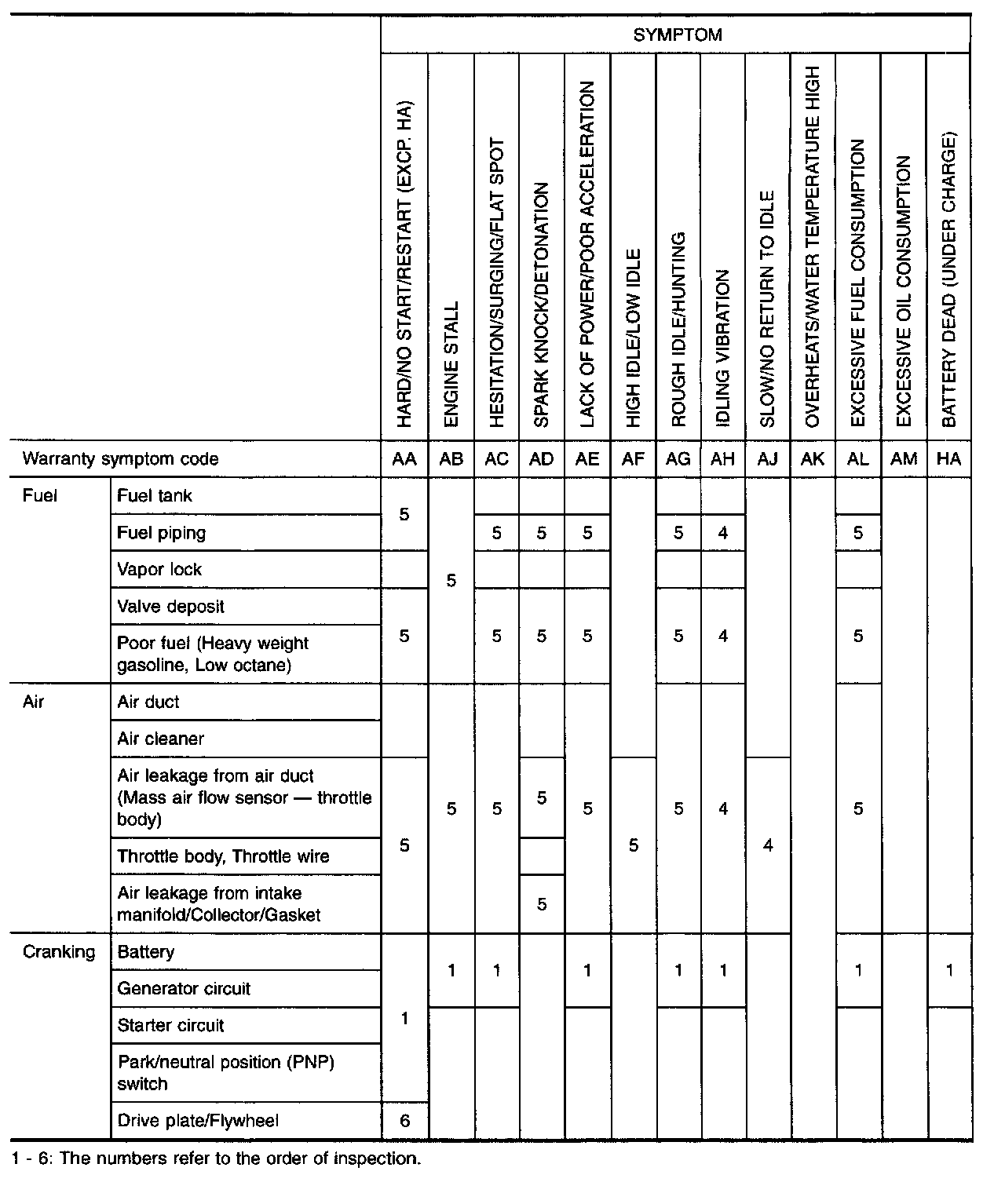

Basic Engine Control System (Part 1 Of 2):

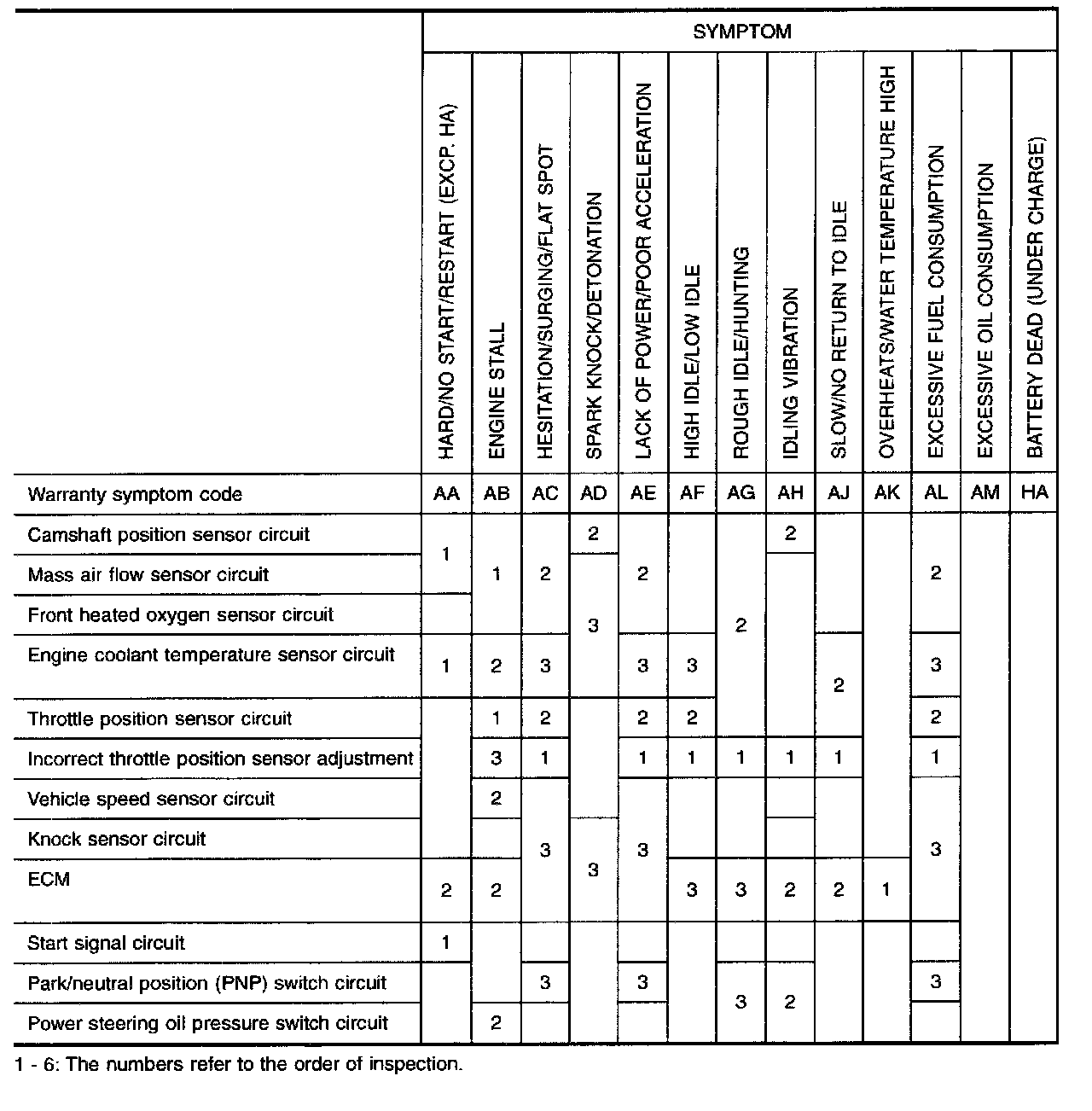

Basic Engine Control System (Part 2 Of 2):

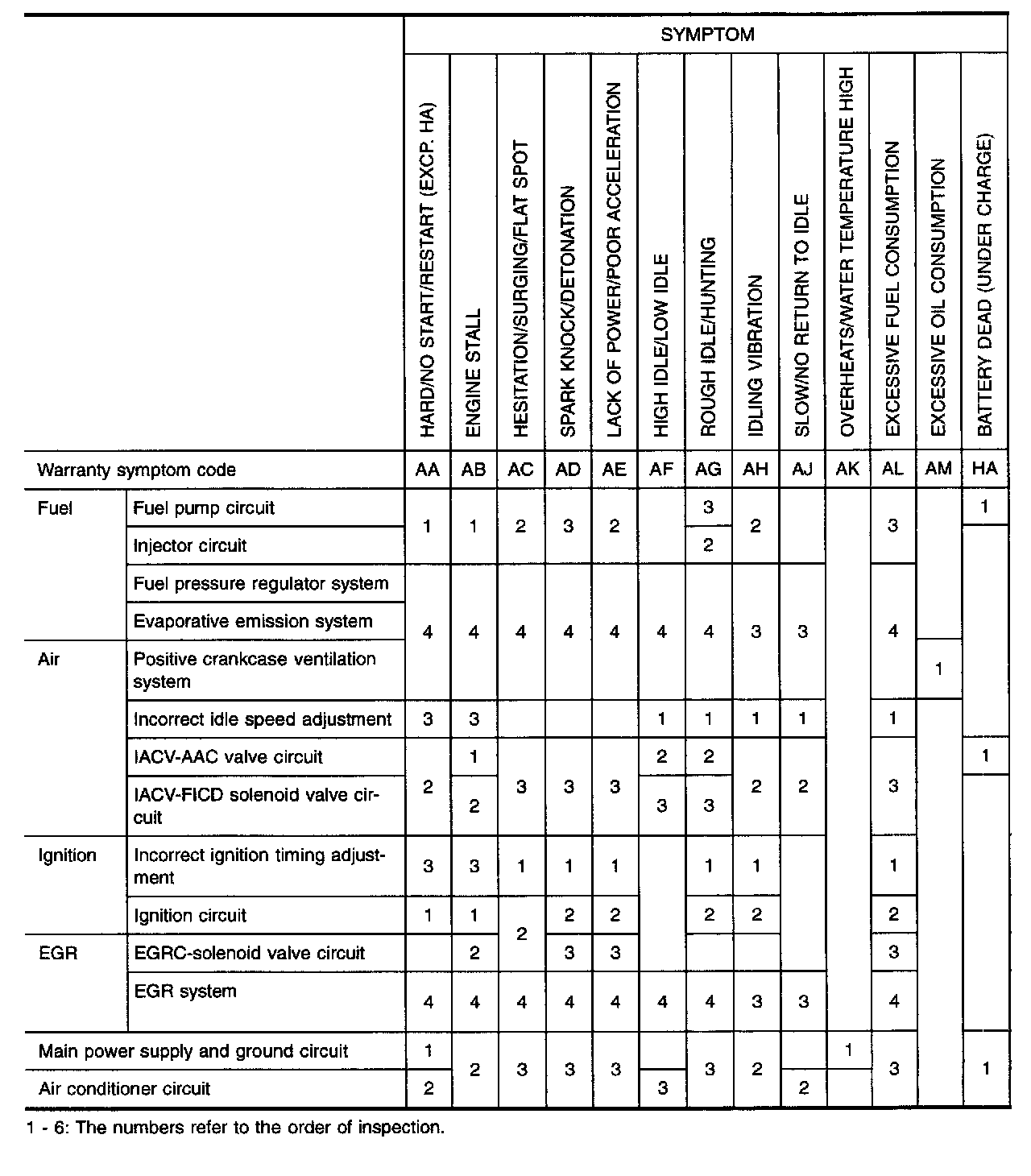

Engine Mechanical and Others (Part 1 Of 2):

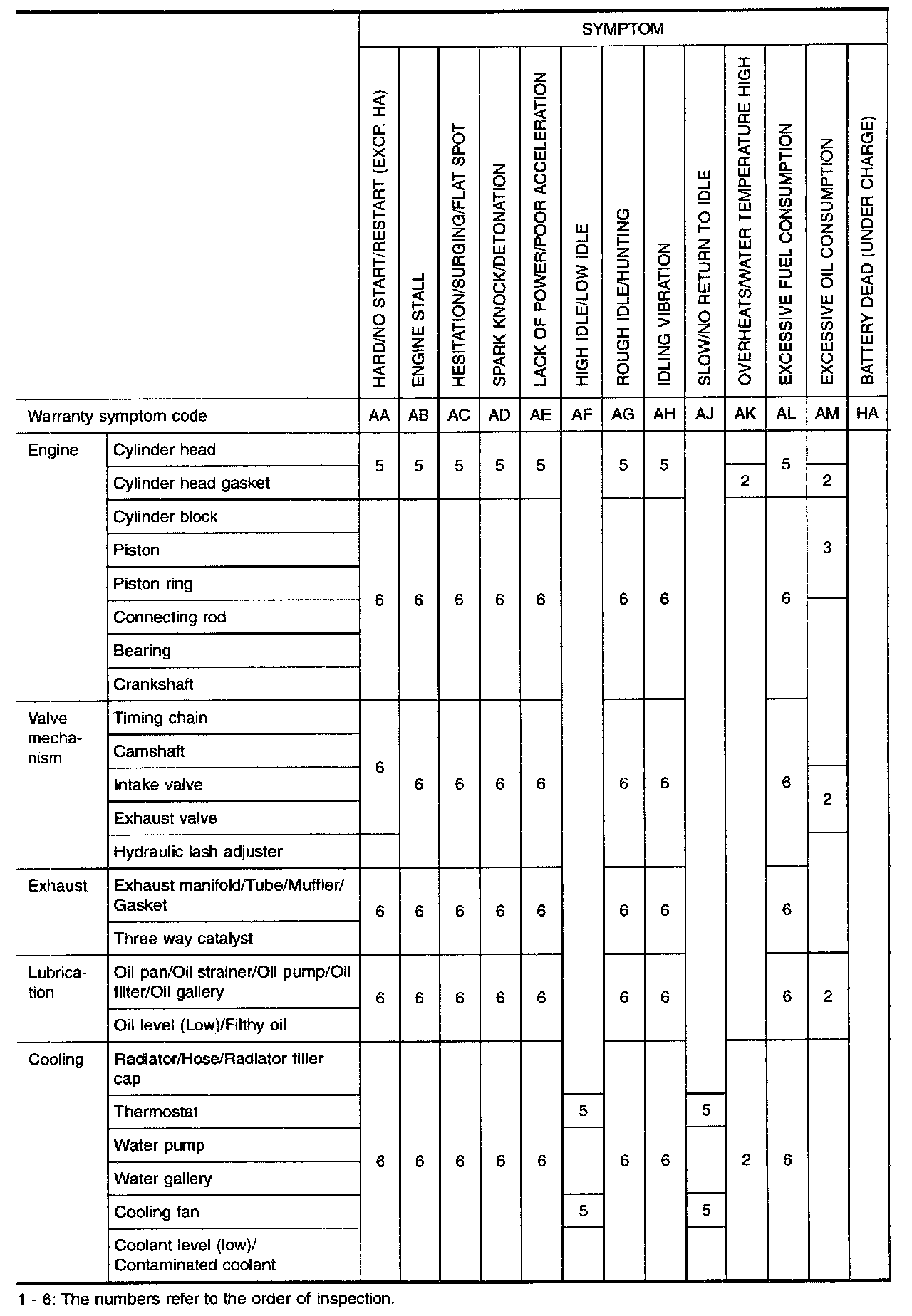

Engine Mechanical and Others (Part 2 Of 2):
