Power Supply Testing

Main Power Supply and Ground Circuit

EC-MAIN-01:

EC-MAIN-01 - Connectors View:

WIRING DIAGRAM

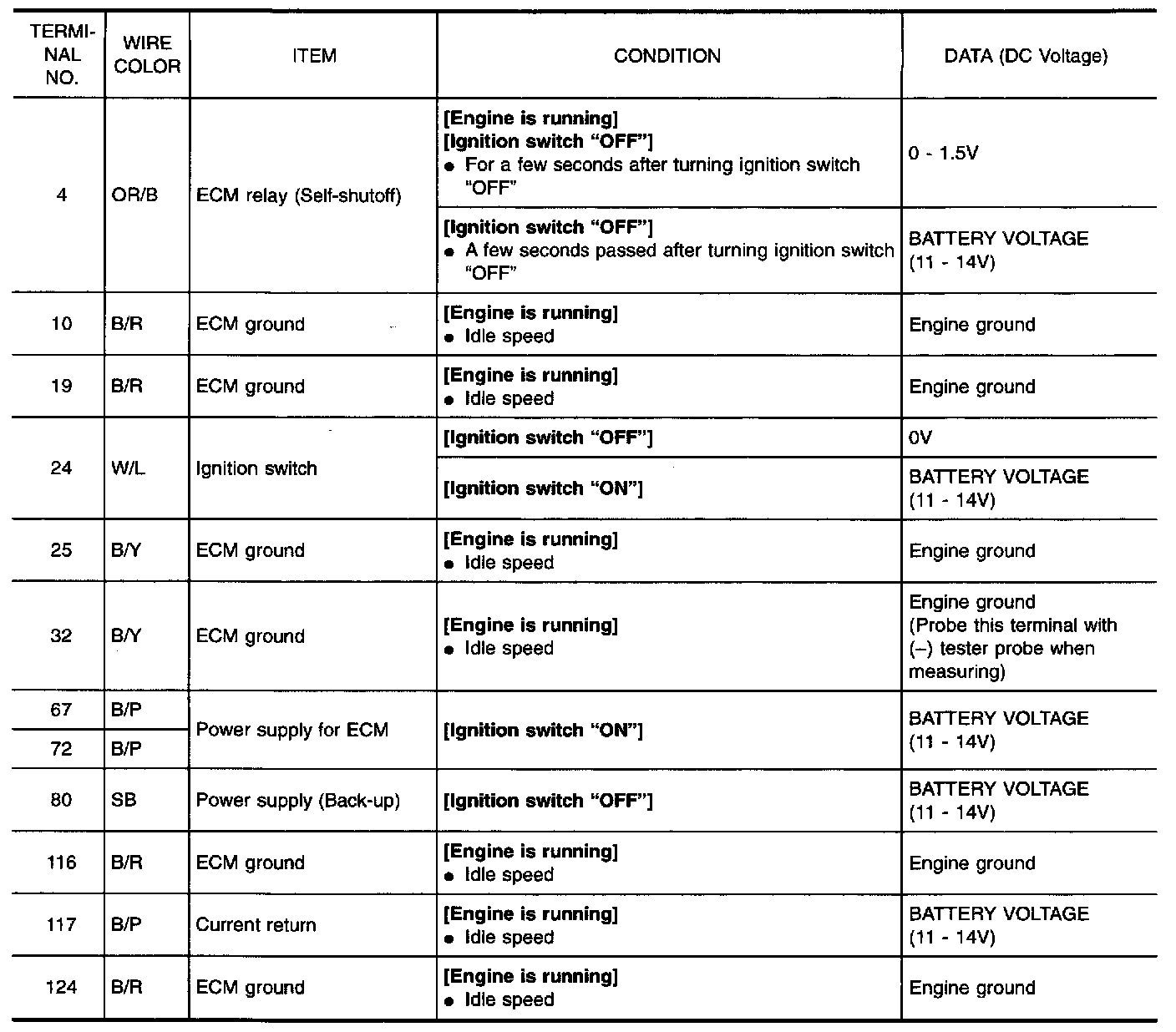

ECM TERMINALS AND REFERENCE VALUE
Specification data are reference values and are measured between each terminal and 32 (ECM ground).

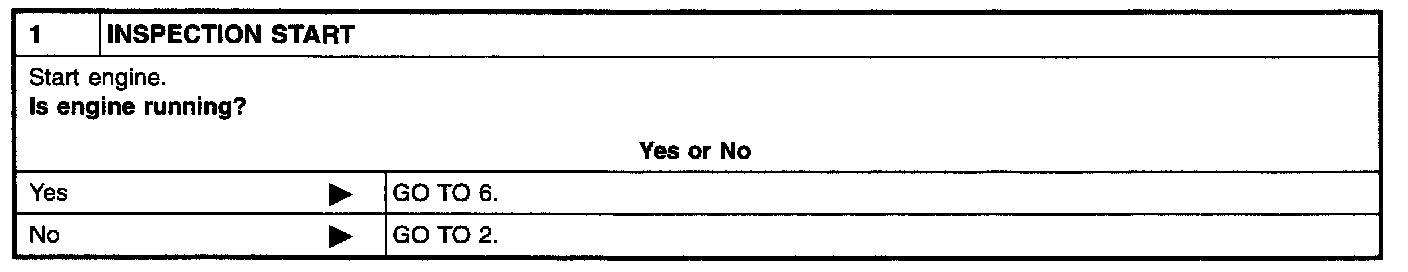

Step 1:

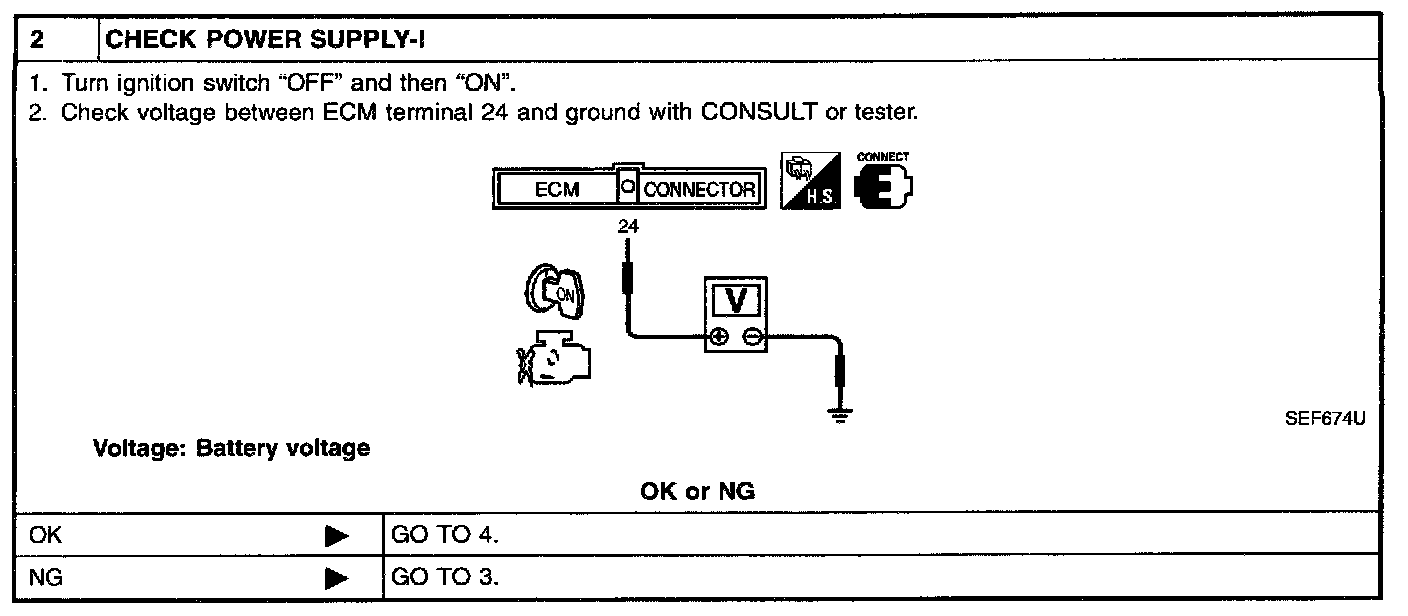

Step 2:

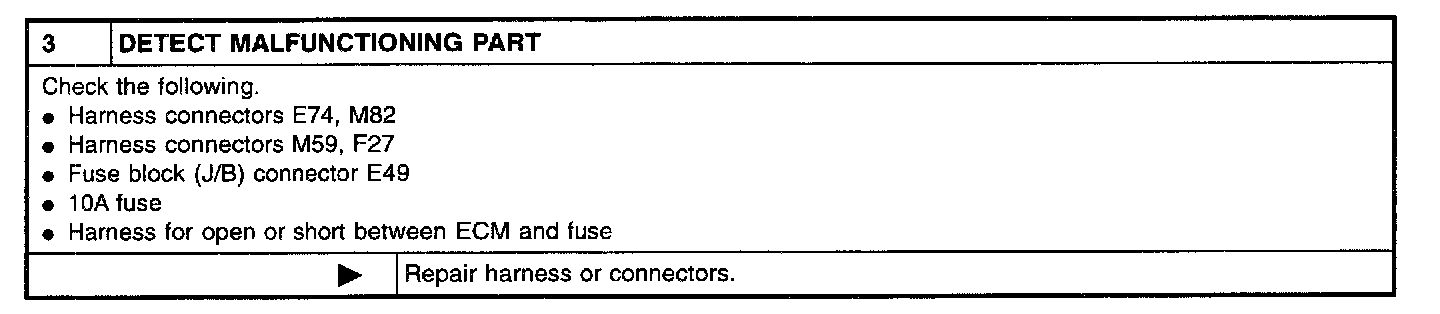

Step 3:

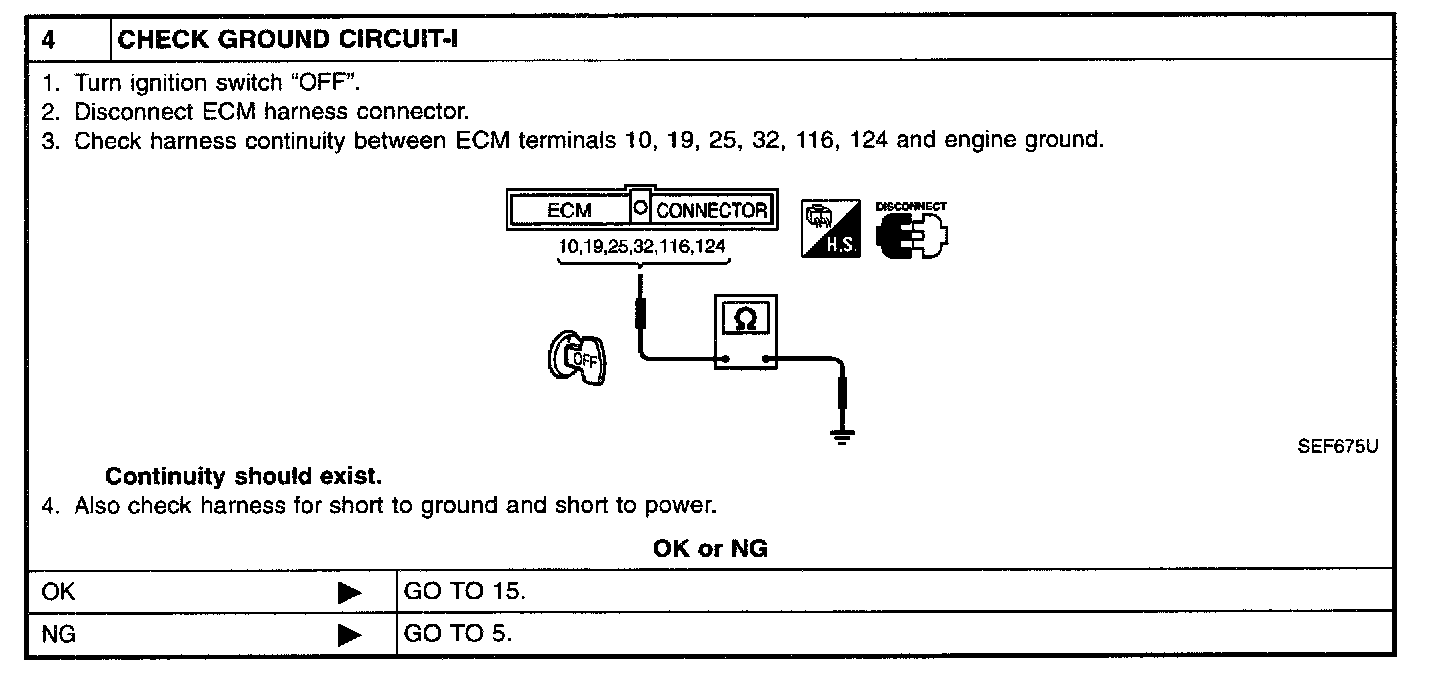

Step 4:

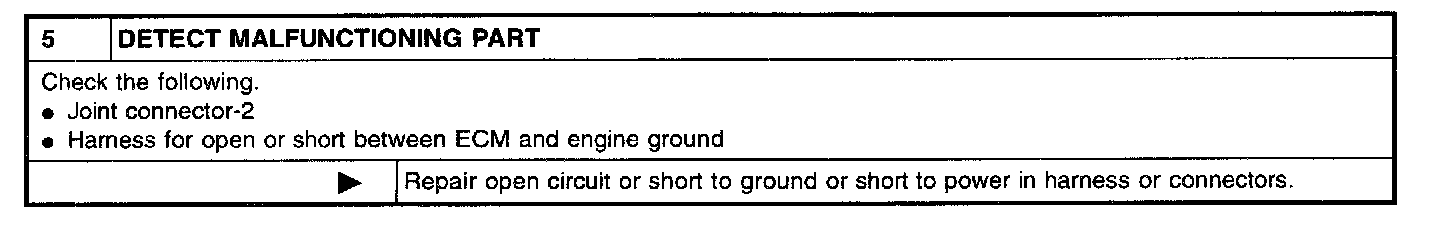

Step 5:

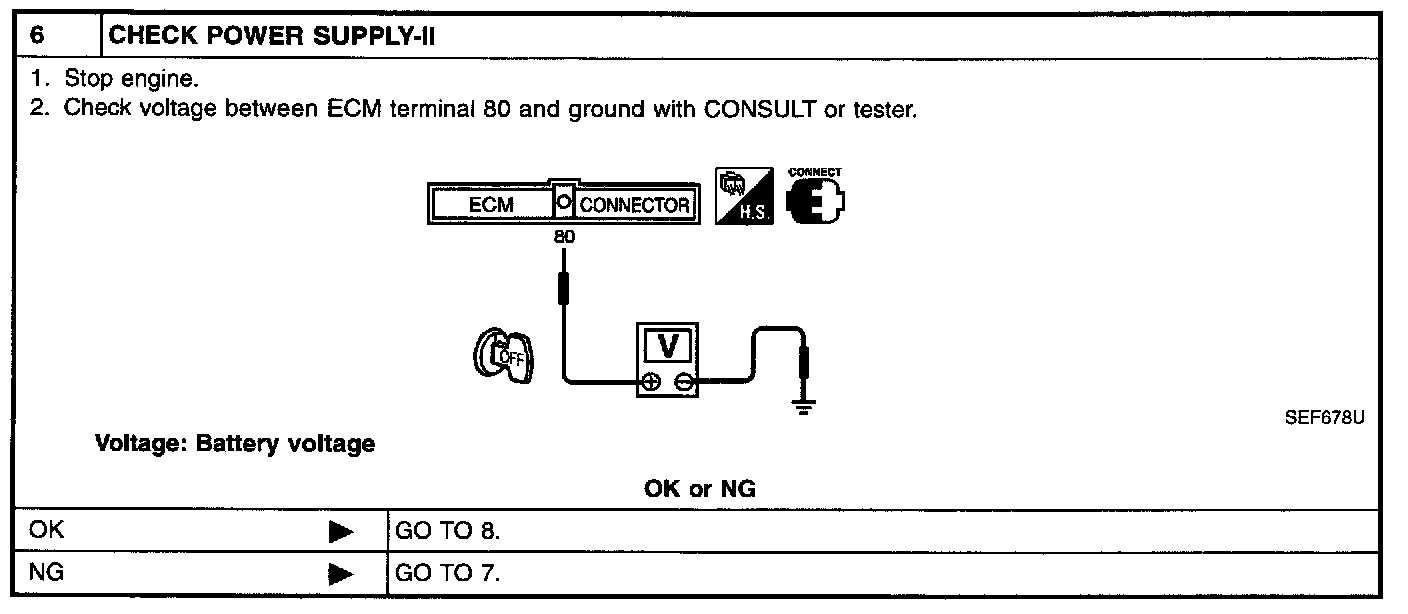

Step 6:

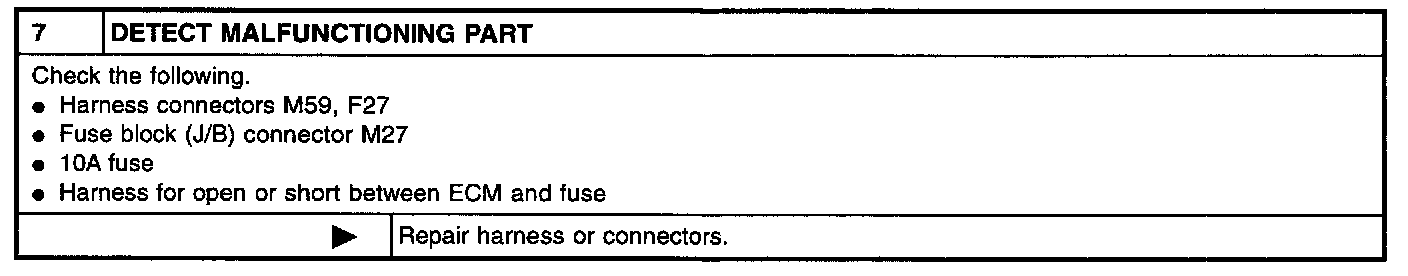

Step 7:

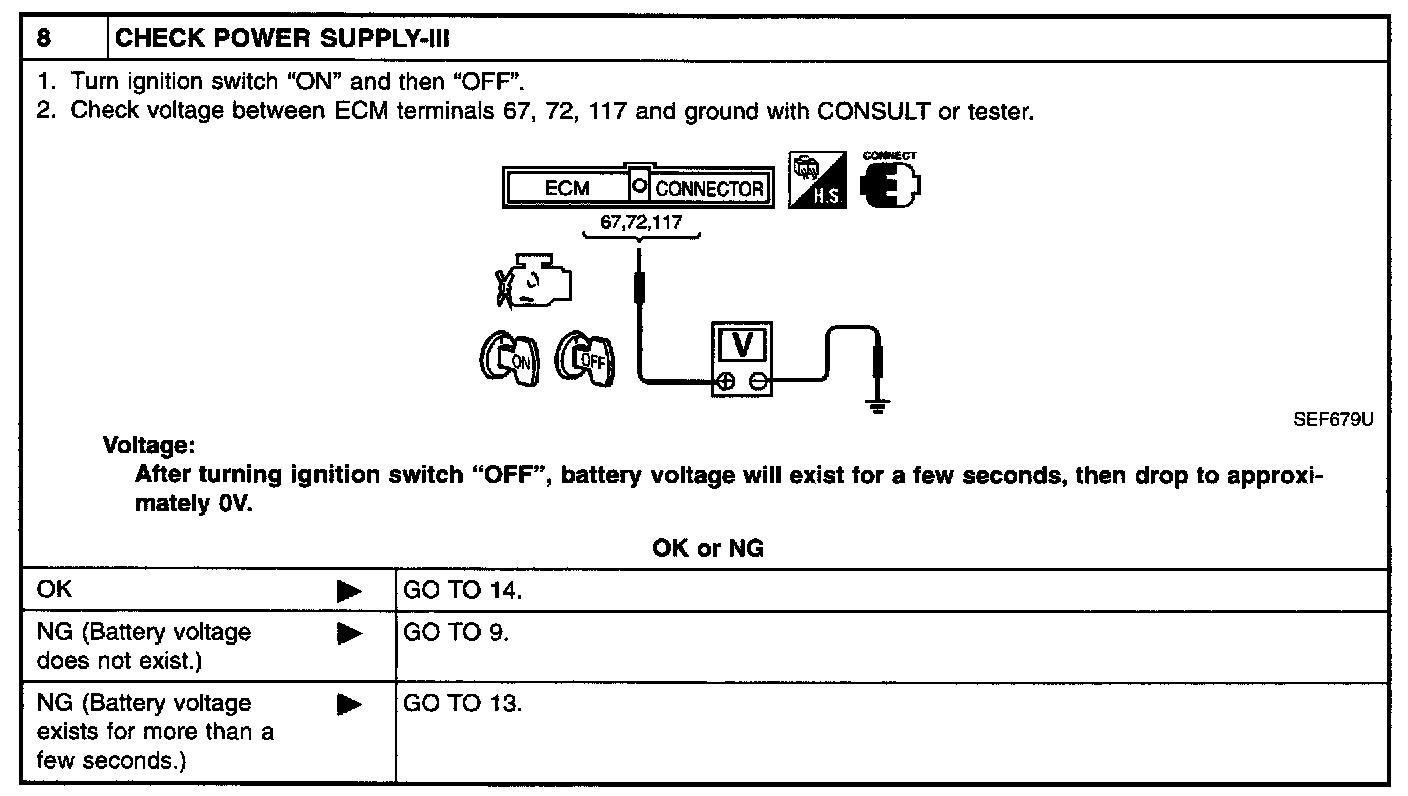

Step 8:

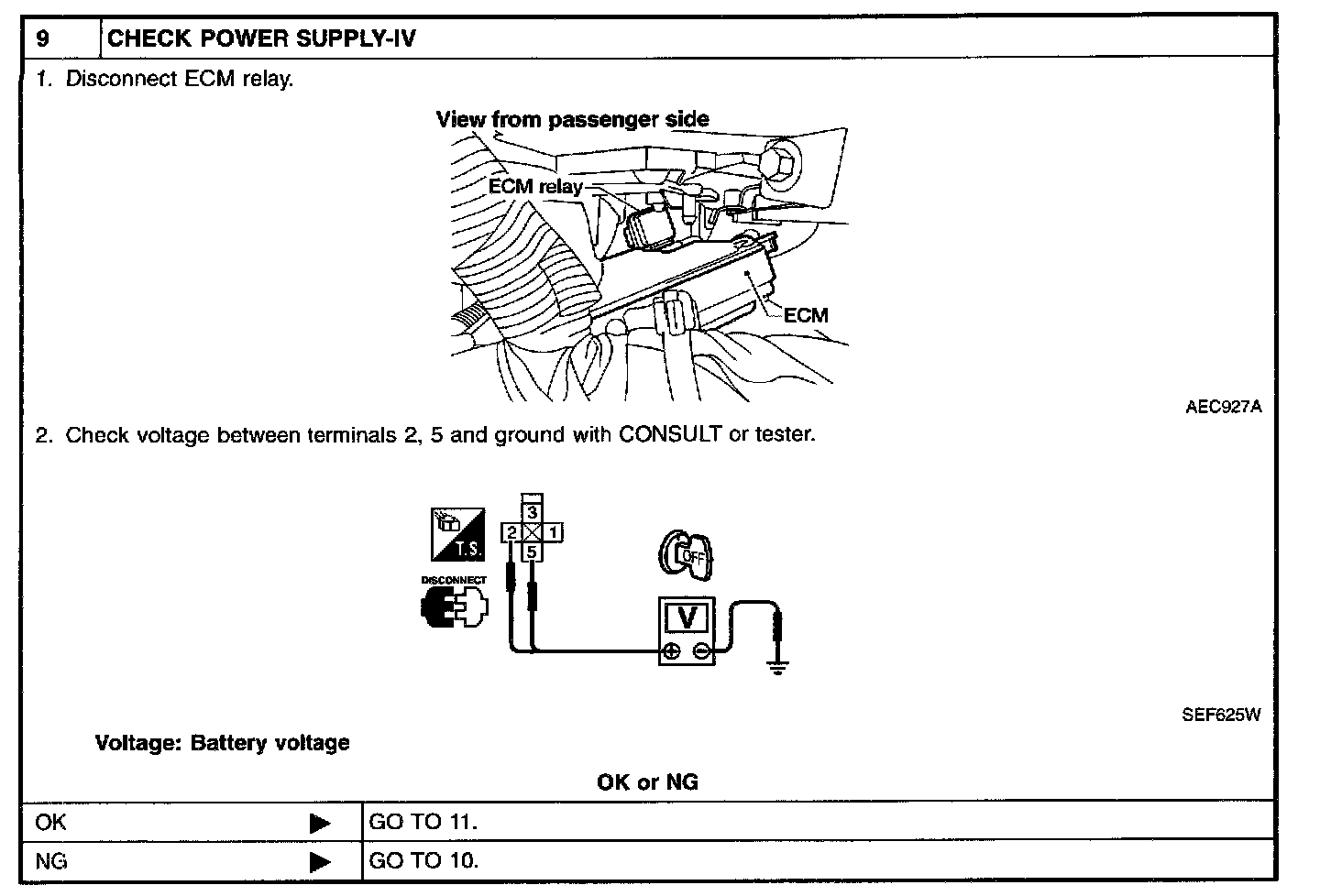

Step 9:

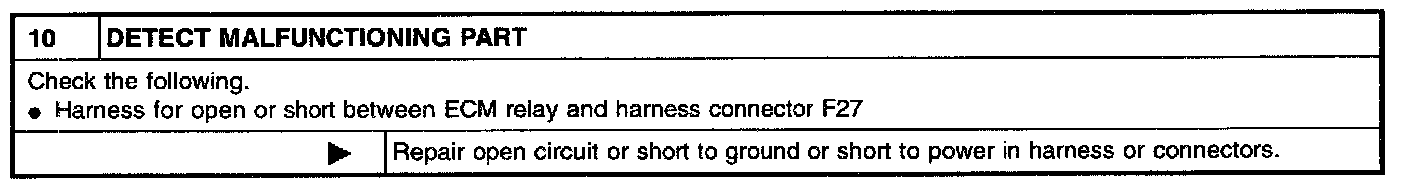

Step 10:

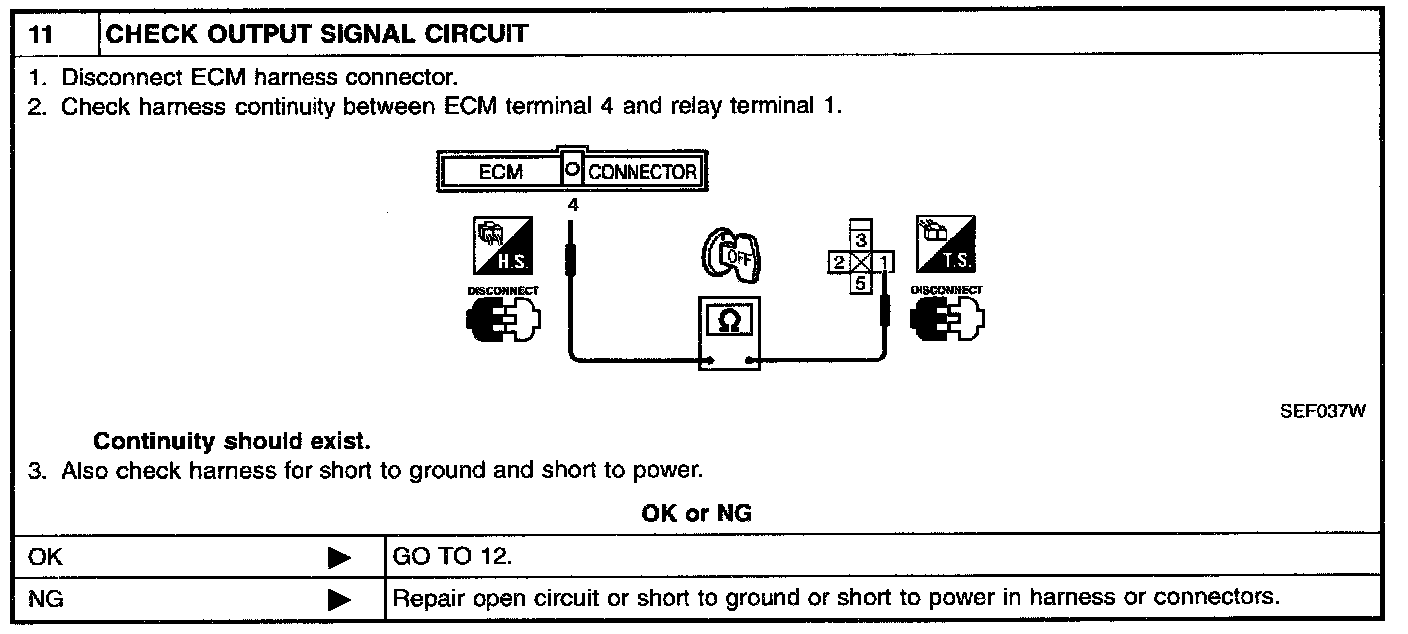

Step 11:

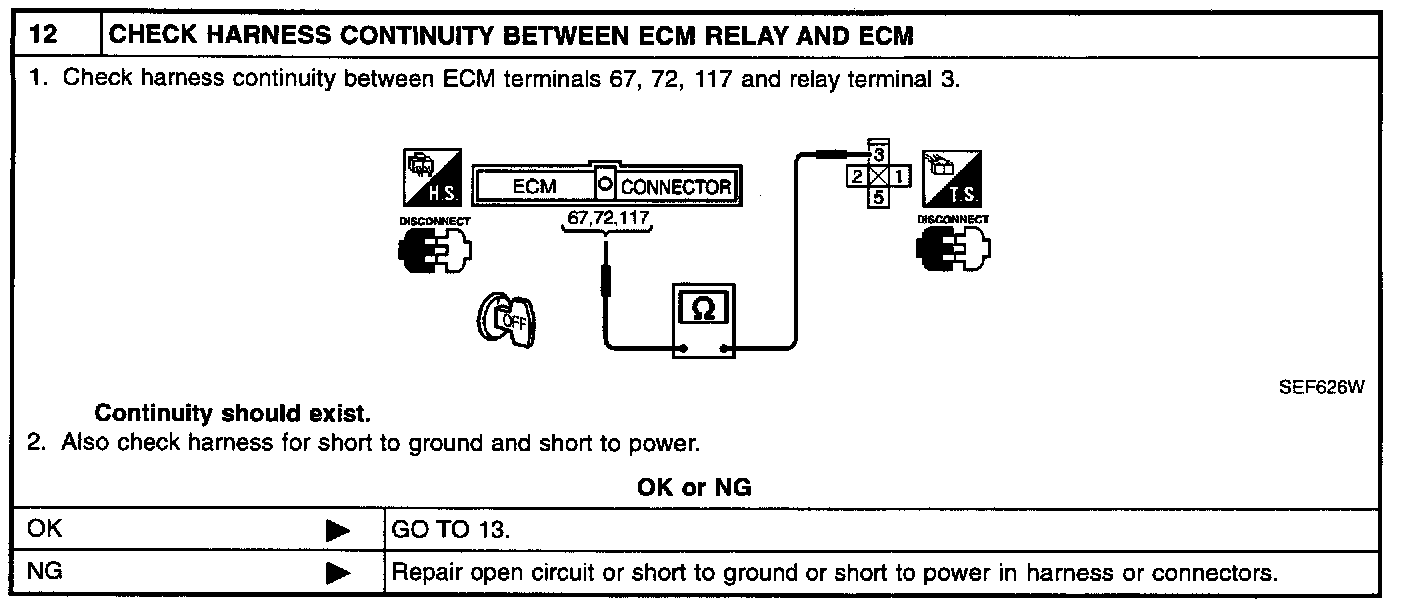

Step 12:

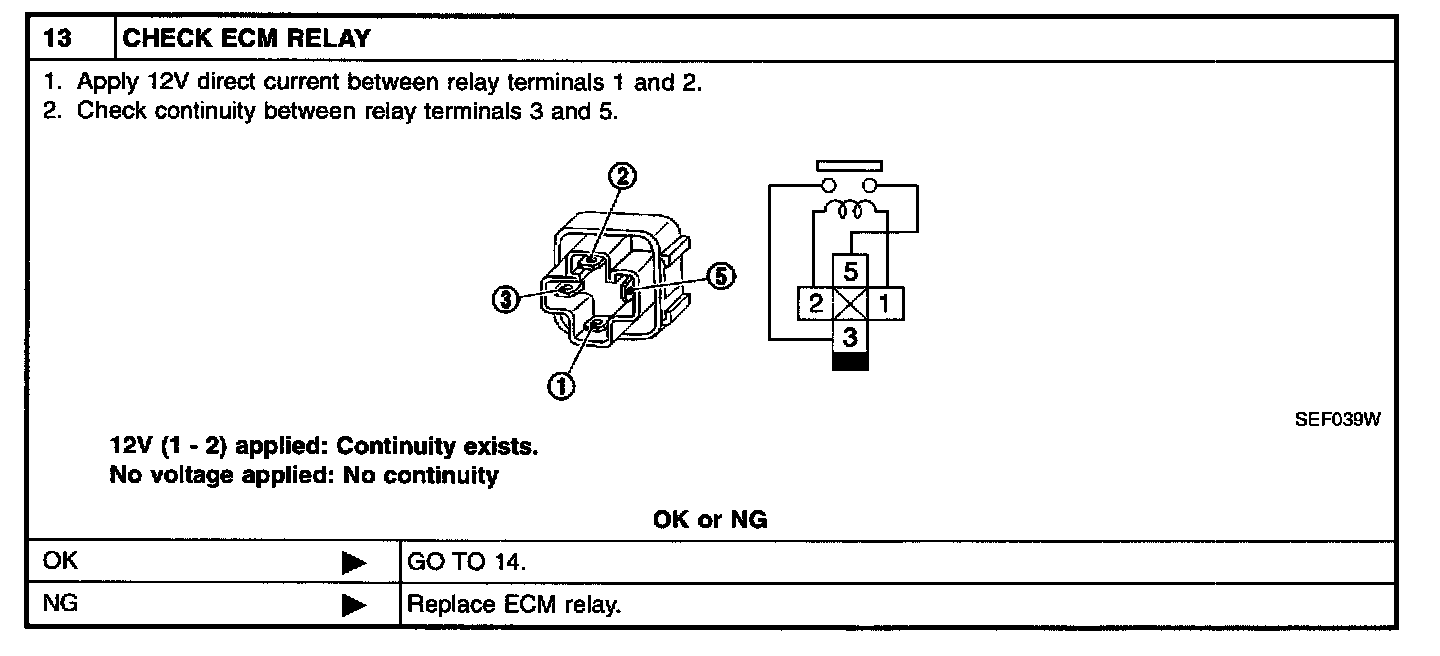

Step 13:

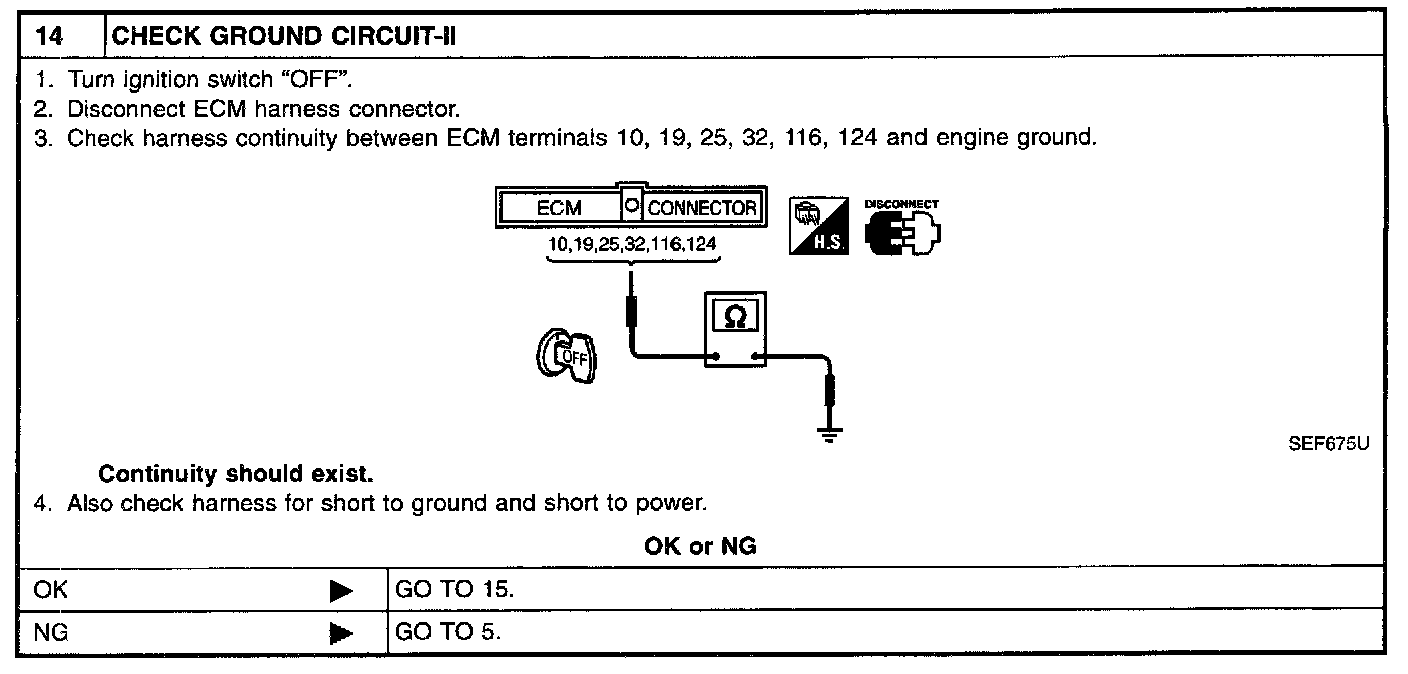

Step 14:

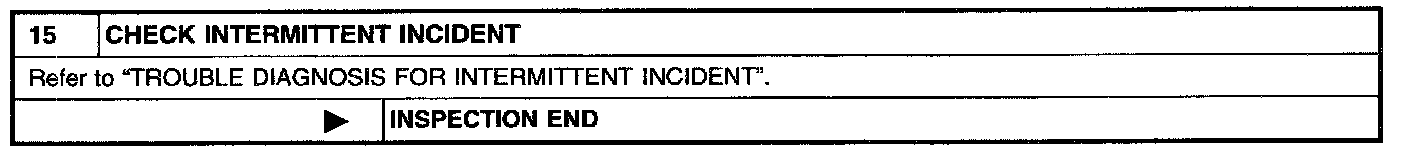

Step 15:

DIAGNOSTIC PROCEDURE
