Manual Locking

REMOVAL AND INSTALLATION

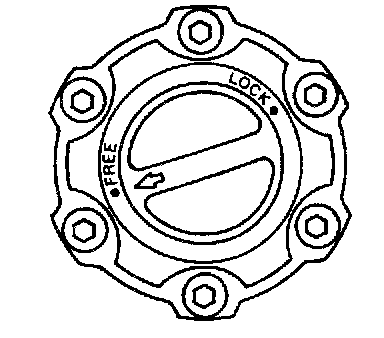

1. Set knob of manual-lock free-running hub in the FREE position.
2. Remove manual-lock free-running hub.
3. When installing manual-lock free-running hub, make sure the hub is in the FREE position.
Apply multi-purpose grease to the parts shown in the illustration.
4. Check operation of manual-lock free-running hub after installation.

INSPECTION
- Check that the knob moves smoothly and freely.
- Check that the clutch moves smoothly in the body.
