Beginning With VIN #343314

REMOVAL AND INSTALLATION
1. Set auto-lock free-running hub in the FREE position.





2. Remove auto-lock free-running hub assembly.

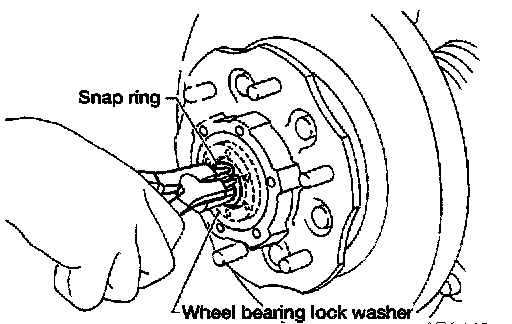

3. Remove snap ring.
4. Remove spindle washer and fixed cam assembly.
5. Install fixed cam assembly.
Be sure to align the tabs of the fixed cam assembly to the notches of the knuckle.
6. Place the spindle washer and then the snap ring over the axle shaft and position them between between the 2 locking grooves.
7. While supporting the axle shaft behind the knuckle, use an appropriate sized deep socket to securely seat the snap ring into the inner locking groove.

CAUTION: Visually verify that the snap ring is fully seated into the locking groove.

8. After installing auto-lock free-running hub, check operation.
During installation, apply recommended grease to the parts shown in the first illustration.
