Before VIN #343314

REMOVAL AND INSTALLATION
1. Set auto-lock free-running hub in the FREE position.

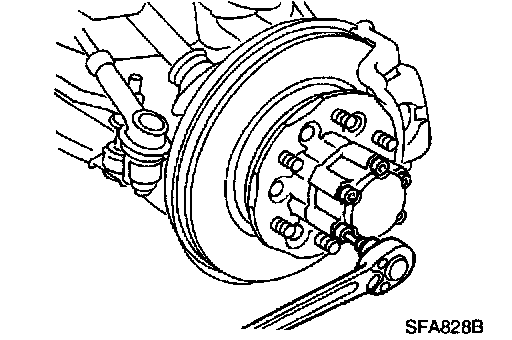

2. Remove auto-lock free-running hub.





3. Remove snap ring.
4. Remove spindle washer and thrust washer.
5. After installing auto-lock free-running hub, check operation.
When installing it, apply recommended grease to the parts shown in the first illustration.
