Beginning With VIN #343314

DISASSEMBLY

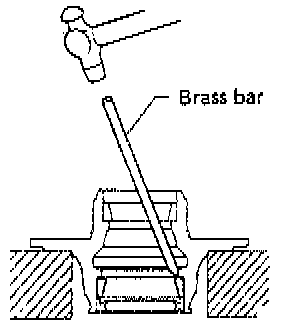

- Remove bearing outer races with suitable brass bar.

INSPECTION
Thoroughly clean wheel bearings and wheel hub.

Wheel Bearings
- Make sure wheel bearings roll freely and are free from noise, cracks, pitting and wear.

Wheel Hub
- Check wheel hub for cracks by using a magnetic exploration or dyeing test.

ASSEMBLY

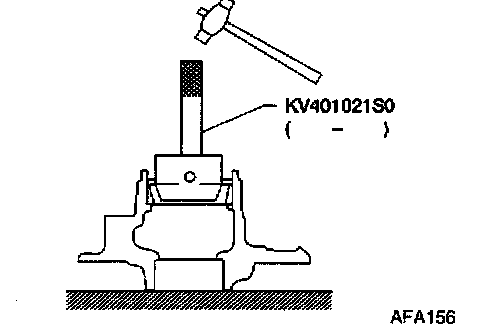

1. Install bearing outer race with Tool until it seats in hub.

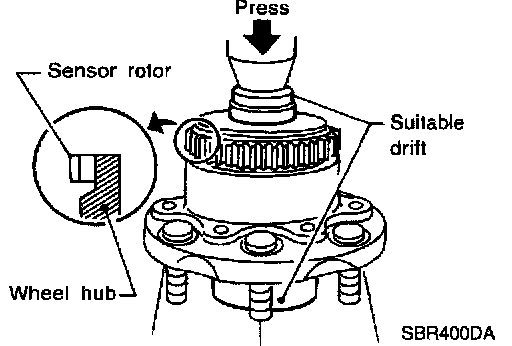

2. Install the sensor rotor using suitable drift and press.
Always replace sensor rotor with new one.
Pay attention to the direction of front sensor rotor as shown in figure.

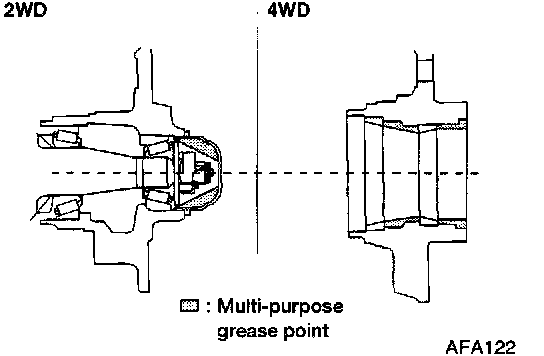

3. Pack multi-purpose grease in wheel hub and hub cap.

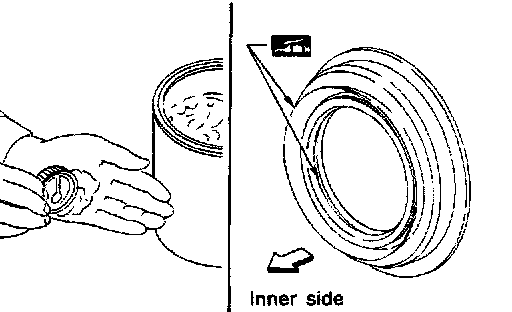

4. Apply multi-purpose grease to each bearing cone.





5. Pack grease seal lip with multi-purpose grease, then install it into wheel hub with suitable drift.
