Beginning With VIN 343314






CAUTION:
- All applicable state or Provincial (in Canada) laws and local laws regarding the towing operation must be obeyed.
- It is necessary to use proper towing equipment to avoid possible damage to the vehicle during towing operation. Towing is in accordance with Towing Procedure Manual at dealer.
- Always attach safety chains before towing.
- When towing, make sure that the transmission, steering system and power train are in good order. If any unit is damaged, dollies must be used.
- Never tow an automatic transmission model from the rear (i.e., backward) with four wheels on the ground as this may cause serious and expensive damage to the transmission.

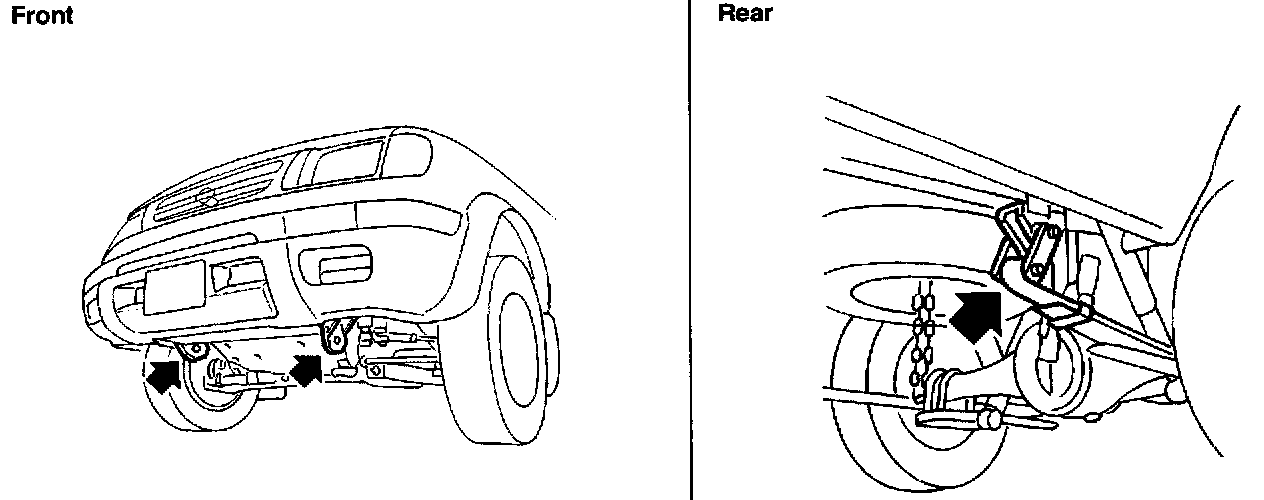

TOWING POINT
Never tow the vehicle using only the towing points. To avoid damaging the vehicle body, use proper towing equipment when towing.




VEHICLE RECOVERY (FREEING A STUCK VEHICLE)
- Tow chains or cables must be attached only to the main structural members of the vehicle.
- Pulling devices should be routed so they do not touch any part of the suspension, steering, brake or cooling systems
- Always pull the cable straight out from the front or rear of the vehicle. Never pull the vehicle at a sideways angle.

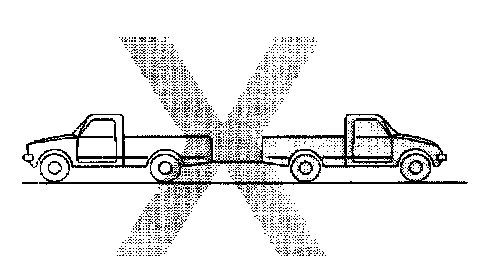

- Pulling devices such as ropes or canvas straps are not recommended for use for vehicle towing or recovery.
